TP-Link TL-SL1226P
The TP-Link TL-SL1226P is a professional-grade unmanaged network switch, featuring 24×10/100 Mbps PoE+ ports, 2× Gigabit RJ45 ports, and 2 combo Gigabit SFP slots, designed for reliable plug-and-play deployment.
التطبيقات الرئيسية

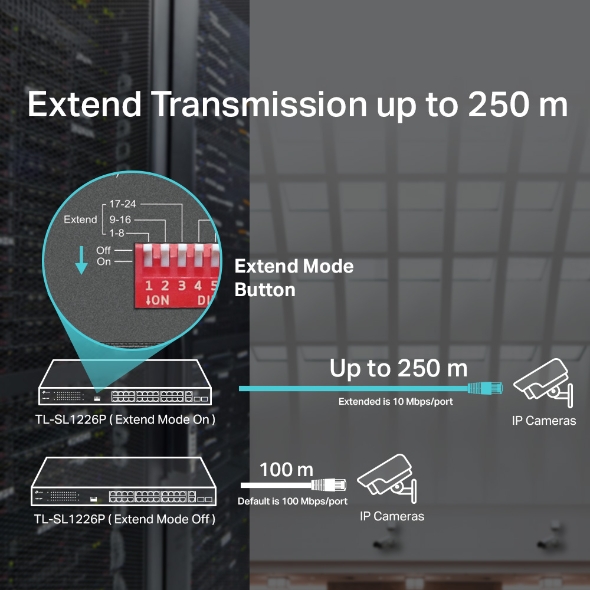

- IP surveillance systems with long-reach capability via Extend Mode up to 250 m.
- Network expansion in offices, dormitories, residential buildings, and hotels requiring PoE.
- Powering and connecting access points, IP phones, and printers without additional adapters.
تحذيرات الاستخدام
- Ensure total PoE power doesn’t exceed 250 W to avoid power cutoff.
- Extend Mode reduces data speed to 10 Mbps—check compatibility and requirements.
- Use certified cabling (UTP Cat5e or above) for optimal performance.
- Note that dual fans may generate 38–43 dBA noise, so consider ventilation in quiet environments.
المواصفات الفنية
| الميزة | التفاصيل |
|---|---|
| المنافذ | 24× PoE+ 10/100 Mbps, 2× Gigabit RJ45, 2× Combo Gigabit SFP |
| لكل منفذ 54 فولت تيار مستمر، أقصى. 36 واط | 802.3af/at, up to 30 W per port, total budget 250 W |
| وضع التوسيع | Up to 250 m (10 Mbps data rate) |
| وضع الأولوية | Ports 1–8 prioritized |
| وضع العزل | Port traffic separation |
| استعادة تلقائية لـ PoE | Auto reboot for unresponsive PD devices |
| سعة التبديل | 8.8 Gbps; Forwarding Rate: 6.54 Mpps |
| الأبعاد | 440×180×44 mm |
| استهلاك الطاقة | 294 W (full PoE load) |
| Heat Dissipation | ~1001 BTU/h |
| 305 × 160.5 × 92.5 | 38–43.5 dBA @50 cm |
| Operating Temp. | 0–50 ℃ |
