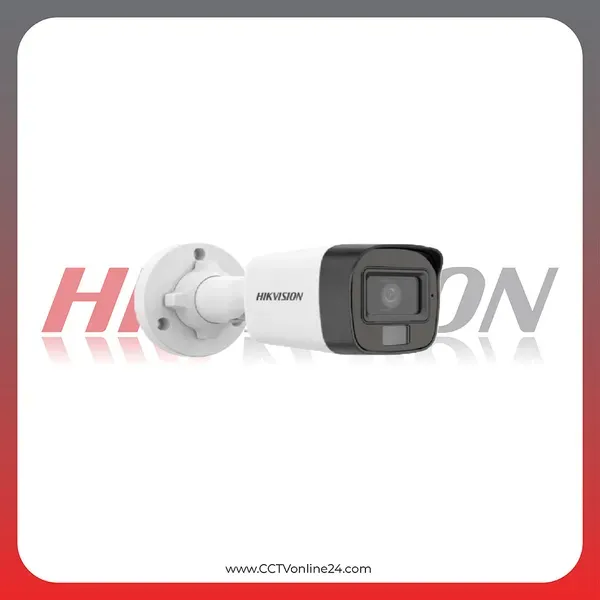

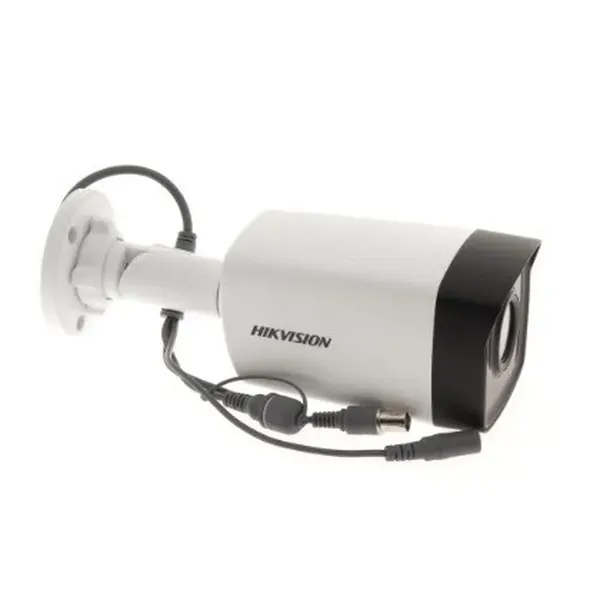

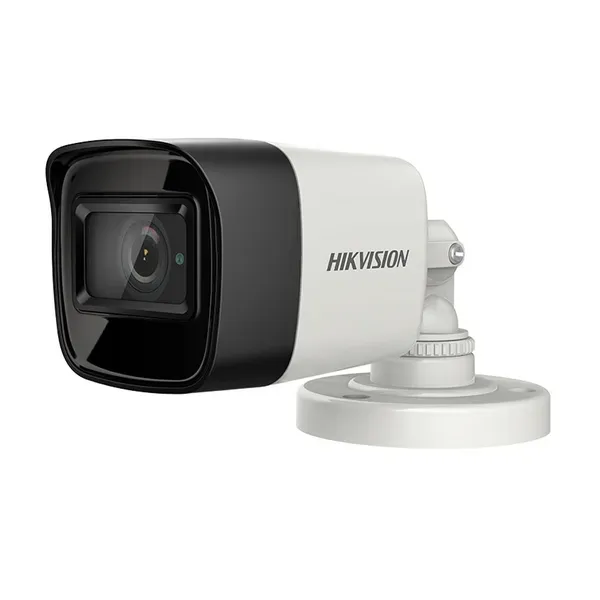

2MP Smart Hybrid Light Audio Fixed Mini Bullet Camera
The Hikvision DS-2CE16D0T-LPFS is an advanced outdoor surveillance camera offering 2MP high-definition imaging (1920×1080) with a fixed lens of 2.8 mm or 3.6 mm. It features smart hybrid lighting, combining infrared (up to 25 meters) and white light (up to 20 meters) for clear night vision in various lighting conditions.
Equipped with a built-in microphone, the camera supports audio transmission over a single coaxial cable. Its compatibility with four signal types (TVI/AHD/CVI/CVBS) ensures seamless integration with most surveillance systems. The IP67-rated housing guarantees reliable performance in outdoor environments.
Key Applications:
- Monitoring entrances and exits in residential and commercial buildings.
- Enhancing security in public facilities and industrial areas.
- Providing color night vision through smart white light illumination.
Usage Warnings:
- Ensure the camera is powered with 12VDC ±25%.
- Avoid exposing the camera to conditions beyond the operating temperature range (-40°C to 60°C).
- Use high-quality coaxial cables to maintain clear audio and video transmission.
Technical Specifications:
| Specification | Details |
|---|---|
| Sensor | 2MP CMOS |
| Max Resolution | 1920 × 1080 |
| Lens | 2.8 mm or 3.6 mm |
| Field of View | 2.8 mm: 101° (H), 56° (V), 118° (D) 3.6 mm: 78° (H), 42° (V), 92° (D) |
| Supplemental Lighting | IR up to 25 m, White Light up to 20 m |
| Microphone | Built-in, pickup range up to 5 meters |
| Weather Resistance | IP67 |
| Operating Temperature | -40°C to 60°C |
| Weight | Approx. 155 g |
| Power Consumption | Max. 3.3 W |
