Overview

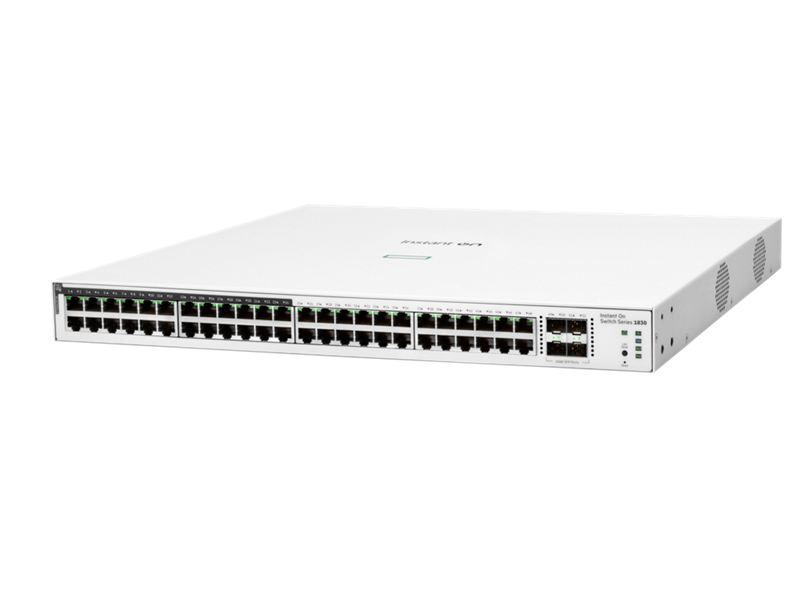

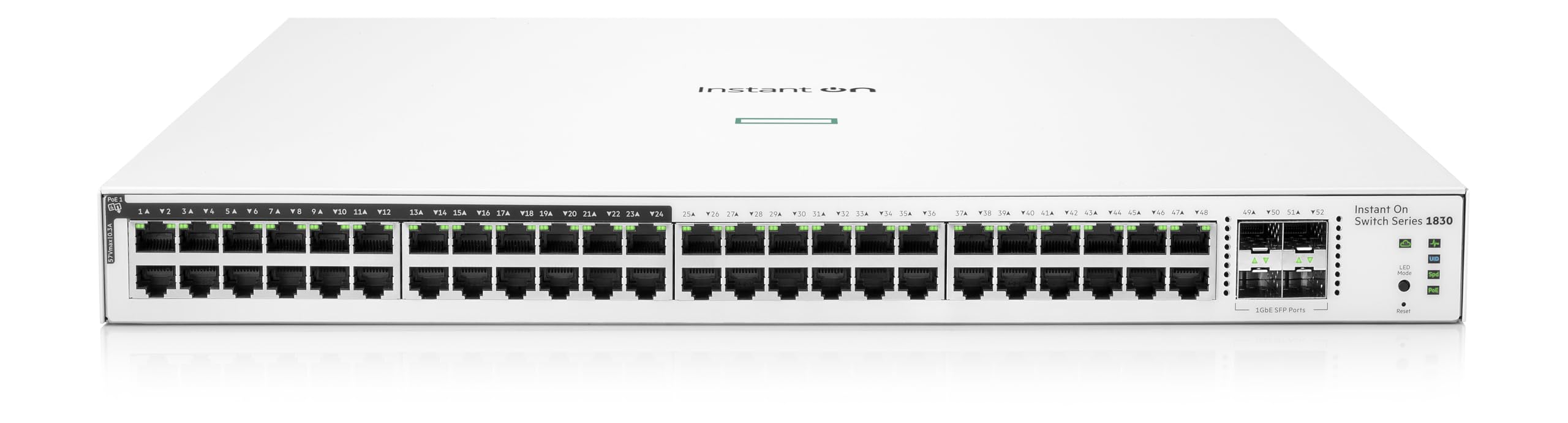

The Aruba Instant On 1830 JL815A is a smart-managed Layer 2 switch designed for small and medium businesses. It features 48 Gigabit Ethernet ports, including 24 Class 4 PoE+ ports with a total power budget of 370W, allowing seamless integration of devices like access points, VoIP phones, and security cameras.
Key Applications
- Powering wireless access points, VoIP phones, and security cameras without separate power sources.
- Easy network management via mobile app, cloud portal, or local web interface.
- Supporting high-performance and reliable data transmission in business environments.
Usage Warnings
- Ensure the total PoE power consumption does not exceed 370W when connecting PoE devices.
- Use only compatible SFP modules to avoid compatibility issues or warranty voidance.
- Regularly update the switch firmware to maintain security and optimal performance.
Technical Specifications
| Specification | Value |
|---|---|
| Ports | 48 x RJ-45 Gigabit Ethernet (24 x PoE+) |
| SFP Ports | 4 x 1GbE SFP |
| Total PoE Power Budget | 370W |
| Switching Capacity | 104 Gbps |
| Throughput | 77.37 Mpps |
| Processor & Memory | ARM Cortex-A9 @ 800MHz, 512MB SDRAM, 256MB Flash |
| Dimensions | 44.3 x 35.1 x 4.39 cm |
| Weight | 4.94 kg |
| Management Options | Mobile App, Cloud Portal, Local Web Interface, SNMP |
| Warranty | Limited Lifetime Warranty |
