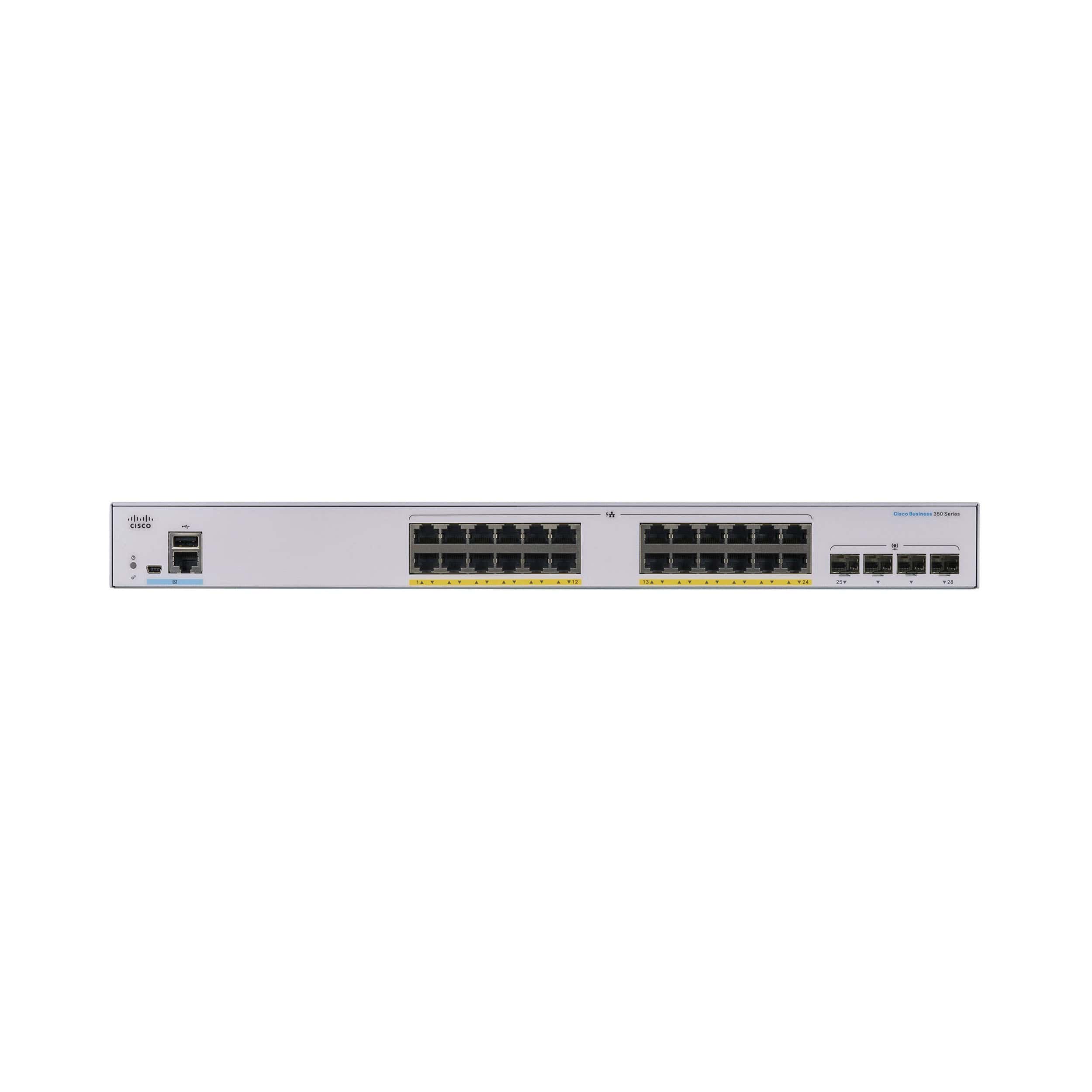

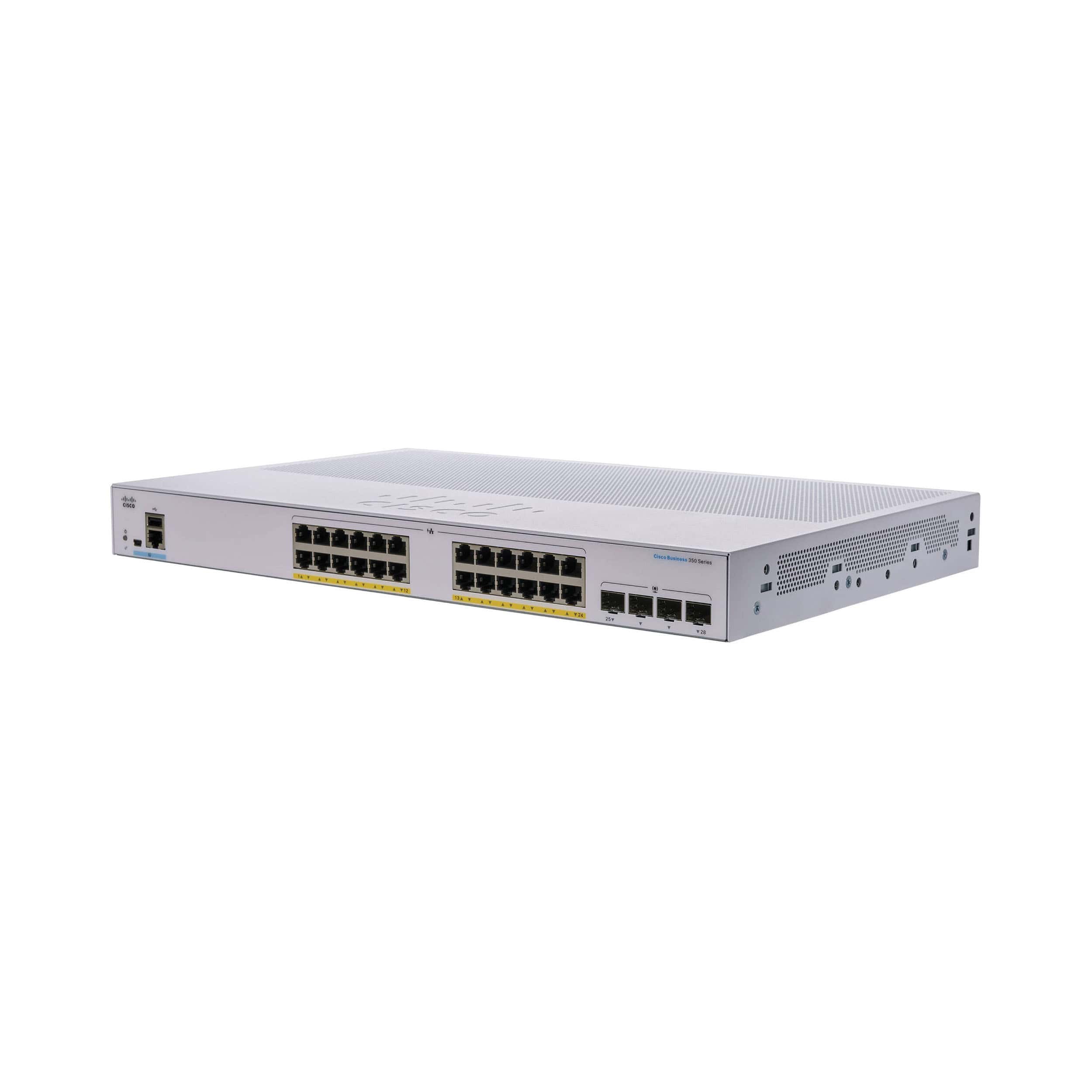

Cisco Business CBS350-24FP-4X-EU Managed Switch
The Cisco Business CBS350-24FP-4X-EU is a fully managed switch in the Cisco Business 350 series, delivering advanced reliability and performance for SMB networks.
Product Overview
This switch features 24 Gigabit PoE+ ports with a total power budget of 370 W, plus 4 × 10 Gb SFP+ uplink ports, enabling high-speed connectivity and advanced Layer 2/3 functionality.
Key Use Cases
- Powering IP cameras, wireless access points, and VoIP phones via PoE+ over a single cable.
- High-speed backbone and data center connections through 10 Gb SFP+ uplinks.
- Centralized management via web UI or Cisco Business Dashboard for easy deployment and monitoring.
Usage Warnings
- Ensure PoE+ usage does not exceed the 370 W budget to avoid power issues or device failure.
- Install in a well-ventilated area to prevent overheating.
- Use high-quality Ethernet cabling for stable performance.
Technical Specifications
| Feature | Specification |
|---|---|
| Gigabit PoE+ Ports | 24 |
| PoE Budget | 370 W |
| Uplink Ports | 4 × 10 Gb SFP+ |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16,000 entries |
| Packet Buffer | 1.5 MB |
| Weight | ≈ 2.78 kg |
| Cooling | Single internal fan |
| Operating Temp. | −5 °C to 50 °C |
