Product Definition

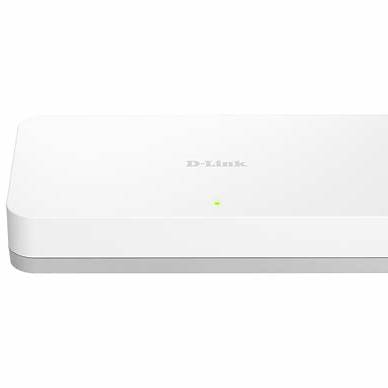

The D-Link DGS-1008A is an unmanaged 8-port Gigabit desktop switch that delivers fast, reliable network expansion for both home and small office environments.
Key Uses
- Connect multiple devices over Ethernet at speeds up to 1 Gbps.
- Share network access seamlessly across several devices in home or small office setups.
- Ideal for media streaming, online gaming, video conferencing, and other high-bandwidth tasks.
Usage Warnings
- Ensure the use of a compatible external power adapter (5 V / 1 A).
- Avoid operating in excessively hot or humid environments above 40 °C or below ‒10 °C.
- Maintain sufficient ventilation (at least 10 cm clearance), and avoid placement near strong electromagnetic sources.
Technical Specifications
| Specification | Value |
|---|---|
| Ports | 8 × 10/100/1000 Mbps Gigabit LAN |
| Standards | IEEE 802.3/u/ab, 802.1p QoS, 802.3x Flow Control, 802.3az (EEE) |
| Data Rate | Up to 2000 Mbps (full-duplex) |
| Jumbo Frames | Up to 9,216 bytes |
| Switching Capacity | 16 Gbps |
| Packet Buffer | 192 KB |
| MAC Address Table Size | 4K addresses |
| Dimensions | 130 × 79 × 22 mm |
| Weight | Approximately 130 g |
| Power | 5 V / 1 A; max power consumption 2.55 W |
| Temperature | Operating: 0–40 °C; Storage: ‒10–70 °C |
| Environmental Compliance | RoHS, Energy Star Level V, recyclable packaging |
| MTBF | Over 1,000,000 hours |
