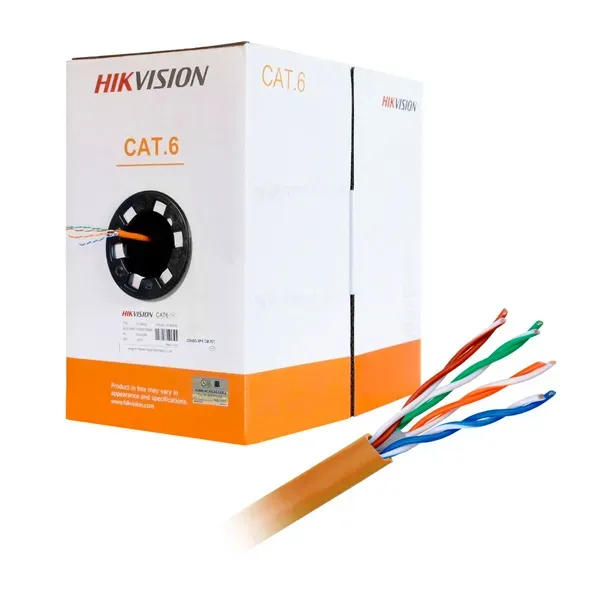

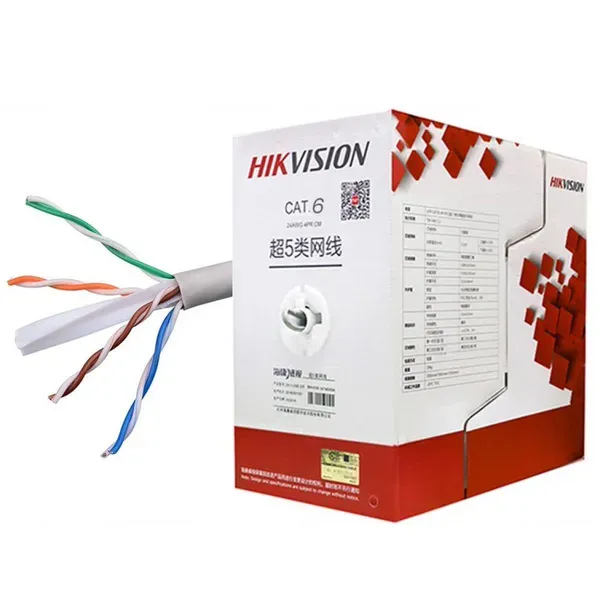

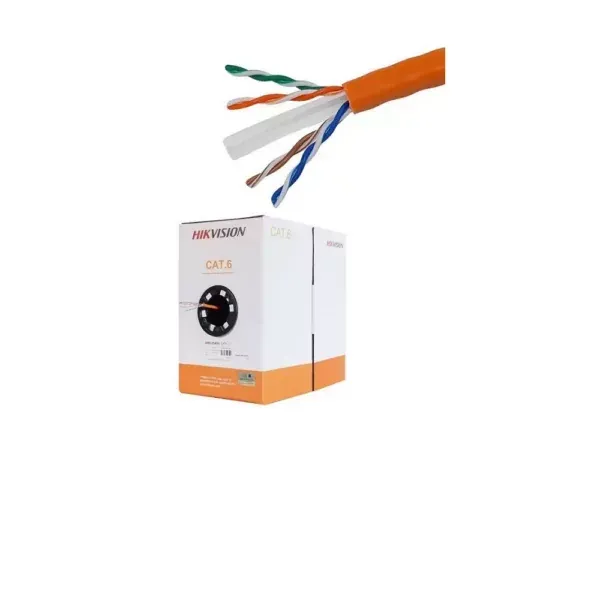

Hikvision DS-1LN6-UU Network Cable – Superior Performance for Reliable Networks
The DS-1LN6-UU from Hikvision is a 305-meter Cat6 U/UTP network cable featuring a PVC outer sheath, making it ideal for high-speed network applications and Power over Ethernet (PoE) installations.
Key Applications:
- Surveillance camera (CCTV) and security system installations.
- Enterprise and office networking.
- Long-distance data and power transmission over Ethernet (PoE).
Usage Warnings:
- Designed for indoor use only.
- Avoid direct exposure to sunlight or high humidity.
- Proper installation practices must be followed to ensure optimal performance.
Technical Specifications:
| Specification |
Value |
| Cable Type |
U/UTP Cat6 |
| Conductor |
99.95% Solid Bare Copper |
| Conductor Diameter |
0.565 ± 0.005 mm (23AWG) |
| Insulation |
HDPE, Diameter 1.02 ± 0.05 mm |
| Outer Sheath |
PVC, Thickness 0.55 ± 0.05 mm, Outer Diameter 6.2 ± 0.4 mm |
| Color |
Orange (RAL2003) |
| Length |
305 ± 1.5 meters |
| Operating Temperature |
-20°C to 75°C |
| Standards |
ANSI/TIA-568.2-D, ISO/IEC11801, RoHS 2.0 |
| Electrical Resistance |
≤ 9.38 Ω/100 m |
| Delay Skew |
≤ 45 ns/100 m |
