Introduction

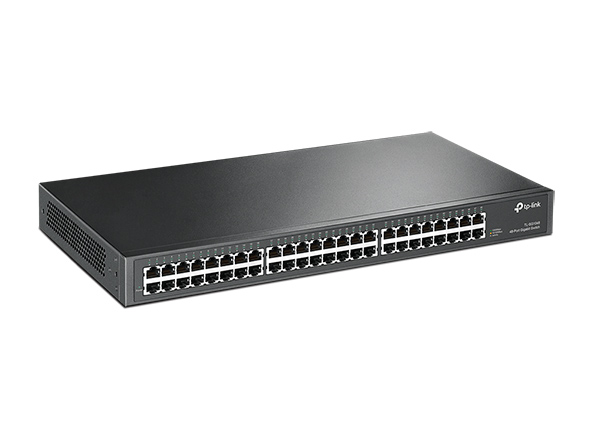

The TP-Link TL-SG1048 is an unmanaged, high-performance Gigabit Ethernet switch featuring 48 RJ-45 ports, a 1U rack-mountable design, plug-and-play convenience, and energy-efficient operation.
Key Applications
- Expanding network capacity in SMBs or educational institutions.
- Connecting workstations, servers, PoE injectors, and IP cameras.
- Supporting creative or production environments requiring fast large-file transfers.
Usage Warnings
- Ensure power supply within 100–240 VAC range.
- Use Cat 5 or higher UTP cables for optimal performance.
- Avoid high-temperature environments; operating range is 0 ℃ to 40 ℃.
Technical Specifications
| Feature | Details |
|---|---|
| Ports | 48 × 10/100/1000 Mbps RJ-45 (Auto MDI/MDIX) |
| Switching Capacity | 96 Gbps |
| Packet Forwarding Rate | 71.4 Mpps |
| MAC Address Table | 16 K entries |
| Buffer Memory | 12 Mb |
| Jumbo Frames | Support up to 12 KB |
| Transmission Method | Store-and-Forward |
| Max Power Consumption | 32.3 W |
| Dimensions | 440 × 220 × 44 mm |
| Operating Conditions | 0 ℃–40 ℃, 10%–90% RH |
| Certifications | CE, FCC, RoHS |
The TL-SG1048 features TP-Link Green Technology with dynamic power adjustment and up to 80% recyclable packaging :contentReference[oaicite:4]{index=4}.
