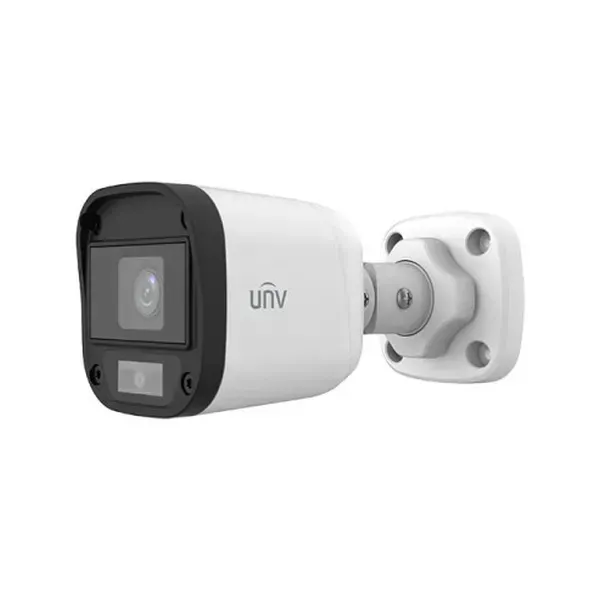

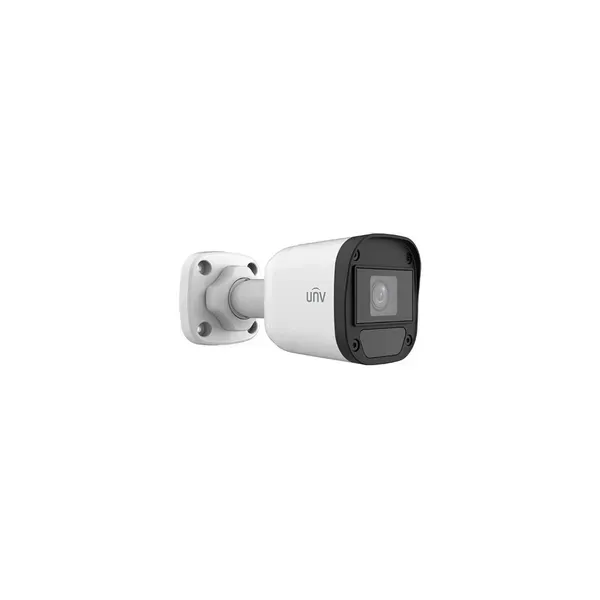

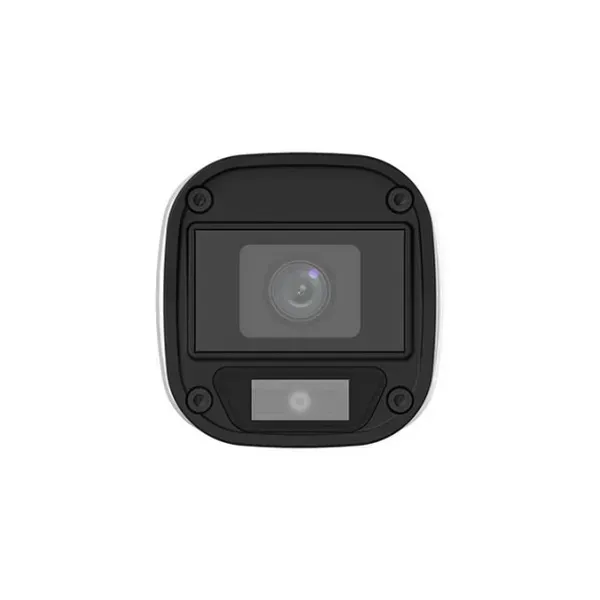

Uniview UAC-B112-AF40: Reliable High-Definition Security
The Uniview UAC-B112-AF40 camera offers an ideal solution for outdoor surveillance, featuring 2MP resolution and a 4mm lens providing a horizontal viewing angle of 80.2 degrees. It supports TVI/AHD/CVI/CVBS technologies, ensuring compatibility with most surveillance systems.
Equipped with a 1/3-inch CMOS sensor and 3D noise reduction technology, the camera delivers clear and crisp images even in low-light conditions. It provides up to 20 meters of night vision using infrared illumination.
The built-in microphone allows audio transmission over coaxial cable, enabling synchronized audio and video monitoring. With an IP67 rating, the camera is waterproof and dustproof, making it suitable for various outdoor environments.
Key Applications:
- Monitoring building entrances and exits.
- Securing parking lots and outdoor areas.
- Surveillance of retail stores and warehouses.
Usage Warnings:
- Avoid pointing the camera directly at strong light sources to prevent image distortion.
- Ensure the camera is securely mounted to prevent falls or damage.
- Use a stable power supply to avoid operational interruptions.
Technical Specifications:
| Specification | Value |
|---|---|
| Resolution | 2MP (1920×1080) |
| Lens | 4.0 mm |
| Viewing Angle | Horizontal: 80.2°, Vertical: 40.7°, Diagonal: 90.5° |
| Night Vision | Up to 20 meters (IR) |
| Audio | Built-in microphone |
| Protection | IP67 waterproof and dustproof |
| Operating Temperature | -30°C to 60°C |
| Weight | 135 grams |
