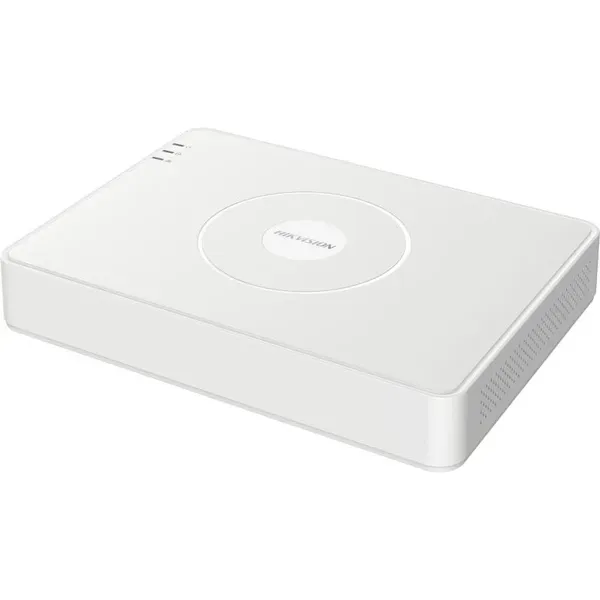

Hikvision 16-Channel 720p Mini 1U H.265 DVR – DS-7116HGHI-M1
The DS-7116HGHI-M1 from Hikvision is an advanced video surveillance solution supporting 16 analog channels and up to 18 IP channels with resolutions up to 5 MP. It features H.265 Pro+ video compression for enhanced storage efficiency.
Key Applications
- Home and business security surveillance systems.
- Educational institutions and public facilities.
- Retail stores and commercial centers.
Usage Warnings
- Avoid exposing the device to temperatures or humidity levels outside the recommended range.
- Use a stable 12V DC power source.
- Ensure proper ventilation to prevent overheating.
Technical Specifications
| Specification | Value |
|---|---|
| Analog Video Inputs | 16 BNC channels |
| IP Video Inputs | Up to 18 channels at 5 MP |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Video Outputs | HDMI and VGA at 1080p |
| Audio Input | 1 RCA channel and 16 channels via coaxial cable |
| Audio Output | 1 RCA channel |
| Hard Disk | 1 SATA interface supporting up to 10 TB |
| Network Interface | 1 RJ45 10/100 Mbps |
| USB Interface | 2 USB 2.0 ports |
| Power Supply | 12V DC, 1.6 A |
| Power Consumption | ≤ 7 W (without HDD) |
| Dimensions | 285 × 210 × 45 mm |
| Weight | ≤ 1 kg |
