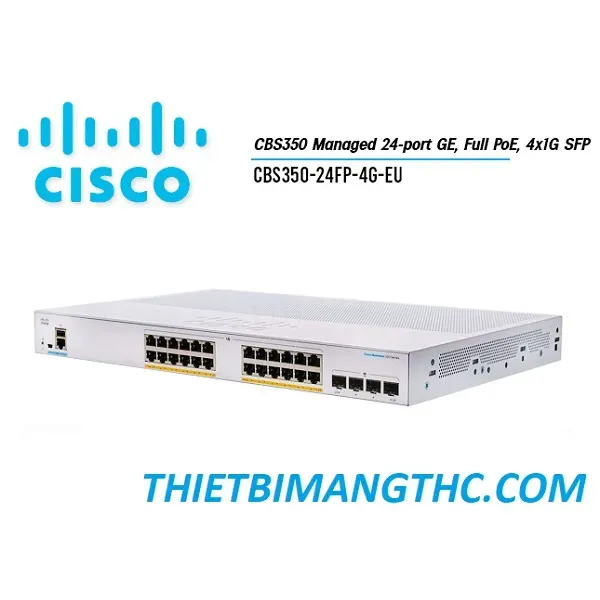

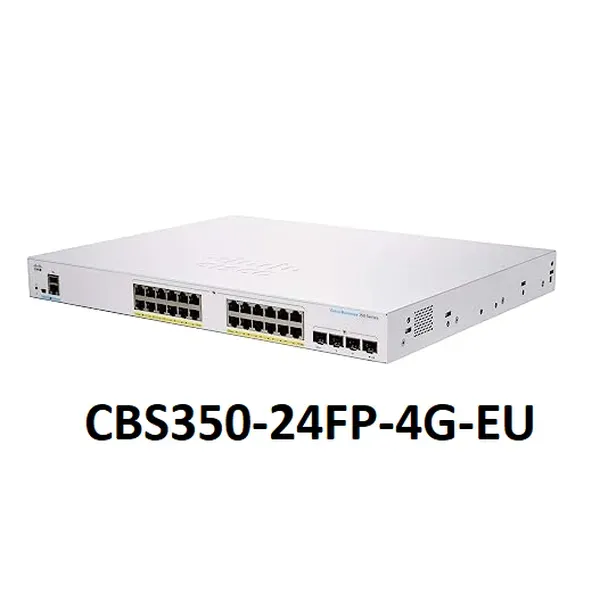

Cisco CBS350-24FP-4G-EU: Professional Network Performance

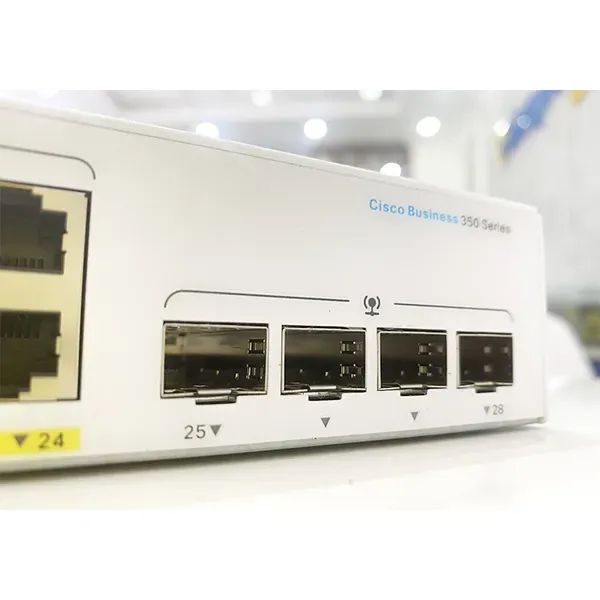

The Cisco CBS350-24FP-4G-EU switch is part of the Cisco Business 350 Series, designed to meet the needs of medium to advanced networks. It offers 24 Gigabit ports supporting PoE+ with a total power budget of up to 370W, allowing the operation of devices such as access points, cameras, and VoIP devices without the need for separate power sources. Additionally, it includes 4 SFP ports for fiber connectivity, enhancing network flexibility and scalability.
Key Applications:
- Medium to large office networks.
- Powering PoE-dependent network devices like cameras and access points.
- Environments requiring high security and advanced network management.
Usage Warnings:
- Ensure the total PoE power budget (370W) is not exceeded.
- Install the switch in a well-ventilated environment with appropriate temperature (from -5 to 50°C).
- Installation should be performed by qualified technicians to ensure proper and safe setup.
Technical Specifications:
| Specification | Value |
|---|---|
| Ports | 24 x RJ-45 Gigabit + 4 x SFP |
| PoE Support | Yes, PoE+ with total power budget of 370W |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| Operating Temperature | -5 to 50°C |
| Operating Humidity | 10% to 90% (non-condensing) |
| Power Consumption | Approximately 449.7W at 110V |
| Network Management | Web Interface, CLI, SNMP, Cisco Business Dashboard support |
