Overview
Table 4-16 Basic information about the AP371
| Item | Details |
|---|---|
| Description | AP371(11be indoor,2+2 dual bands,smart antenna,USB) |
| Part Number | 50087399-001 |
| Model | AP371 |
| First supported version | V600R023C10 |

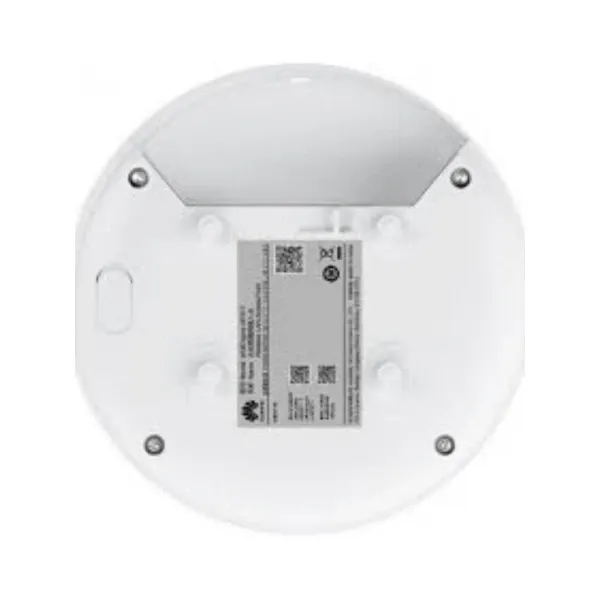

Appearance
Figure 4-10 Appearance of the AP371

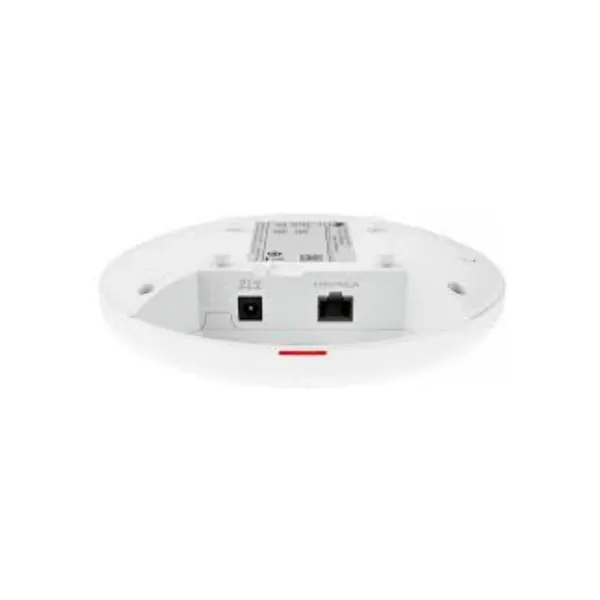

Ports
Figure 4-11 Ports on the AP371
|
1 |
DC12V |
2 |
2.5GE/PoE_IN |
|
3 |
USB |
4 |
Security slot |
|
5 |
Management console port |
– |
– |
Table 4-17 Ports on the AP371
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 2.5GE/PoE_IN | RJ45 | 100M/1000M/2.5G auto-sensing Ethernet electrical port that connects to the wired Ethernet and supports PoE input. |
Network cable |
| DC 12V | DC connector | Connects to a 12 V power adapter. |
12 V DC power adapter |
| USB | USB Type A | Provides 2.5 W or 5 W power supply. | – |
| Management console port | Pin header socket | Management console port, allowing operations only by professionals | – |
Indicators and Buttons
Figure 4-12 Indicators and buttons on the AP371
|
1 |
Indicator |
2 |
Default |
Table 4-18 Indicators on the AP371
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| – | System indicator | – | Off | The system is not running. |
| Green | Steady on |
|
||
| Green | Steady on after blinking once | After the hardware reset is cleared and the software starts, the indicator blinks once. Then, the indicator is steady on until the bottom-layer system starts. | ||
| Green | Slow blinking (0.5 Hz) | The AP is running properly, the Ethernet connection is normal, and STAs are associated with the AP. | ||
| Green | Slow blinking (0.2 Hz) | The AP is running properly, the Ethernet connection is normal, and no STA is associated with the AP. | ||
| Green | Blinking once every 0.25s (4 Hz) |
|
||
| Yellow (blinking red and green at the same time, causing color deviation) | Blinking once every 0.25s (4 Hz) |
Hold down the Default button for more than 6 seconds to restore the factory settings. This function is supported in V600R024C10. |
||
| Red | Blinking once every 0.25s (4 Hz) |
Hold down the Default button for more than 6 seconds to restore the factory settings. This function is supported in V600R25C00 or later. |
||
| Red | Steady on | A fault that affects services has occurred, such as a DRAM detection failure or system software loading failure. The fault cannot be automatically rectified and must be rectified manually. |
Table 4-19 Buttons on the AP371
| Silkscreen | Name | Description |
|---|---|---|
| Default | Reset button |
|
Technical Specifications
Table 4-20 Technical specifications of the AP371
| Item | Specification |
|---|---|
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 61 mm x 231 mm x 203 mm (2.40 in. x 9.09 in. x 7.99 in.) |
| Weight without packaging [kg(lb)] | 0.47 kg (1.04 lb) |
| Weight with packaging [kg(lb)] | 0.69 kg (1.52 lb) |
| Storage | NAND Flash 256 MB |
| Console port | None |
| Maximum power consumption [W] | 13.3 (excluding USB) |
| Maximum heat dissipation [BTU/hour] | 43.1 BTU/hour |
| Power supply mode |
|
| Rated input voltage [V] | 12 V |
| Input voltage range [V] |
DC: 12 V ± 10% PoE: 802.3at/af |
| Service port surge protection |
PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B |
| PoE OUT | Not supported |
| Maximum number of physical ports on the entire device | 2.5GE (RJ45) x 1, 100M/1000M/2500 Mbit/s auto-sensing |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa – 106kPa ETSI 300 019-2-3 |
| Ground | Floating ground |
| USB | Supplies power of 2.5 W or 5 W. |
| IoT slot | Not supported |
| BLE | Not supported |
| Radio number | 2 |
| Operating frequency band |
|
| MIMO spatial streams |
Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2 |
| Wi-Fi standard |
2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be |
| Radio interface | Built-in smart antennas |
| Antenna gain |
2.4 GHz: 4 dBi/chain (peak gain) 1 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) |
| Maximum transmit power |
2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power) |
| Singal radio transmit power [dBm] |
2.4G: -10 dBm to 20 dBm/chain 5G: -10 dBm to 20 dBm/chain |
| MTBF [year] | 158.215 year |
| MTTR [hour] | 2 hour |
| Frequency stability [ppm] | +/-20 |
| 802.3at power supply description | No function is limited. |
| 802.3af power supply description | The USB power supply is not supported and other functions are not restricted. |
| DC power supply description | No function is limited. |
