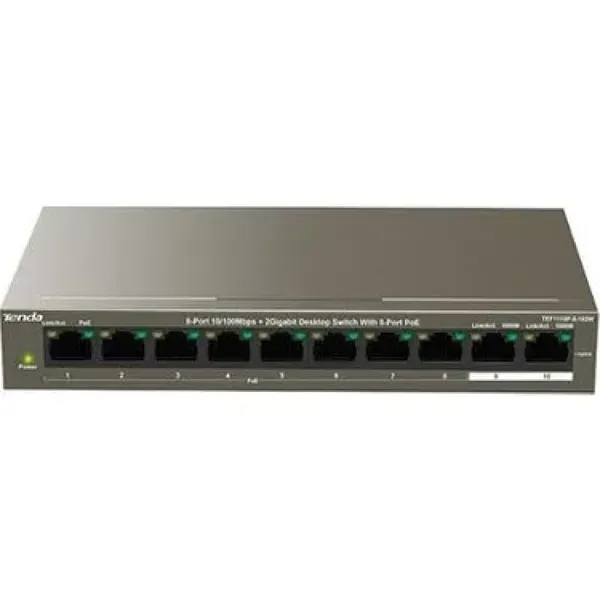

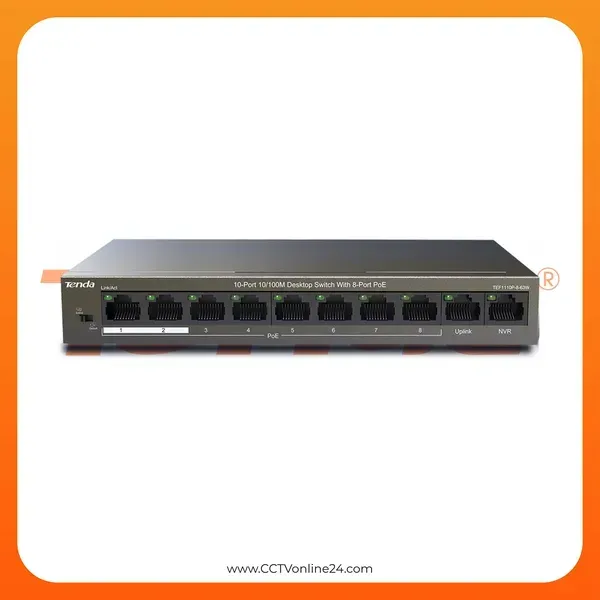

Tenda TEF1110P-8-63W – 10-Port 10/100M Desktop Switch with 8 PoE Ports
An unmanaged switch specifically designed to meet the needs of video surveillance systems in small to medium-sized businesses, retail stores, and restaurants. Features 8 PoE ports supporting IEEE 802.3af/at standards, allowing easy connection and power supply to cameras and network devices without additional power sources.
Main Applications:

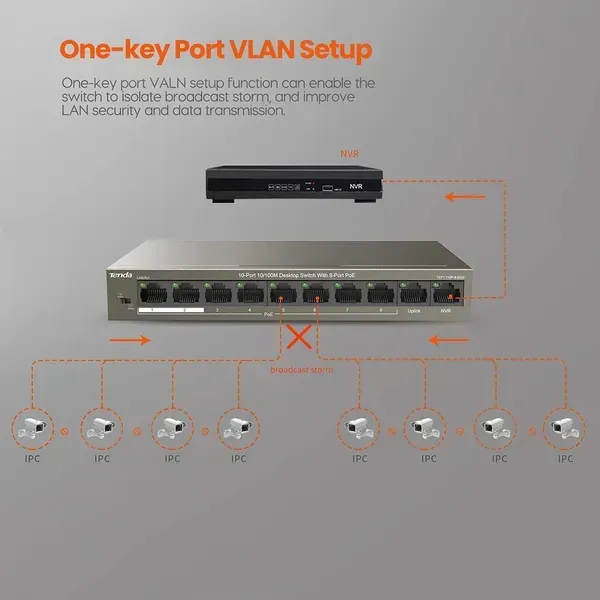

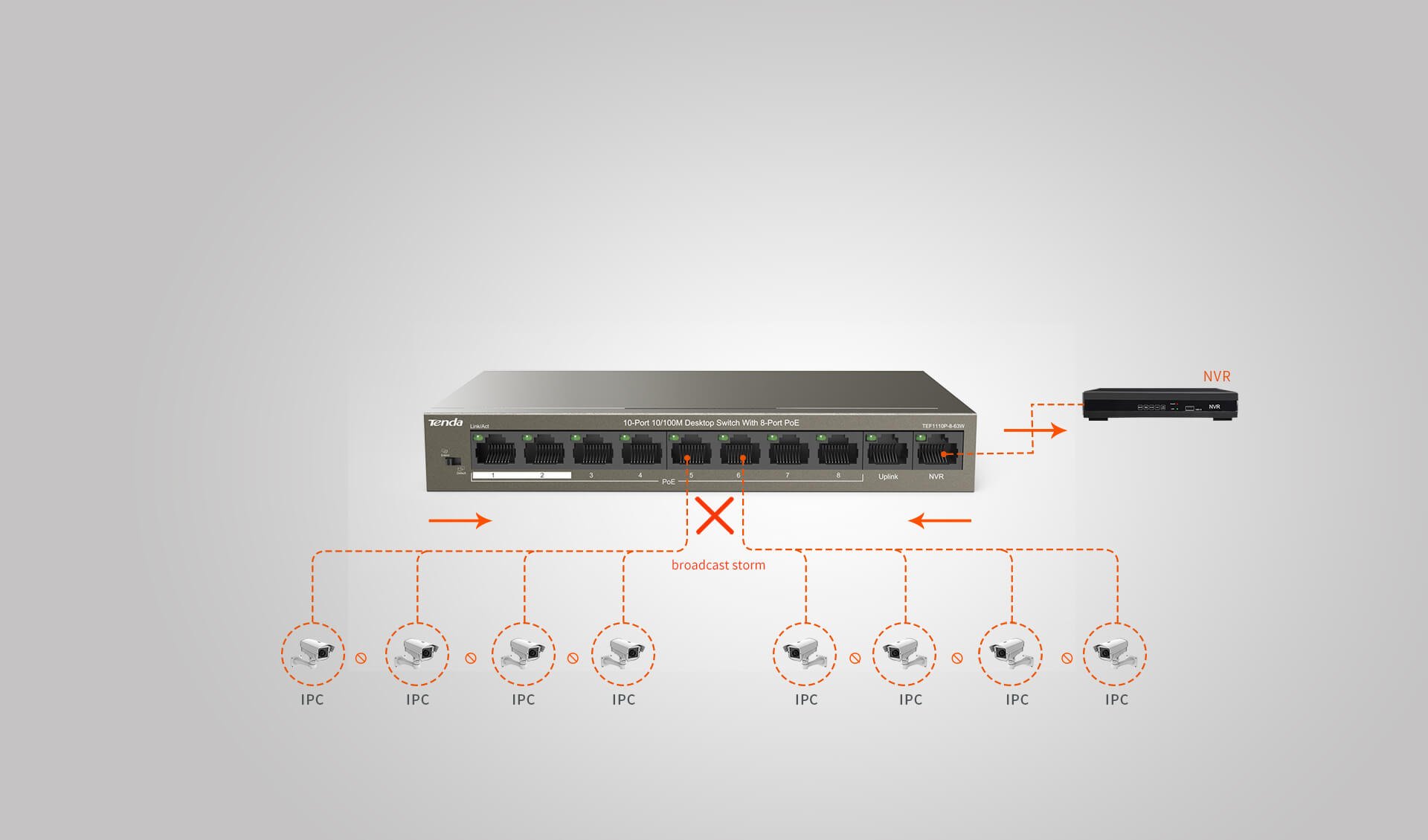

- Video surveillance systems (CCTV)
- Connecting NVR and DVR devices
- Wireless access points (Access Points)
- Expanding networks in small commercial environments
Usage Warnings:
- Ensure the total power consumption does not exceed 58W to prevent power loss on some ports.
- In Extend Mode, data speed reduces to 10 Mbps to increase transmission distance up to 250 meters.
- It is recommended to use CAT5e or higher cables for optimal performance.
Technical Specifications:
| Specification | Value |
|---|---|
| Number of Ports | 10 (8 PoE Ports + 2 Uplink Ports) |
| Speed | 10/100 Mbps |
| Total PoE Power | 58W |
| Power per Port | Up to 30W |
| Transmission Distance (Extend Mode) | Up to 250 meters |
| Switching Capacity | 1.6 Gbps |
| MAC Address Table | 1K |
| Device Dimensions | 177.5 × 104 × 26 mm |
| Lightning Protection | 6KV for ports, 4KV for power |
