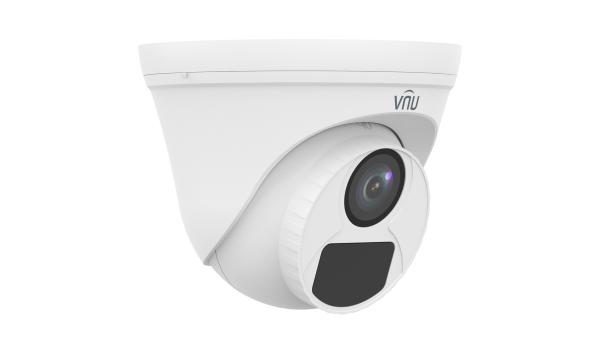

UNV UAC-T112-F28 2MP Fixed IR Turret Analog Camera
The UNV UAC-T112-F28 offers a reliable surveillance solution with high-definition imaging and robust design. Featuring a compact turret form factor and a fixed 2.8mm lens, it provides a wide horizontal field of view of 90.5° and a diagonal view of 109.5°.
Key Applications:
- Monitoring entrances and exits in residential and commercial buildings.
- Securing retail stores and warehouses.
- Surveillance of corridors and public areas.
Usage Warnings:
- Ensure the camera is connected to a stable 12V ±25% power supply.
- Avoid exposing the camera to conditions beyond its operating temperature range (-30°C to 60°C).
Technical Specifications:
| Specification | Value |
|---|---|
| Resolution | 2MP (1920×1080) |
| Lens | 2.8mm, fixed |
| Night Vision | Up to 20m IR |
| Min. Illumination | 0.02 lux (F2.0, AGC ON) |
| Weatherproof Rating | IP67 |
| Weight | 182g |
| Dimensions | Φ118mm × 96mm |
