Introduction

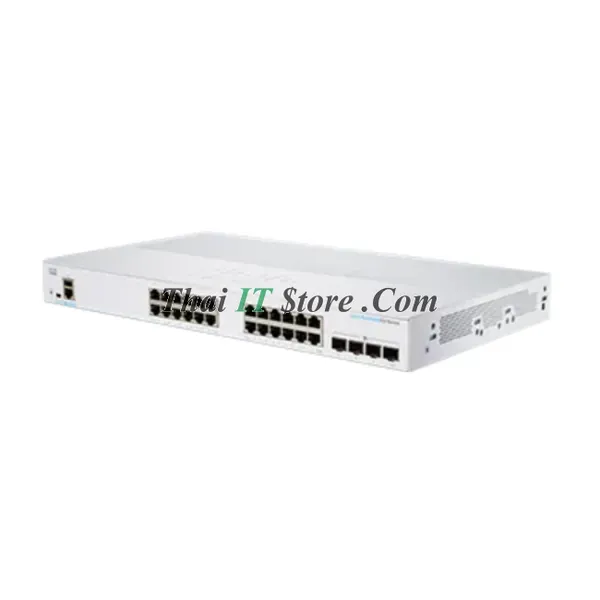

The Cisco CBS350-24P-4G-EU is a Layer 3 managed switch from the Cisco Business 350 Series, featuring 24 10/100/1000 Mbps PoE+ ports with a total power budget of 195W, and 4 SFP uplink ports. Its compact, rack-mountable design makes it ideal for small to medium-sized businesses.
Key Applications
- Powering devices like wireless access points, surveillance cameras, and VoIP phones through PoE+ ports.
- Advanced network management with support for static routing and enhanced security features.
- Easy deployment and management via a graphical user interface and Cisco Business Dashboard application.
Usage Warnings
- Ensure the total power consumption of connected devices does not exceed 195W.
- The switch should be installed in environments with temperatures between -5°C to 50°C and relative humidity between 10% to 90% non-condensing.
Technical Specifications
| Specification | Details |
|---|---|
| Ports | 24 x RJ-45 Gigabit PoE+ ports and 4 x SFP uplink ports |
| Total PoE Power | 195W |
| Switching Capacity | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| Memory | 512 MB DRAM, 256 MB Flash |
| Dimensions | 445 x 299 x 44 mm |
| Weight | 3.53 kg |
| Operating Temperature | -5°C to 50°C |
| Operating Humidity | 10% to 90% non-condensing |
_01.webp)
