Fiber Optic Coupler LC-LC UPC Single Mode Duplex

The NS-AD-LCLC-UPC-SM-DX represents the high-density standard for modern fiber networking. Utilizing the small form factor (SFF) LC design, this adapter allows for significantly higher port density compared to traditional SC adapters, making it the primary choice for data centers and enterprise-grade infrastructure.

Netsys NS-AD-LCLC-UPC-SM-DX

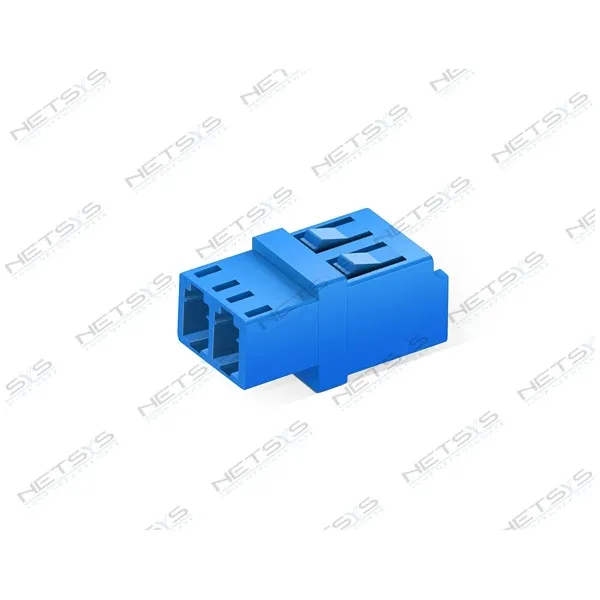

The Netsys NS-AD-LCLC-UPC-SM-DX is a high-precision Duplex LC-to-LC Fiber Optic Adapter designed to bridge two pairs of LC fiber connectors. Engineered for Single-Mode (SM) networks with UPC (Ultra Physical Contact) polishing, this adapter provides a compact, reliable, and low-loss connection point within high-density patch panels and networking equipment.

Key Features

• High-Density LC Duplex Design: Features a dual-channel LC-to-LC interface. The LC “small form factor” design effectively doubles the density of your fiber infrastructure compared to SC connectors.

• Single-Mode Optimized: Precision-engineered for $9/125\mu m$ Single-Mode fiber, ensuring seamless performance for long-haul and high-bandwidth data transmission.

• Premium Zirconia Ceramic Sleeves: Incorporates high-quality zirconia ceramic alignment sleeves to ensure perfect core-to-core mating, which is critical for maintaining ultra-low insertion loss.

• UPC Polish Compatible: Designed specifically for blue-coded UPC connectors, ensuring low back reflection and high return loss for sensitive high-speed transceivers.

• Durable & Easy Installation: Built with a robust, lightweight blue plastic housing featuring integrated metal mounting clips for a secure, “snap-in” fit in standard LC duplex footprints.

Technical Specifications

Best Use Case

The NS-AD-LCLC-UPC-SM-DX is the industry standard for Data Center high-density patching, SFP/SFP+ transceiver interfacing, and Enterprise LAN backbones. It is specifically designed for environments where rack space is at a premium and high-speed signal integrity cannot be compromised.
