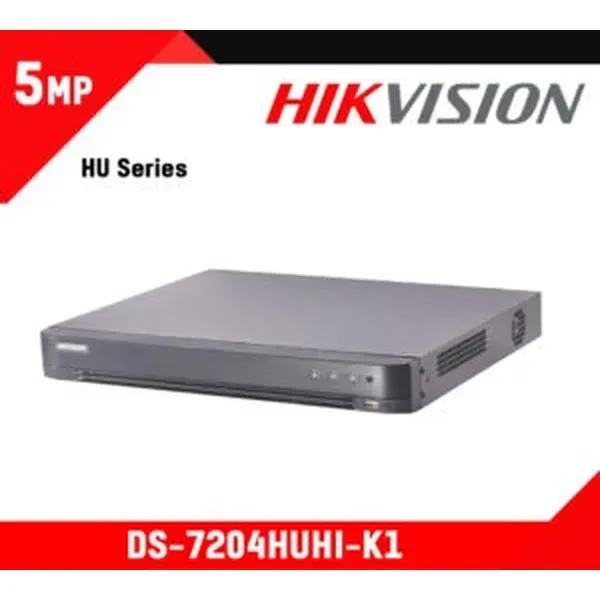

Hikvision DS-7204HUHI-K1 Digital Video Recorder
The DS-7204HUHI-K1 is an advanced DVR solution from Hikvision, supporting up to 8MP recording with H.265 Pro+ compression for efficient storage. It is compatible with various camera types, including HDTVI, AHD, CVI, CVBS, and IP, making it ideal for diverse security setups.
Key Applications:
- Homes and small offices.
- Retail stores and shopping centers.
- Schools and educational institutions.
- Industrial facilities and warehouses.
Usage Warnings:
- Avoid exposing the device to temperatures or humidity beyond the specified range.
- Use a stable 12V DC power source.
- Ensure proper ventilation to prevent overheating.
Technical Specifications:
Specification | Value |
---|---|
Analog Channels | 4 BNC channels |
Recording Resolution | Up to 8MP |
Compression Technologies | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
IP Video Inputs | 4 channels (up to 8 channels) |
Video Outputs | HDMI/VGA up to 2K resolution |
Audio Inputs | 4 RCA channels |
Audio Output | 1 RCA channel |
Supported HDD | 1 × SATA up to 10TB |
Network Interface | 1 × RJ45 10M/100M |
USB Ports | 2 × USB 2.0 |
Power Supply | 12V DC |
Power Consumption | ≤ 10W (without HDD) |
Dimensions | 315 × 242 × 45 mm |
Weight | ≤ 1.16 kg |
