Description

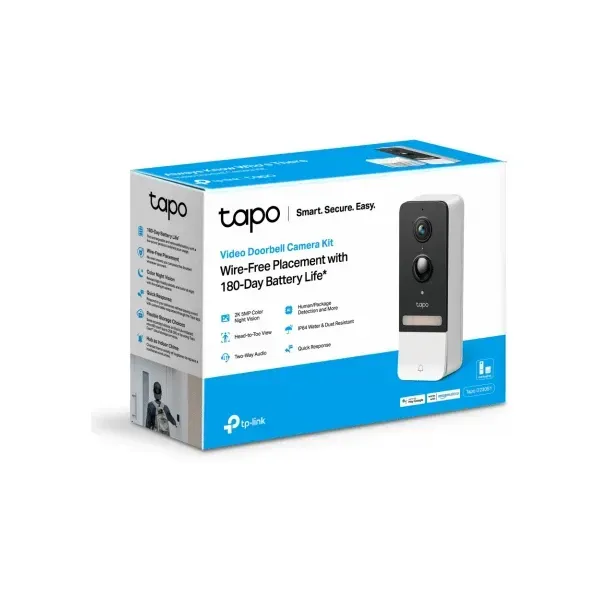

Tapo D230S1
- 2K 5MP Live View: Always know what happens in front of your door through the Tapo app. With the starlight sensor and 2K 5MP resolution, check all the fine details captured even in low-light environments.
- Color Night Vision: With the embedded spotlight and starlight sensor, Tapo D230S1 reveals high-fidelity details and color at night.
- Head-to-Toe View: With the camera’s ultra-wide FOV(160° Diagonal), Tapo 4:3 live view ensures users can check visitors from head-to-toe as close as 1m†, which shows more vertical details than other 16:9 doorbells’.
- Flexible Placement, Flexible Views: Different wedge choices allow users to make the doorbell suits more placement scenarios. Users can also use wedges to adjust the views.
- Longer Battery Life: The rechargeable and removable battery with a low-power protocol extends your usage.
- Smart AI Detection and Notification: Smart AI algorithms identify people and cars, and notify users as needed.
- Multiple Ways to Answer: With two-way audio or a recorded quick response, communicate directly with your deliveries through the Tapo app.
- Flexible Storage Choice: Save recorded videos on the hub-installed microSD card§ (up to 512 GB) or by using Tapo Care△ cloud storage services.
- Anti-theft Alarm: Be alerted when someone trying to take the doorbell off with the anti-theft alarm function.
- Water & Dust Resistant IP64： Operates well on rainy days and in damp environments.
CAMERA | |
|---|---|
| Image Sensor | 1/2.7“ Progressive Scan CMOS Sensor |
| Lens | Focal Length: 2.1 mm Aperture: F2.1 Field of View: 166° (Diagonal), 135° (Horizontal), 102.8° (Vertical) |
| Night Vision | 850 nm IR LED (25 ft / 7.6 m) Full-Color Night Vision |
| Lighting | Built-in Spotlights |
| Interface & Button | 1× RESET Button 1× Doorbell Button 1× Anti-Theft Button |
| Hub Compatibility | Compatible with H200 (Included) |
HUB | |
|---|---|
| Device Compatibility | Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells. |
| Connection Capacity | Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells |
| Interface & Button | 1× Ethernet Port 1× RESET Button 1× MicroSD Card Slot (Up to 512 GB) 1x SYNC Button |
| VIDEO & AUDIO | |
|---|---|
| Maximum Resolution | 2K 5MP (2560 × 1920px) |
| Frame Rate | 15 fps |
| Digital Zoom | 16x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | Doorbell: 96 dB (Anti-theft siren, Level measured at 4-inch/10-cm distance) Hub: 100 dB (Level measured at 4-inch/10-cm distance) |
| Tapo D230S1 STORAGE | |
|---|---|
| Local Storage | MicroSD Card Slot on Hub (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS | |
|---|---|
| Sensor | Single PIR Motion Sensor (FOV: 130° horizontal) One Ambient Light Sensor |
| AI Detection | Motion Detection Person Detection Pet Detection Vehicle Detection Package Detection |
| Activity Zones | Yes *Only works with Motion Detection. |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
NETWORK | |
|---|---|
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi Sub-1G, 868MHz (Used for local connection between doorbell and hub) |
| Ethernet Port | 1× 10/100 Mbps RJ45 Port on Hub |
| SECURITY | |
|---|---|
| Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
Tapo D230S1 POWER | |
|---|---|
| Power Source | Doorbell: 6700 mAh Removable Rechargeable Lithium-ion Battery Hub: 9V DC Power Adapter |
| Input Voltage | Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A |
| Output Voltage | Hub Adapter Output: 9.0 V, 0.85 A Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A Hub Adapter Output: 9.0 V, 0.85 A |
| DC Power Connector Size | |
Tapo D230S1 GENERAL | |
|---|---|
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP64 |
| System Requirements | Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
| Mounting Options | Stick to a Wall Mount to a Wall |
| Operating Temperature | -20℃~45℃ |
| Storage Temperature | -20℃~45℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Dimensions | Doorbell Dimensions: 5.7 × 0.21 × 1.3 in (146 × 54.5 × 35.5 mm) Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm) |
| Package Contents | Tapo Video Doorbell × 1 Tapo H200 Hub × 1 Tapo A100 Battery × 1 DC Power Adapter × 1 USB Adapter × 1 USB Adapter Cable × 1 RJ45 Ethernet Cable × 1 Inclined Mounting Templates × 1 Mounting Templates × 2 Mounting Brackets × 1 15° Mounting Wedge × 1 Doorbell Detaching Pin × 1 Screws and Anchors × 2 Quick Start Guide |
Certifications | CE, RoHS, RCM,R-NZ,FCC, EAC, Triman, UKCA |
