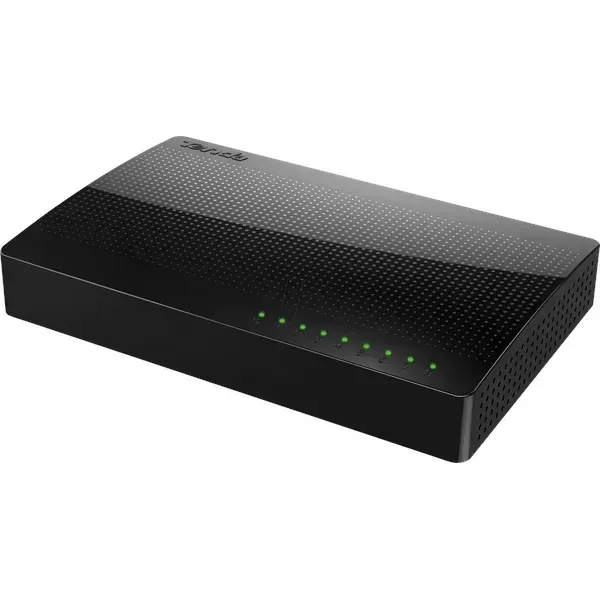

Tenda SG108 – 8-Port Gigabit Desktop Switch
The Tenda SG108 is an unmanaged switch equipped with 8 RJ45 ports supporting 10/100/1000 Mbps speeds, delivering high performance for home and small office networks. It features a compact and sleek design, supports desktop and wall mounting, and operates with plug-and-play simplicity without complex configurations.
Key Applications
- Easy expansion of home or office networks.
- Connecting devices like cameras, computers, printers, and gaming consoles.
- High-speed data transmission without delays, ideal for HD streaming and surveillance.
Usage Warnings
- Does not support Power over Ethernet (PoE).
- Not suitable for rack mounting.
- Recommended to use CAT5e or higher cables for optimal performance.
Technical Specifications
Specification | Value |
---|---|
Number of Ports | 8 RJ45 Ports (10/100/1000 Mbps) |
Switching Capacity | 16 Gbps |
Forwarding Rate | 12 Mpps |
MAC Address Table | 8K |
Buffer Memory | 4 Mb |
Mounting Options | Desktop, Wall Mounting |
Dimensions | 124 × 59 × 23 mm |
Maximum Power Consumption | <3W |
Operating Temperature | 0°C to 45°C |
Operating Humidity | 10% – 90% RH (non-condensing) |
Certifications | CE, FCC, RoHS |
