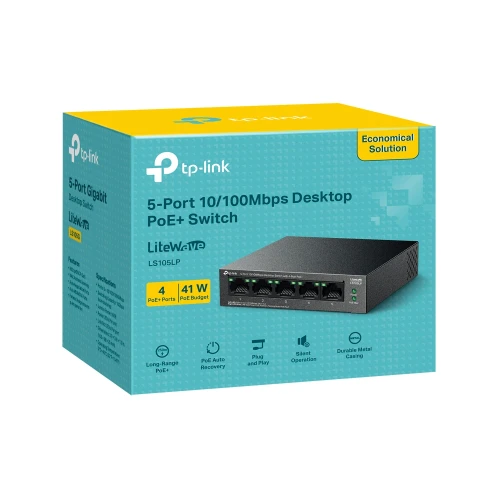

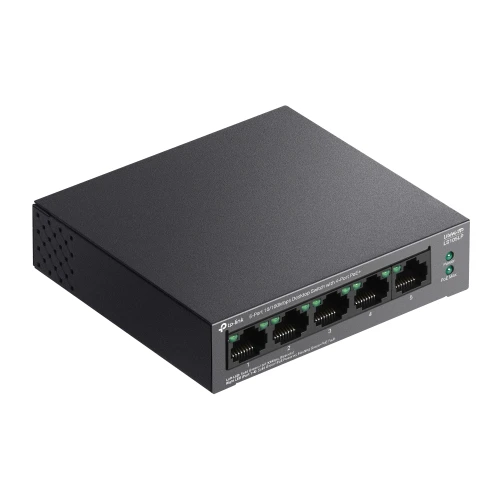

LS105LP | 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+
The TP-Link LS105LP is an ultra-compact, unmanaged PoE+ switch from the LiteWave series. Designed for simplicity and reliability, it is the perfect entry-level solution for users looking to power a small number of devices—like IP cameras or access points—using a single Ethernet cable. Its fanless, sturdy design makes it a versatile fit for any home or office environment.
Key Features
Four Dedicated PoE+ Ports: Features 4× 10/100 Mbps ports supporting the 802.3af/at standard, delivering up to 30W per port for high-power devices.
41W Total PoE Budget: Equipped with a 41W power budget to ensure stable and continuous operation for up to four connected PoE devices.

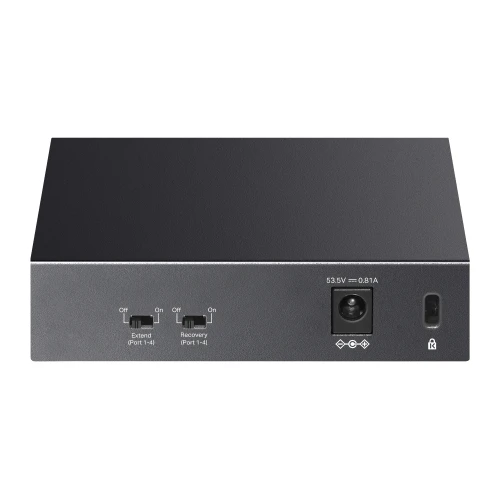

Extended Range (Up to 250m): Enable Extend Mode to reach cameras or devices located up to 250 meters away, bypassing the standard 100m Ethernet limit—ideal for large properties or warehouses.
Self-Healing with PoE Auto Recovery: The switch automatically detects when a PoE-powered device is unresponsive and reboots it, ensuring your security system remains functional without manual troubleshooting.
Priority Mode (Ports 1–2): One-click prioritization ensures that sensitive applications like video monitoring receive high-quality data transmission, even when the network is busy.
Silent & Durable: The fanless design ensures 100% silent operation, while the professional-grade metal casing provides excellent heat dissipation and durability.
Plug and Play: No configuration needed. Auto MDI/MDIX and auto-negotiation make installation fast and hassle-free.
Technical Specifications
| Feature | Details |
| Interface | 5× 10/100 Mbps RJ45 Ports (Ports 1–4 are PoE+) |
| PoE Standards | 802.3af/at |
| PoE Power Budget | 41 W |
| Transmission Distance | Up to 250m (in Extend Mode) |
| Switching Capacity | 1 Gbps |
| Advanced Features | Extend Mode, Priority Mode, PoE Auto Recovery |
| Installation | Desktop / Wall-Mount |
