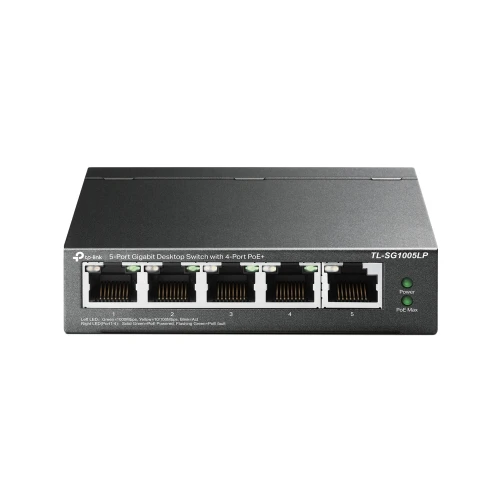

TL-SG1005LP | 5-Port Gigabit Desktop Switch with 4-Port PoE+
The TP-Link TL-SG1005LP is a compact, high-speed unmanaged switch designed for simplicity and efficiency. It is an ideal entry-level PoE solution for small businesses and home offices, providing high-speed Gigabit data transfer and reliable power delivery to essential network devices via a single Ethernet cable.
Key Features
-

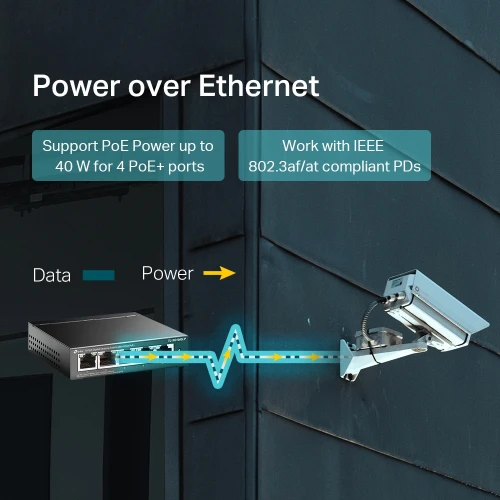

Four Dedicated PoE+ Ports: Equipped with four 10/100/1000 Mbps PoE+ ports that support the 802.3af/at standard, delivering up to 30W per port.
-
40W Total PoE Budget: With a total power budget of 40W, it easily supports up to four standard IP cameras, VoIP phones, or wireless access points.
-
Intelligent Power Management: To prevent power overload, the switch features a prioritization system. If the total power consumption exceeds 40W, the switch will cut power to the lowest-priority port (Port 4) to ensure the primary devices remain online.
-
Sturdy Metal Casing: Built with a professional-grade, high-quality metal shell that ensures a long product life and efficient heat dissipation.
-
Silent Operation: The fanless design makes it perfectly suited for quiet environments like desktops, bedrooms, or private offices.
-

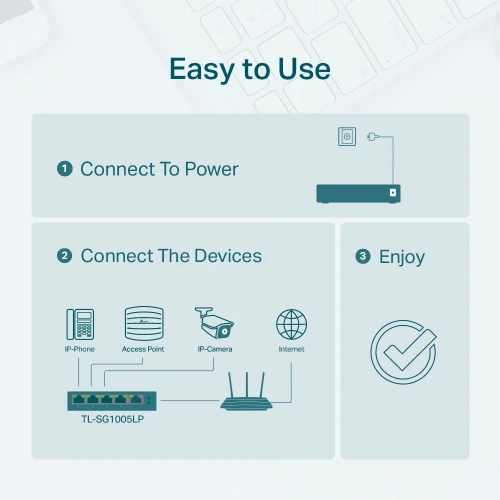

Plug and Play: No software installation or configuration needed. Auto-negotiation and Auto MDI/MDIX simplify the setup process instantly.
Technical Specifications
| Feature | Details |
| Interface | 5× 10/100/1000 Mbps RJ45 Ports |
| PoE Standards | 802.3af/at (Port 1 to Port 4) |
| PoE Power Budget | 40 W |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| Advanced Features | 802.1p/DSCP QoS, IGMP Snooping, Mac Address Auto-Learning |
