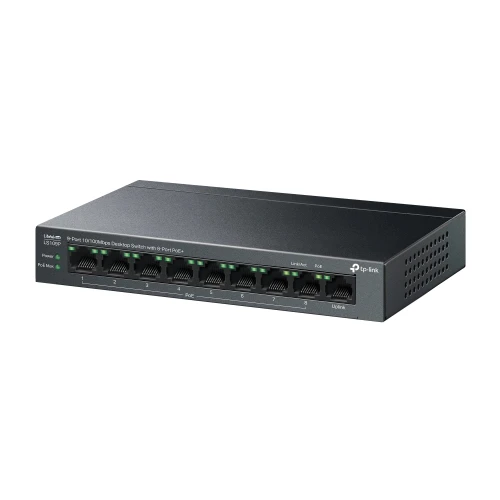

TP-LINK 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ LS109P

LS109P | 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

The TP-Link LS109P is an entry-level, high-utility unmanaged switch from the LiteWave series, designed to simplify your network expansion. Featuring 8 dedicated PoE+ ports, it provides a cost-effective way to deliver both data and power to your devices through a single Ethernet cable, making it a perfect fit for home security and small business environments.

Key Features

• 8 PoE+ Ports for High Efficiency: Equipped with 8× 10/100 Mbps PoE+ ports (802.3af/at) delivering up to 30W per port, ideal for IP cameras, access points, and IP phones.

• 63W Total PoE Budget: A total power budget of 63W allows for reliable operation of multiple devices, ensuring your network remains stable and powered.

• Extend Mode (Up to 250m): Specifically designed for surveillance, this mode allows for data and power transmission up to 250 meters, perfect for cameras deployed in large areas or at a distance.

• Isolation Mode: With a single click, you can isolate traffic for ports 1–8 to prevent snooping and tampering, effectively increasing security and reducing broadcast storms.

• PoE Auto Recovery: The switch automatically monitors the status of PoE devices. If a device becomes unresponsive, the switch will automatically reboot it, saving you time and maintenance effort.

• Silent & Durable: Housed in a high-quality metal casing with a fanless design, ensuring silent operation and a long product life in any workspace.

• Plug and Play: No software or configuration needed. Simply plug in your devices and let the switch handle the rest.
