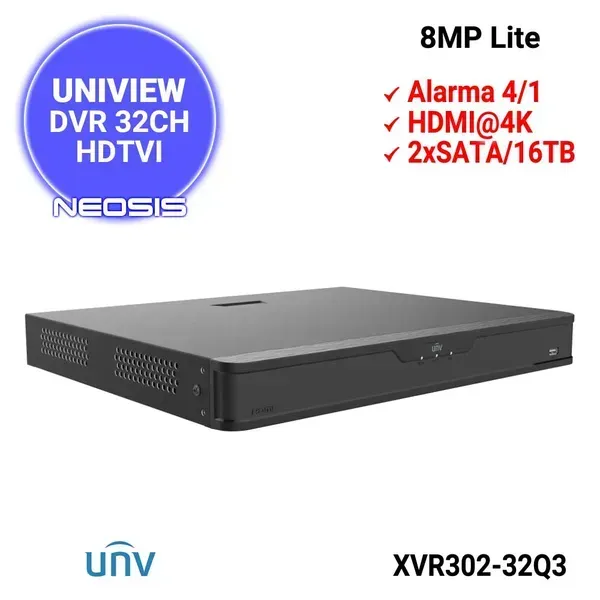

Uniview XVR302-32Q3 Hybrid Digital Video Recorder
The Uniview XVR302-32Q3 offers a comprehensive solution for professional surveillance systems, combining support for both analog and digital cameras, providing high flexibility in installation and expansion.
Key Applications
- Surveillance systems for large and medium-sized enterprises.
- Commercial buildings and residential complexes.
- Factories and warehouses requiring multi-channel monitoring.
Usage Warnings
- To utilize the audio over coaxial feature, Uniview CVI protocol cameras must be used.
- Avoid operating the device in environments with high humidity or unsuitable temperatures.
Technical Specifications
| Inputs | 32 BNC channels, 4 IP channels (up to 36 channels total) |
|---|---|
| Recording Resolution | 8MP Lite, 5MP Lite, 4MP Lite, 1080P, 720P, D1 |
| Frame Rate | 8MP Lite@8fps, 5MP Lite@12fps, 4MP Lite@15fps, 1080P@15fps, 720P@30fps |
| Video Outputs | HDMI (up to 4K), VGA, CVBS |
| Audio | 32-channel audio over BNC, RCA input/output |
| Storage | 2 SATA interfaces (up to 8TB each) |
| Network | RJ45 10/100/1000Mbps port, supports TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP protocols |
| Smart Features | Motion detection, face detection, intrusion detection, auto-tracking |
| Dimensions | 380 × 326 × 53 mm |
| Weight | ≤ 2.6 kg (without HDD) |
