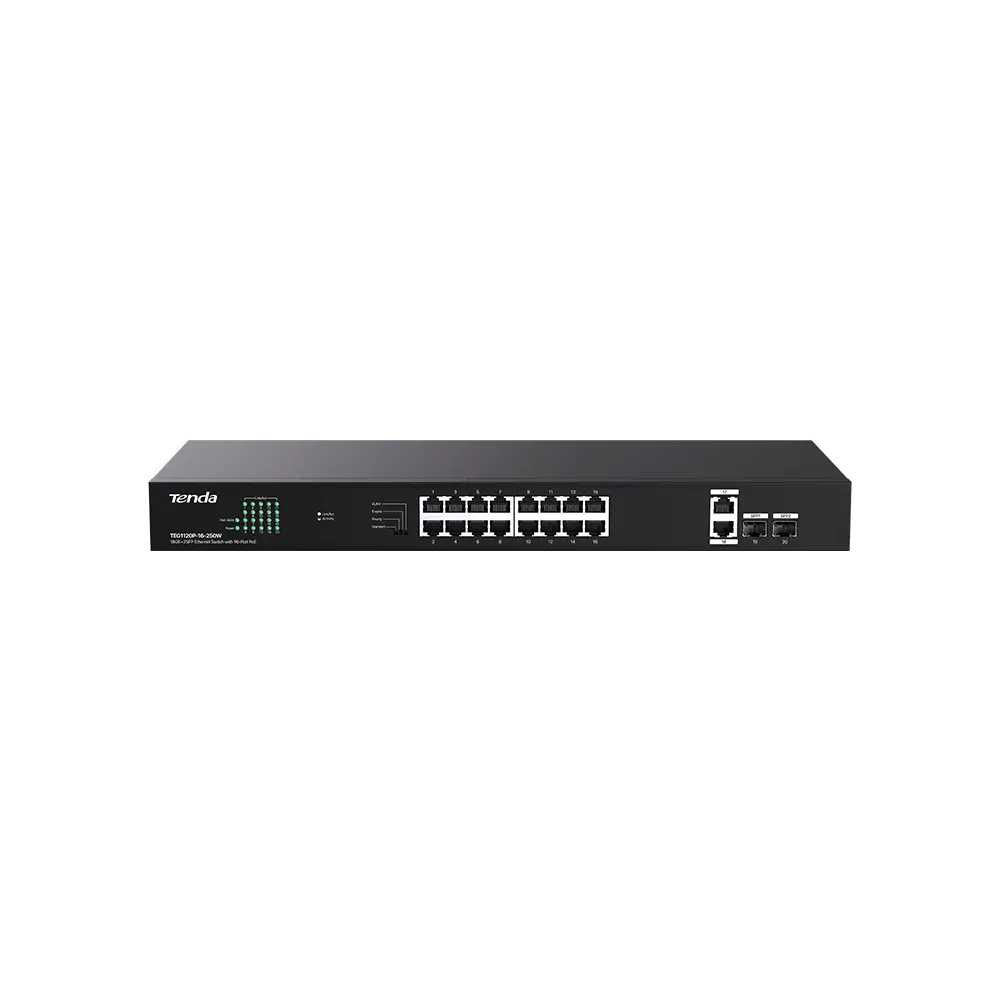

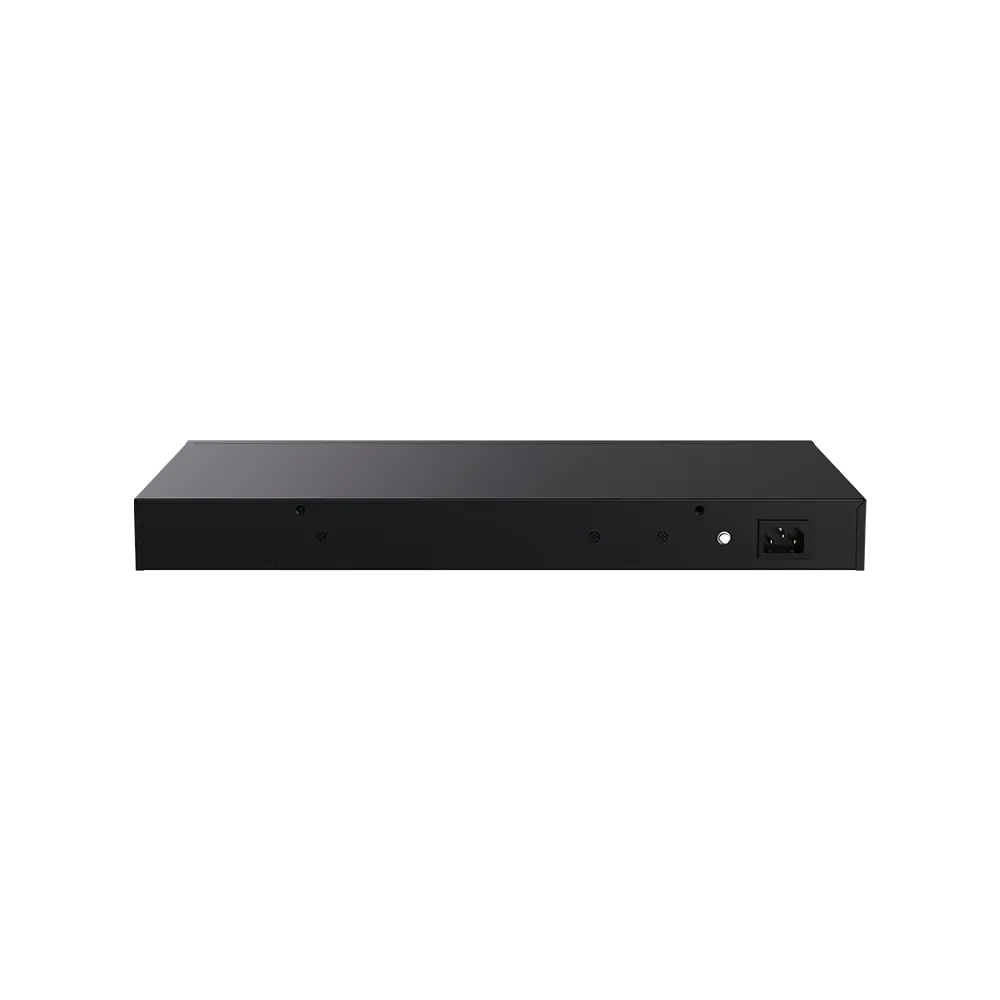

Tenda TEG1120P-16-250W: High-Performance Networking Switch
The TEG1120P-16-250W is an ideal solution for SMBs, hotels, schools, and parks requiring reliable networks supporting surveillance cameras and wireless access points.
Key Applications
- Powering high-definition IP cameras via PoE.
- Providing power to wireless access points and VoIP devices.
- Expanding networks in various environments like offices and schools.
Usage Warnings
- Ensure the total PoE budget (230W) is not exceeded.
- Use CAT5e or better cables for optimal performance.
- Avoid operating the device in humid or unsuitable temperature conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Ports | 16 × 10/100/1000Mbps PoE + 2 × RJ45 + 2 × SFP |
| Total PoE Budget | 230W |
| Max Power per Port | 30W |
| Switching Capacity | 40Gbps |
| Forwarding Rate | 29.8Mpps |
| MAC Address Table | 8K |
| Buffer Memory | 4Mb |
| Operating Modes | Standard / Priority / Extend / VLAN |
| Lightning Protection | 6KV |
| Dimensions | 440 × 178 × 44 mm |
| Operating Temperature | 0°C ~ 45°C |
| Certifications | CE, FCC, RoHS |
