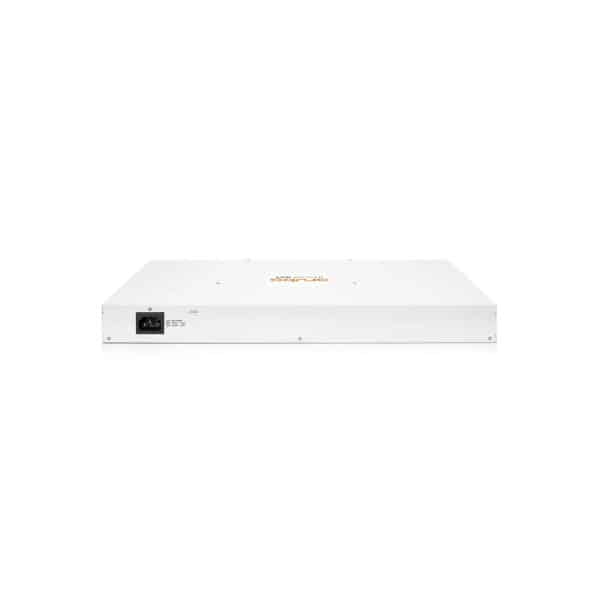

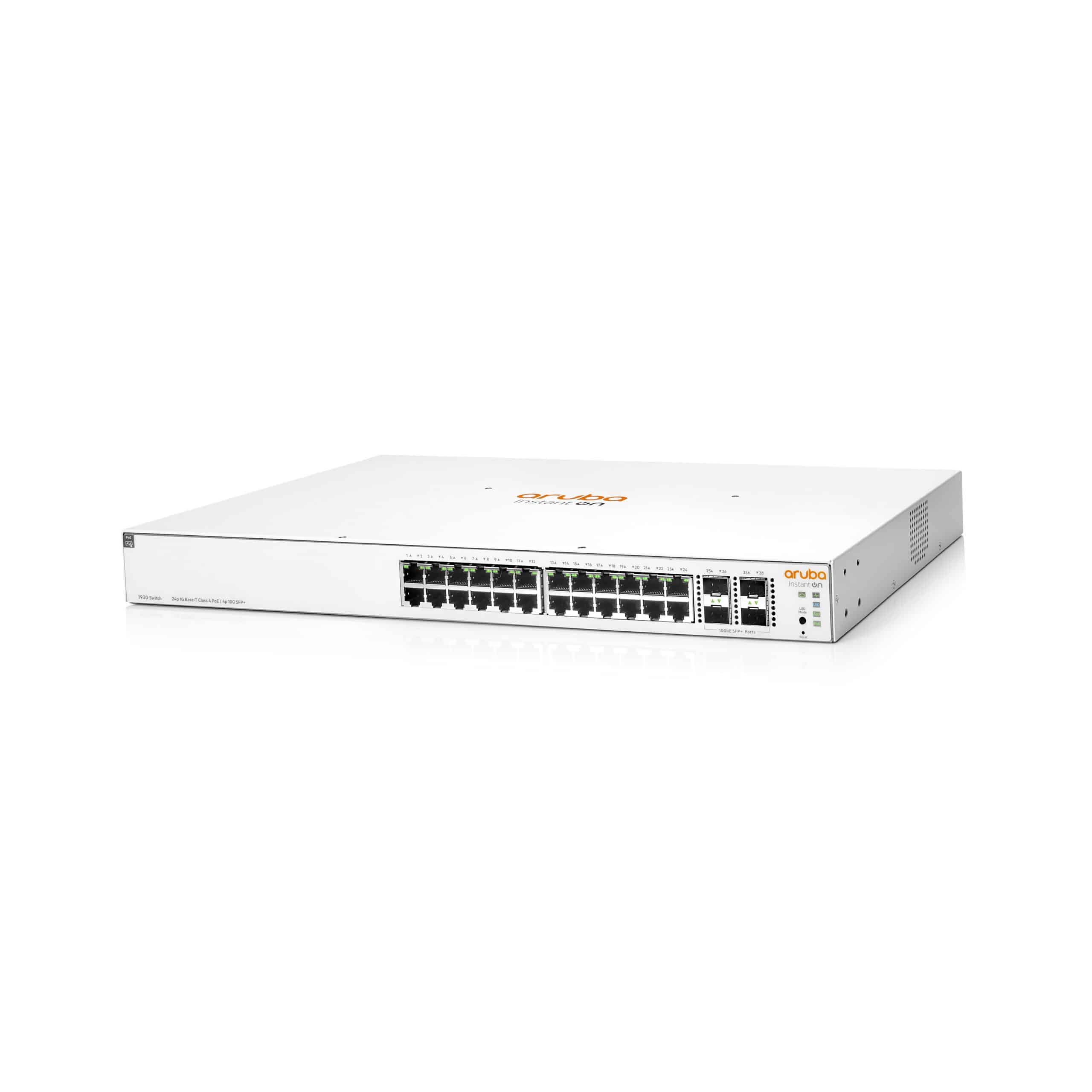

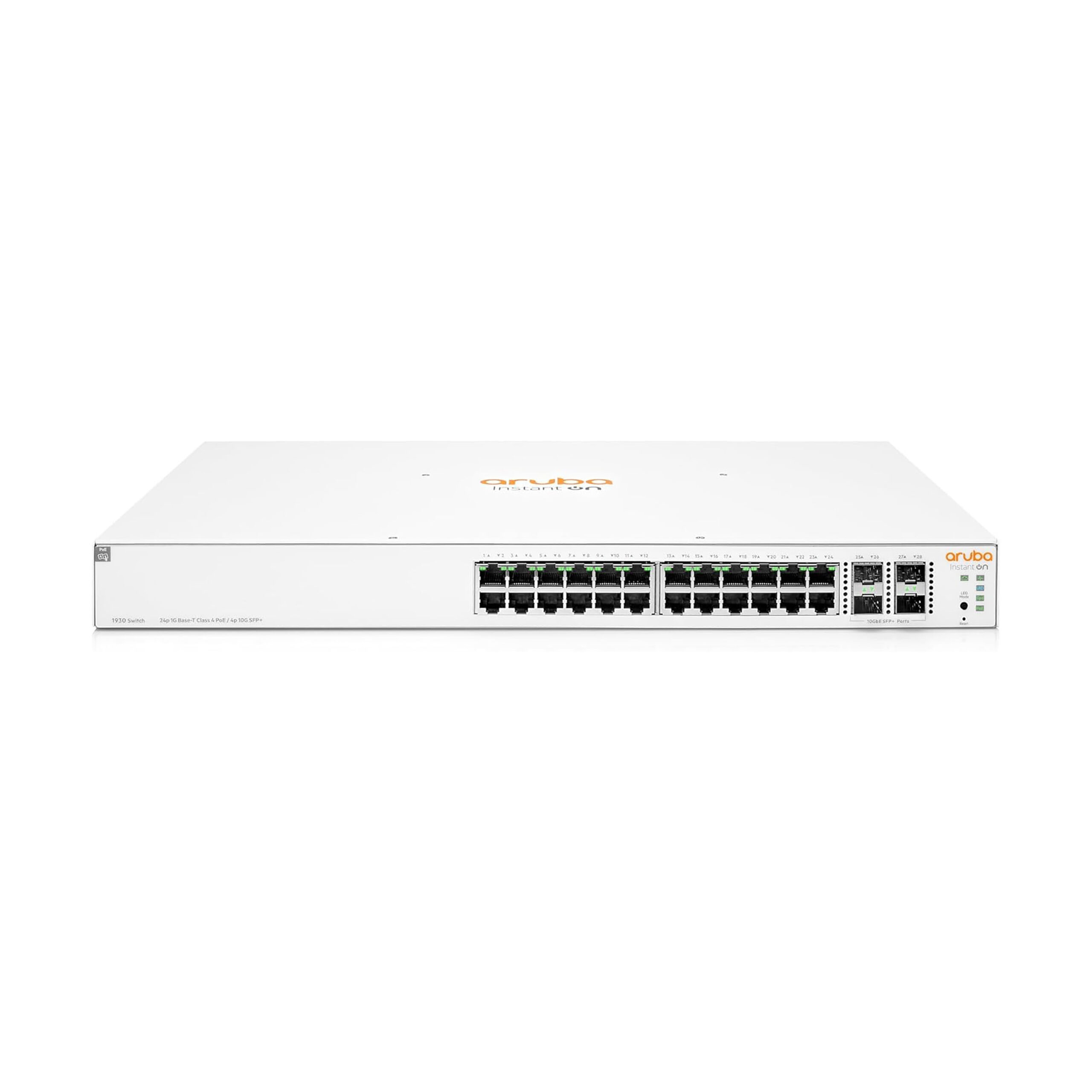

HP Aruba Instant On 1930 JL683A Switch – Professional Performance for Smart Networks
The HP Aruba JL683A switch from the Instant On 1930 series is an ideal choice for small and medium-sized businesses seeking reliable performance and easy management. It features 24 RJ-45 ports at 10/100/1000 Mbps and 4 SFP+ ports at 1/10 Gbps, allowing flexible and high-speed connections.
With support for PoE+ technology delivering a total power budget of up to 195W, this switch can power devices like wireless access points, surveillance cameras, and VoIP phones without the need for separate power sources.
The switch is easily managed via the Aruba Instant On app or through the local web interface, providing flexibility in remote management and monitoring.
Key Applications:
- Small and medium-sized business offices
- Educational institutions
- Cafés and restaurants
- Facilities requiring PoE device connections
Usage Warnings:
- Intended for indoor use only
- Avoid exceeding the power capacity per port
- Ensure proper ventilation around the device
Technical Specifications:
| Specification | Value |
|---|---|
| Ports | 24 × RJ-45 + 4 × SFP+ |
| Speed | 10/100/1000 Mbps |
| PoE+ | 195W total |
| Switching Capacity | 128 Gbps |
| Throughput | 95.23 Mpps |
| Memory | 512 MB SDRAM, 256 MB Flash |
| Dimensions | 44.25 × 26.8 × 4.39 cm |
| Weight | 3.47 kg |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 15% to 95% |
