Product Overview

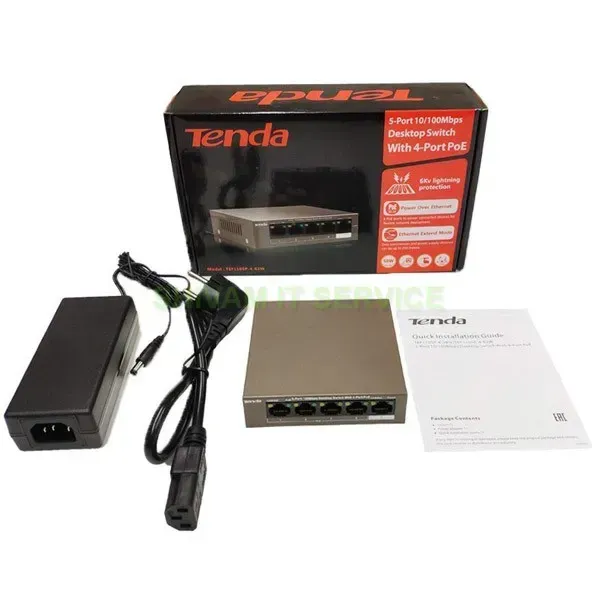

The TEF1105P-4-63W by Tenda is an unmanaged desktop switch featuring 5 RJ45 10/100Mbps ports, with 4 ports supporting PoE according to IEEE 802.3af/at standards. It delivers both power and data over a single Ethernet cable, making it ideal for IP surveillance and wireless access point deployments. The switch boasts a compact metal design and 6KV lightning protection.
Key Applications
- Supplying power and data to IP cameras and wireless access points via a single Ethernet cable.
- Utilizing Extend Mode to increase transmission distance up to 250 meters at 10Mbps.
- Advanced lightning and surge protection to ensure network stability.
Usage Warnings
- Ensure the use of CAT5e or higher cables for optimal performance.
- In Extend Mode, transmission speed is limited to 10Mbps.
- Do not exceed the total PoE power budget of 58W to avoid overloading.
Technical Specifications
| Specification | Details |
|---|---|
| Ports | 5 RJ45 (4 PoE + 1 Data) |
| Standards | IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at |
| Switching Capacity | 1 Gbps |
| Forwarding Rate | 0.74 Mpps |
| MAC Address Table | 1K |
| PoE Power per Port | Up to 30W |
| Total PoE Budget | 58W |
| Lightning Protection | 6KV |
| Dimensions | 100 × 100 × 26 mm |
| Operating Temperature | 0°C to 45°C |
| Operating Humidity | 10% to 90% (non-condensing) |
