Product Overview

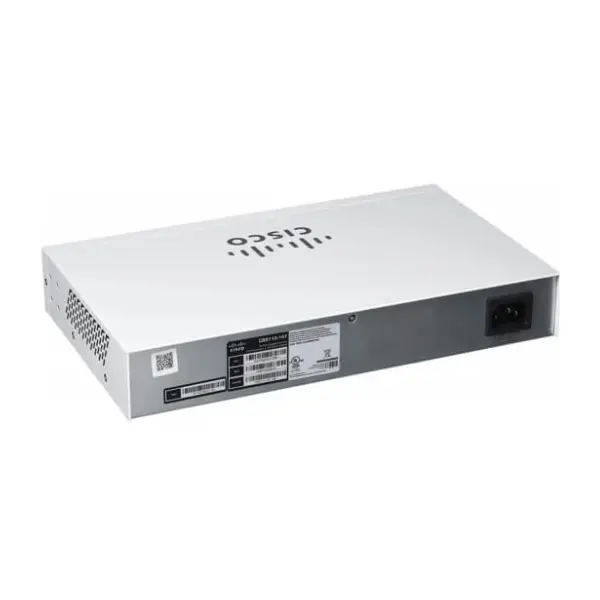

The Cisco CBS110-16T-EU is part of the Cisco Business 110 Series unmanaged switches, offering a cost-effective and reliable solution for small to medium businesses. It delivers fast 16-port Gigabit Ethernet connectivity, fan-less silent operation, and energy efficiency thanks to IEEE 802.3az support.
Key Use Cases
- Quick expansion of small offices or branch networks via plug-and-play simplicity.
- Connecting computers, network printers, wireless access points, and other devices with ease.
- Ideal for noise-sensitive environments like classrooms, open offices, or meeting rooms.
- Includes QoS, loop detection, and cable diagnostics to maintain stable, optimized performance.
Usage Warnings
- This unit does not support Power over Ethernet (PoE) — opt for the “PP” variants if PoE is required.
- Unmanaged design means no configuration capability — it is purely plug-and-play.
- Ensure use of Cat 5e or better cables for consistent full-speed Gigabit performance.
Technical Specifications
| Feature | Specification |
|---|---|
| Switching Capacity | 32 Gbps |
| Packet Rate (64-byte) | 23.8 mpps |
| Ports | 16 × Gigabit RJ-45 |
| Packet Buffer | 2 Mbit |
| Dimensions (W × D × H) | 279 × 170 × 44 mm |
| Max Power Consumption (220 V) | 11.53 W |
| Cooling | Fan-less |
| Processor | ARM 400 MHz, 128 MB RAM |
| LED Indicators | Power, Link/Activity, Gigabit, Cable Diagnostics, Loop Detection |
| Energy Efficiency | IEEE 802.3az |
| Warranty | Limited Lifetime |
