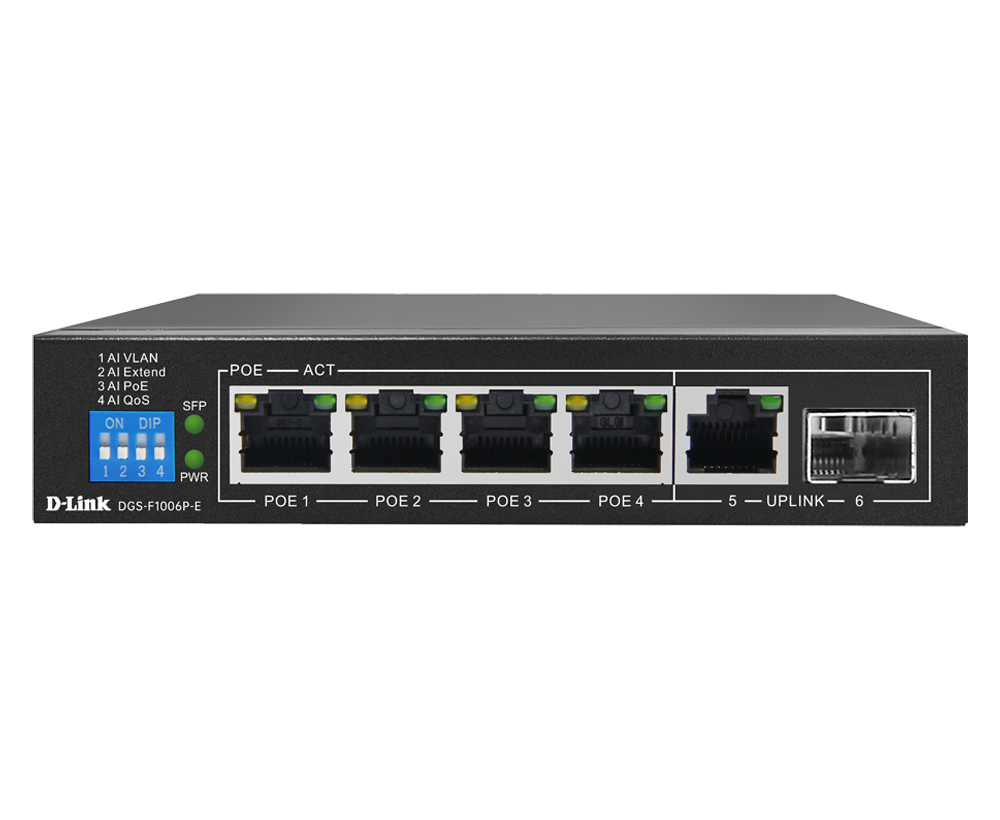

D-Link DGS-F1006P-E – 6-Port Gigabit PoE Unmanaged Switch
The D-Link DGS-F1006P-E is an ideal solution for small to medium-sized businesses requiring network connectivity for devices like cameras, VoIP phones, and wireless access points. This switch offers 4 PoE ports supporting up to 30W each, eliminating the need for separate power sources.
Key Applications:
- Surveillance cameras
- Wireless access points
- VoIP phones
- Small and medium office networks
Usage Warnings:
- Ensure the use of Cat5e or Cat6 cables for maximum transmission distance
- Do not exceed a total PoE power consumption of 60W
- Avoid exposing the device to temperatures or humidity beyond recommended ranges
Technical Specifications:
| Number of Ports | 6 (4 PoE + 2 Uplink) |
|---|---|
| Data Transfer Rate | 10/100/1000 Mbps |
| PoE Standards | IEEE 802.3af/at |
| Max PoE Power per Port | 30W |
| Total Power Budget | 60W |
| Transmission Distance | Up to 250 meters |
| Operating Modes | Extend, VLAN, QoS, PoE |
| Surge Protection | 6KV |
| Dimensions | 135 × 75 × 27 mm |
| Weight | 0.75 kg |
| Operating Temperature | 0 to 40°C |
| Operating Humidity | 0% to 95% (non-condensing) |
