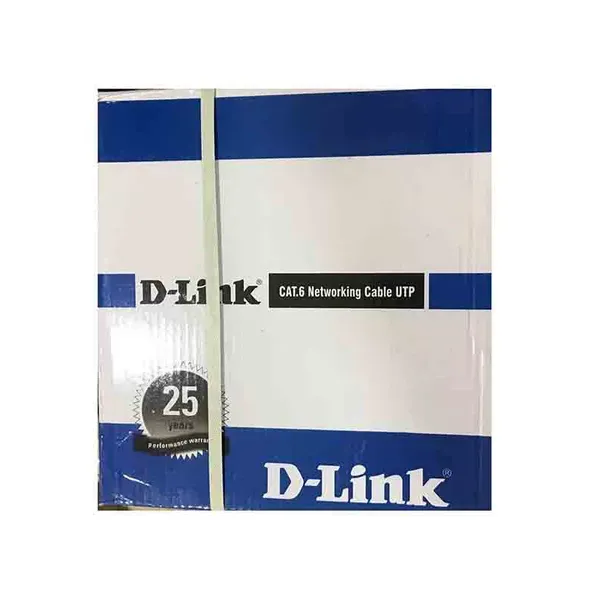

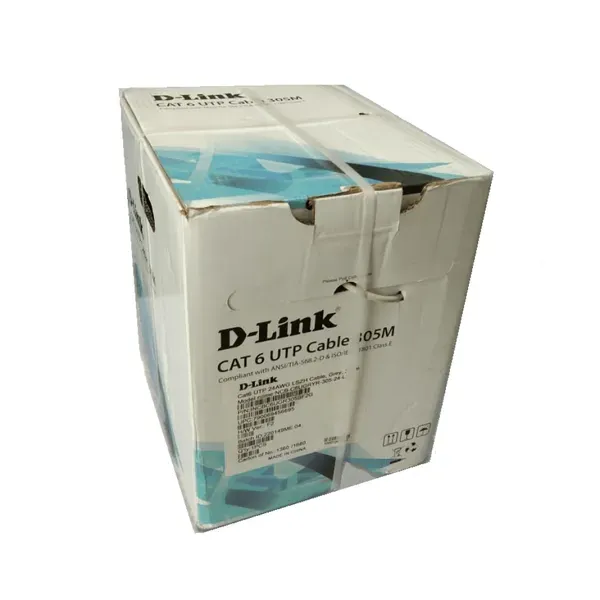

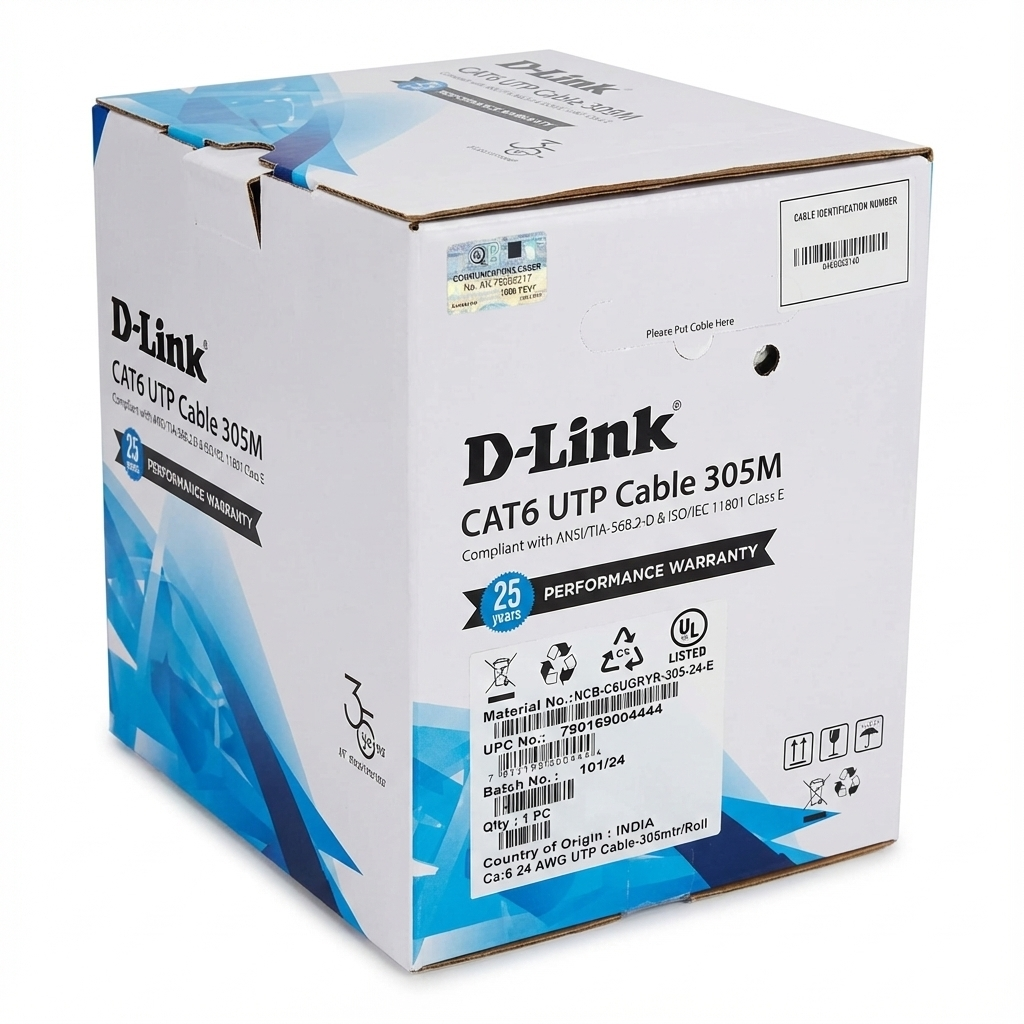

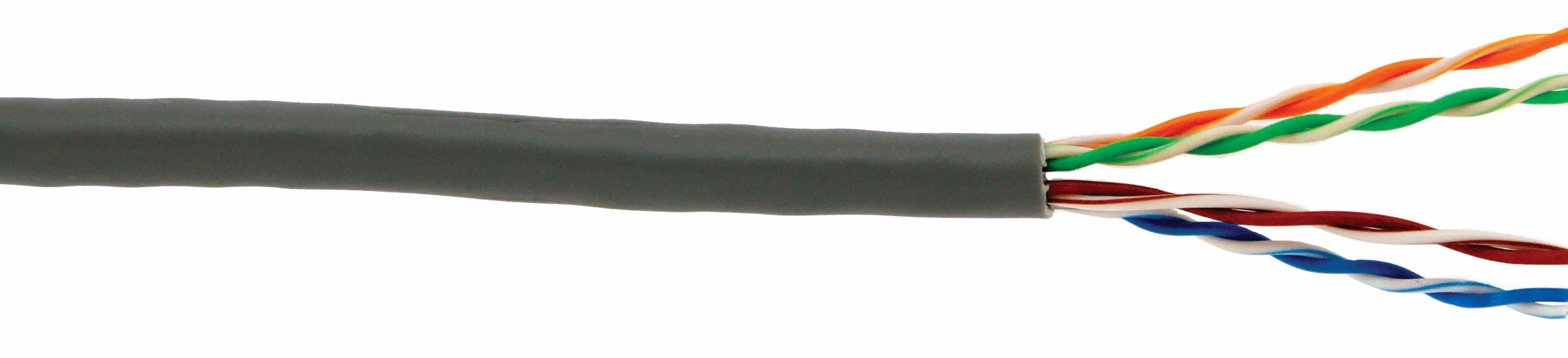

D-Link Cat6 UTP Solid Copper Cable 24AWG – 305M Roll
The D-Link Cat6 UTP cable is the ideal solution for high-speed network connections, offering excellent data transmission performance up to 1 Gbps. It features a durable design with high-quality solid copper conductors, ensuring reduced interference and improved signal quality.
Key Applications:
- Office and enterprise networks
- Data centers
- Video surveillance systems (CCTV)
- High-speed internet connections
Usage Warnings:
- Avoid bending the cable sharply to prevent internal wire damage.
- Do not exceed the recommended pulling force during installation.
- Store in a dry place away from direct heat sources.
Technical Specifications:
| Specification | Value |
|---|---|
| Cable Type | UTP (Unshielded Twisted Pair) |
| Pairs | 4 pairs |
| Conductor Material | Solid Bare Copper |
| Conductor Size | 24AWG (0.520 mm) |
| Insulation Material | HD-PE |
| Jacket Material | PVC UL94V-0 |
| Cable Diameter | 5.7 mm |
| Color | Gray |
| Length | 305 meters |
| Operating Temperature | -20°C to +70°C |
| Frequency | Up to 250 MHz |
| Supported Speed | 1 Gbps |
| Standards | TIA/EIA-568C.2, IEC 60603-7-4 |
