Introduction

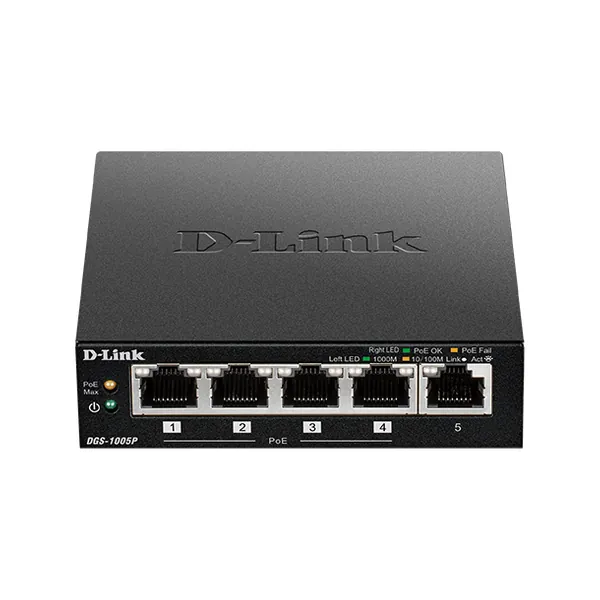

The D-Link DGS-1005P is an unmanaged desktop Gigabit switch featuring five Ethernet ports, four of which support PoE+ delivering up to 30 W per port with a 60 W total power budget. It’s ideal for powering devices like IP cameras, VoIP phones, or wireless access points using a single cable.
Key Uses
- Powering IP surveillance cameras in homes or small offices.
- Powering wireless access points (AP) via a single Ethernet cable.
- Connecting and powering VoIP phones efficiently.
- Expanding network ports where electrical outlets are scarce.
Usage Warnings
- Ensure total power usage does not exceed the 60 W PoE budget.
- Allow at least 10 cm of clearance on both sides for passive cooling, despite fanless design.
- Install in a cool, dry area away from strong electromagnetic sources. :contentReference[oaicite:16]{index=16}
Technical Specifications Table
| Specification | Details |
|---|---|
| Ports | 5 × 10/100/1000 Mbps (4 PoE+ ports) |
| PoE Standards | IEEE 802.3af & IEEE 802.3at |
| PoE per Port | Up to 30 W |
| Total PoE Budget | 60 W |
| Switching Fabric | 10 Gbps |
| Green Features | EEE, link status detection, cable-length detection :contentReference[oaicite:17]{index=17} |
| Design & Operation | Compact, fanless, silent, plug-and-play |
| Weight | ~0.26 kg (9.17 oz) :contentReference[oaicite:18]{index=18} |
| Dimensions | 100 × 98 × 28 mm (3.94 × 3.86 × 1.10 in) :contentReference[oaicite:19]{index=19} |
| Power Input | External 53.5 V / 1.2 A DC adapter :contentReference[oaicite:20]{index=20} |
_01.webp)
