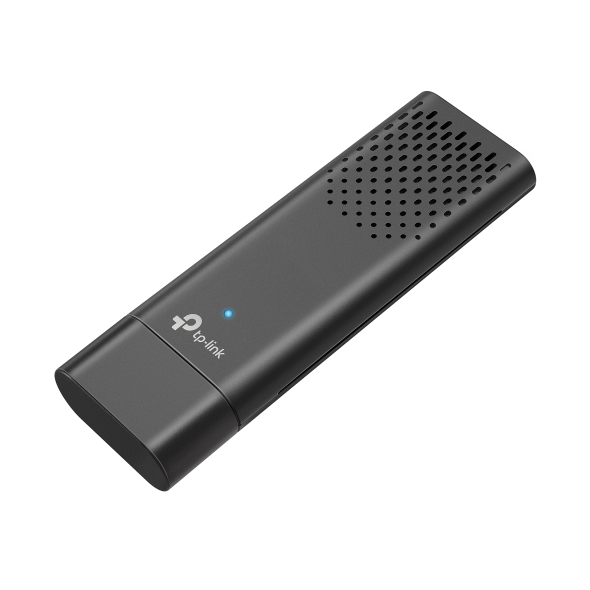

TP-Link Archer TX20U Plus – AX1800 Wi-Fi 6 USB Adapter
The TP-Link Archer TX20U Plus is an AX1800 dual-band Wi-Fi 6 USB adapter that brings fast, reliable, and low-latency wireless connectivity to your PC. Featuring dual high-gain external antennas, it ensures stronger signal reception—even from a distance.
Key Uses
- Upgrade desktop or PC to Wi-Fi 6 without needing a new network card.
- Enjoy smoother 4K streaming, high-fps gaming, and seamless video conferencing.
- Enhance Wi-Fi performance in crowded or congested environments using MU-MIMO and OFDMA technologies.
Usage Warnings
- Connect to a USB 3.0 port for optimal performance; USB 2.0 may significantly limit speeds.
- Ensure drivers are installed (automatic or via TP-Link’s download page); failure to install drivers may prevent proper operation.
- Hardware version varies by region—use the correct datasheet or manual for your version.
Technical Specifications
| Feature | Specification |
|---|---|
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Max Speed (5 GHz) | Up to 1201 Mbps (802.11ax) |
| Max Speed (2.4 GHz) | Up to 574 Mbps (802.11ax) |
| Total Throughput | Up to 1775 Mb/s |

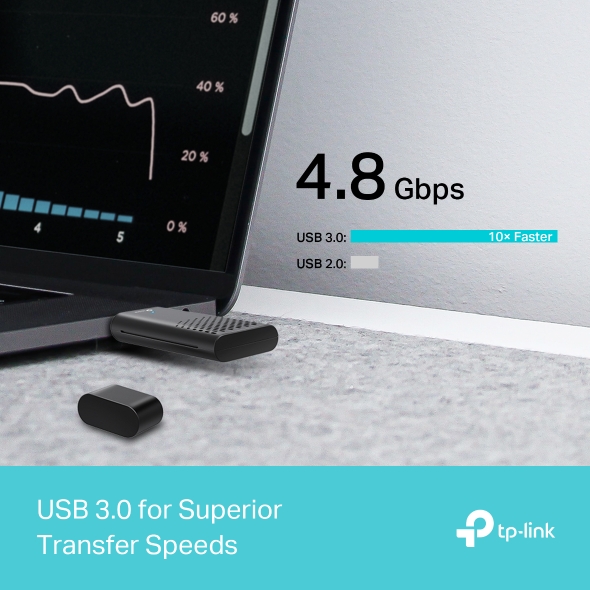

| USB Port | USB-A 3.0 (compatible with USB 3.1/3.2 Gen 1) |

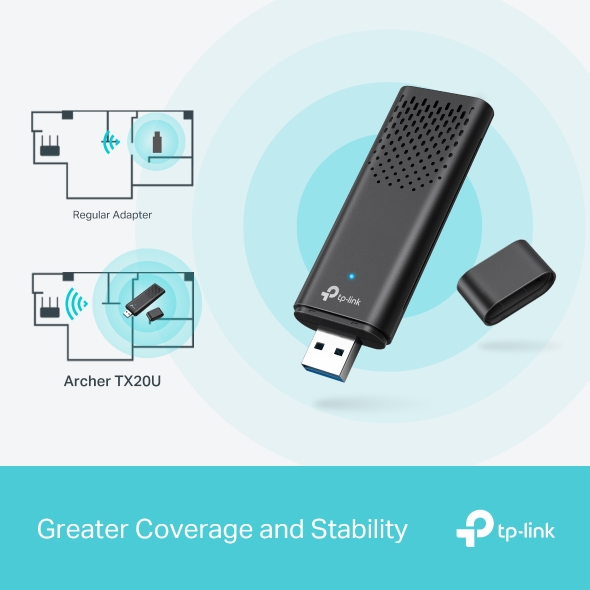

| Antennas | 2 × high-gain external, adjustable (beamforming) |
| Technologies | MU-MIMO, OFDMA, Beamforming |
| Security | WEP, WPA, WPA2, WPA3 |
| OS Compatibility | Windows 10, Windows 11 |
| Physical Dimensions | 156.3 × 84 × 19.2 mm; Cable length ~1 m (3.3 ft) |
