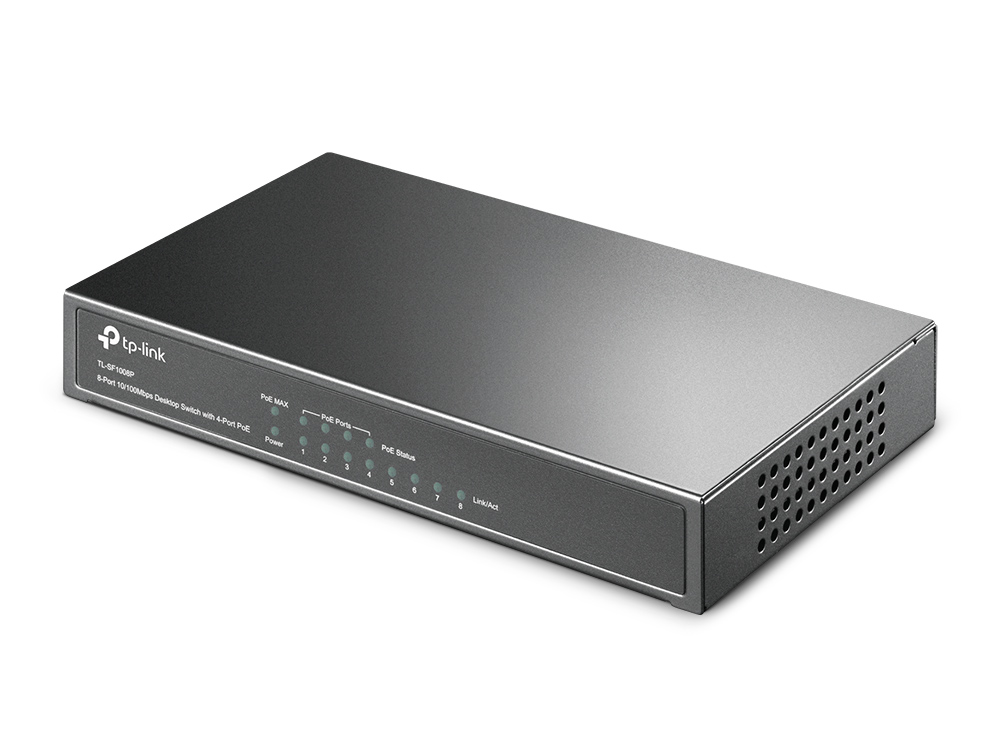

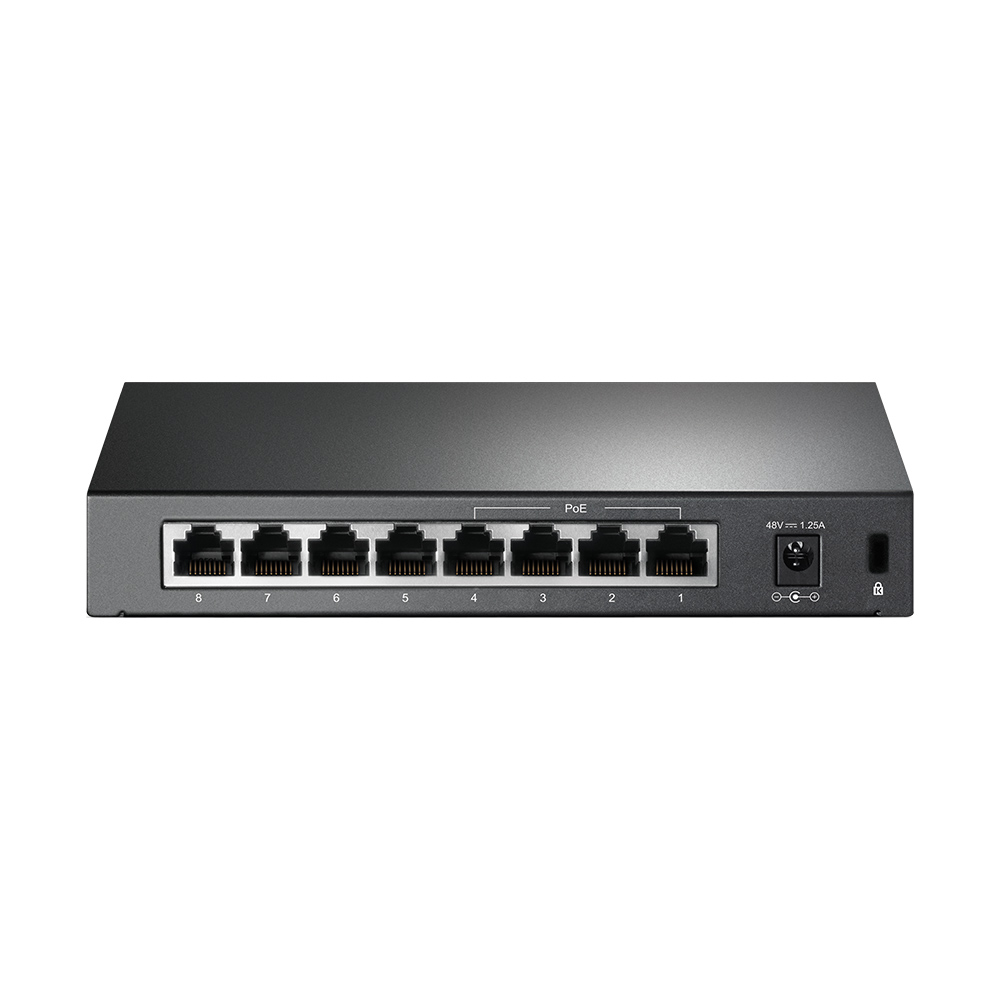

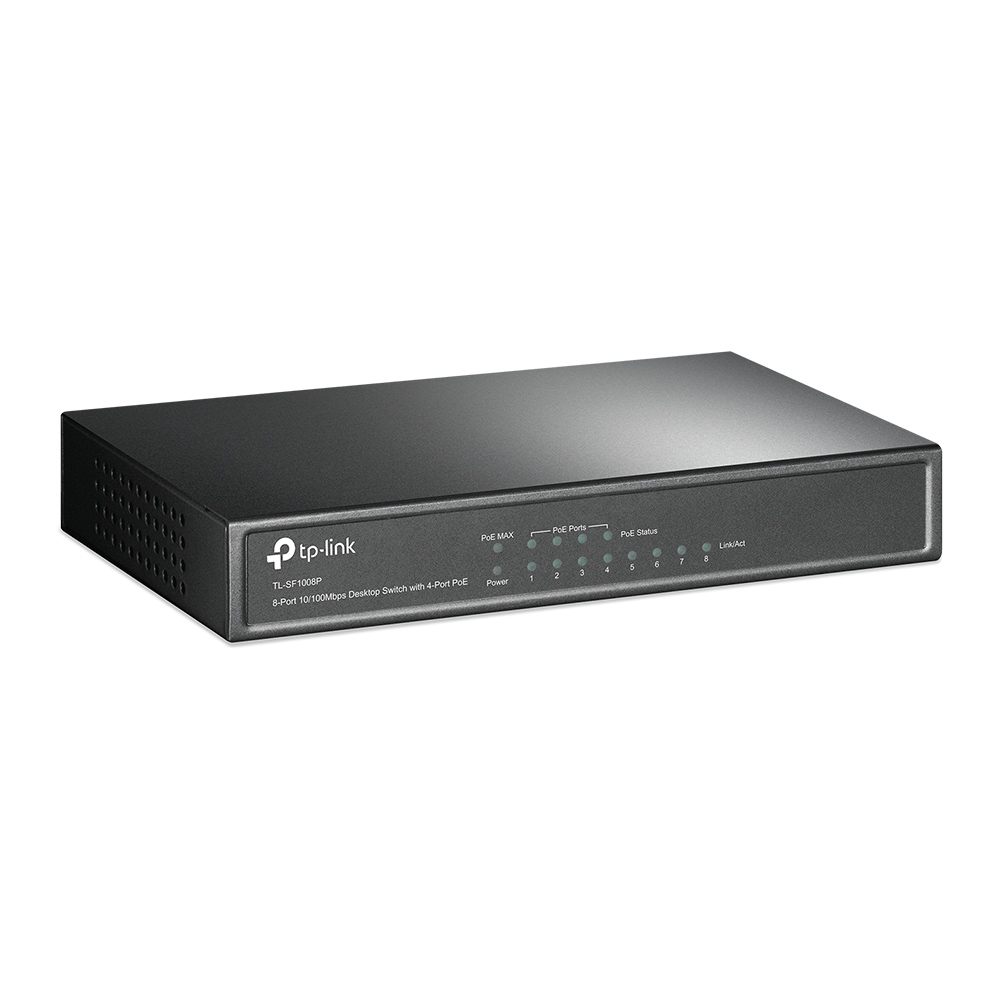

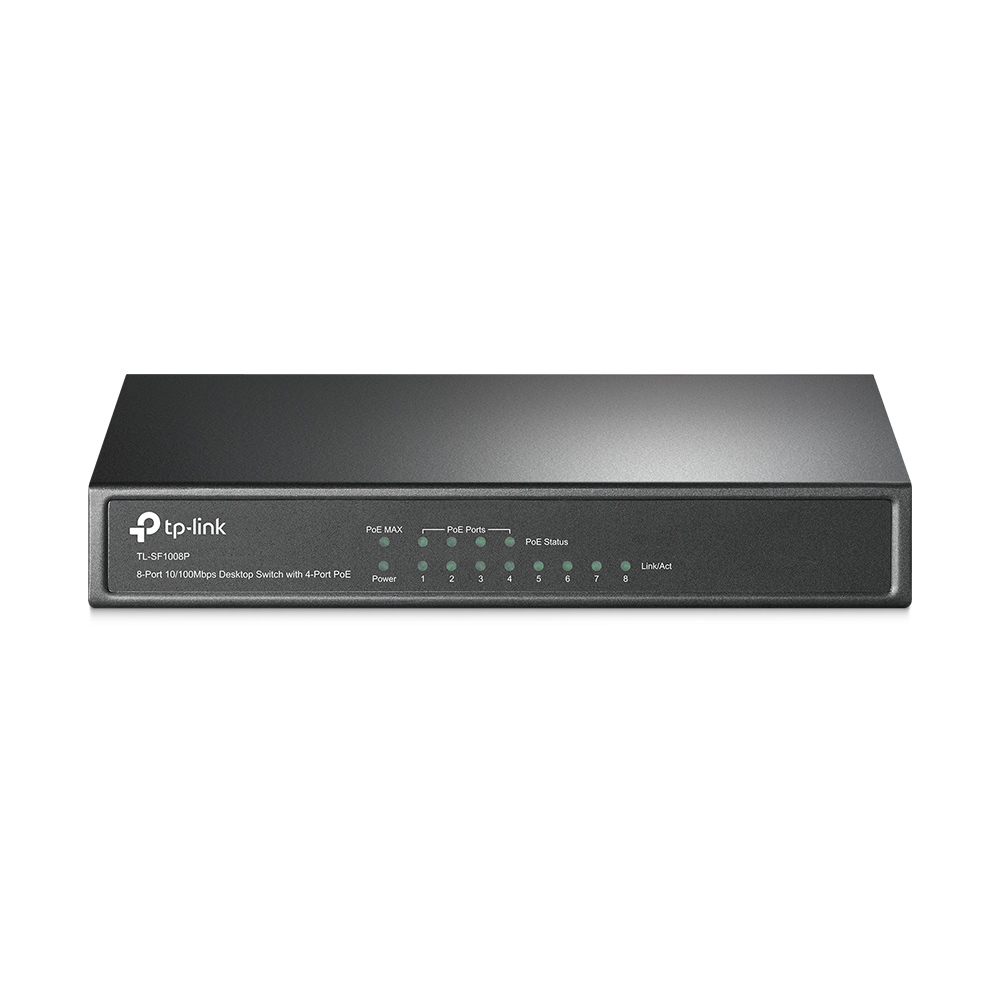

TP-Link TL-SF1008P Overview
The TL-SF1008P is an unmanaged, desktop network switch from TP-Link, tailored for small offices or home use. It features eight 10/100Mbps RJ-45 ports, including four PoE+ ports that deliver both power and data over a single Ethernet cable.
Key Applications
- Powering IP cameras without requiring separate power sources.
- Connecting IP phones and wireless access points via a single cable—data and power combined.
- Efficient remote powering of network devices without local outlets.
Usage Warnings
- Only connect devices compliant with IEEE 802.3af/at standards.
- If total PoE load exceeds available power budget, lower-priority ports will be turned off to protect the system.
- Do not disassemble or expose the unit to water or extreme heat.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Unmanaged Desktop Switch |
| Ports | 8 × 10/100Mbps RJ-45 |
| PoE+ Ports | 4 ports (Port 1–4) |
| PoE Standard | IEEE 802.3af/at |
| Max PoE per Port | Up to 30 W |
| Total PoE Budget | Up to 66 W |
| Extend Mode | Supports up to 250 m transmission (at 10 Mbps) |
| Priority Mode | Ports 1–2 get higher priority for mission-critical traffic |
| PoE Auto-Recovery | Automatically reboots unresponsive PD devices |
| Power Efficiency | Fanless, silent operation |
| Setup | Plug and Play, no configuration required |
| Chassis | Metal, rugged design |
