Description

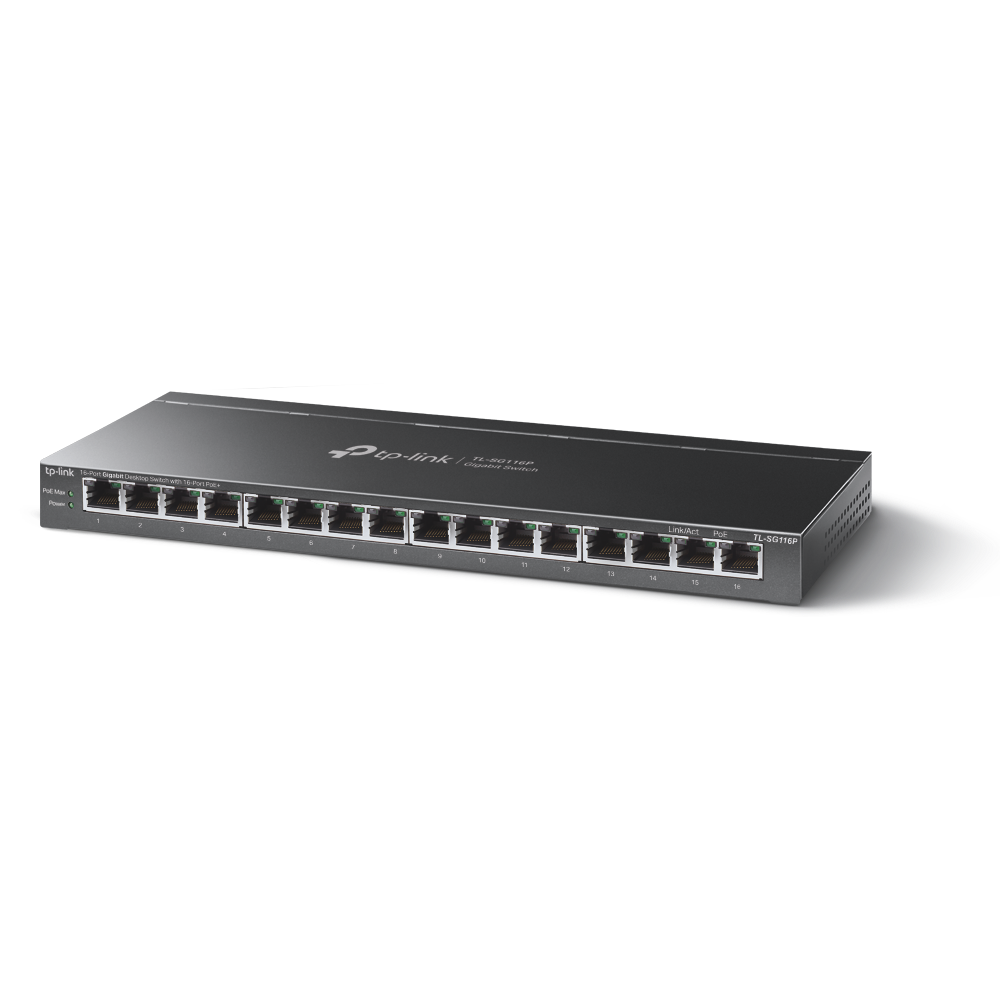

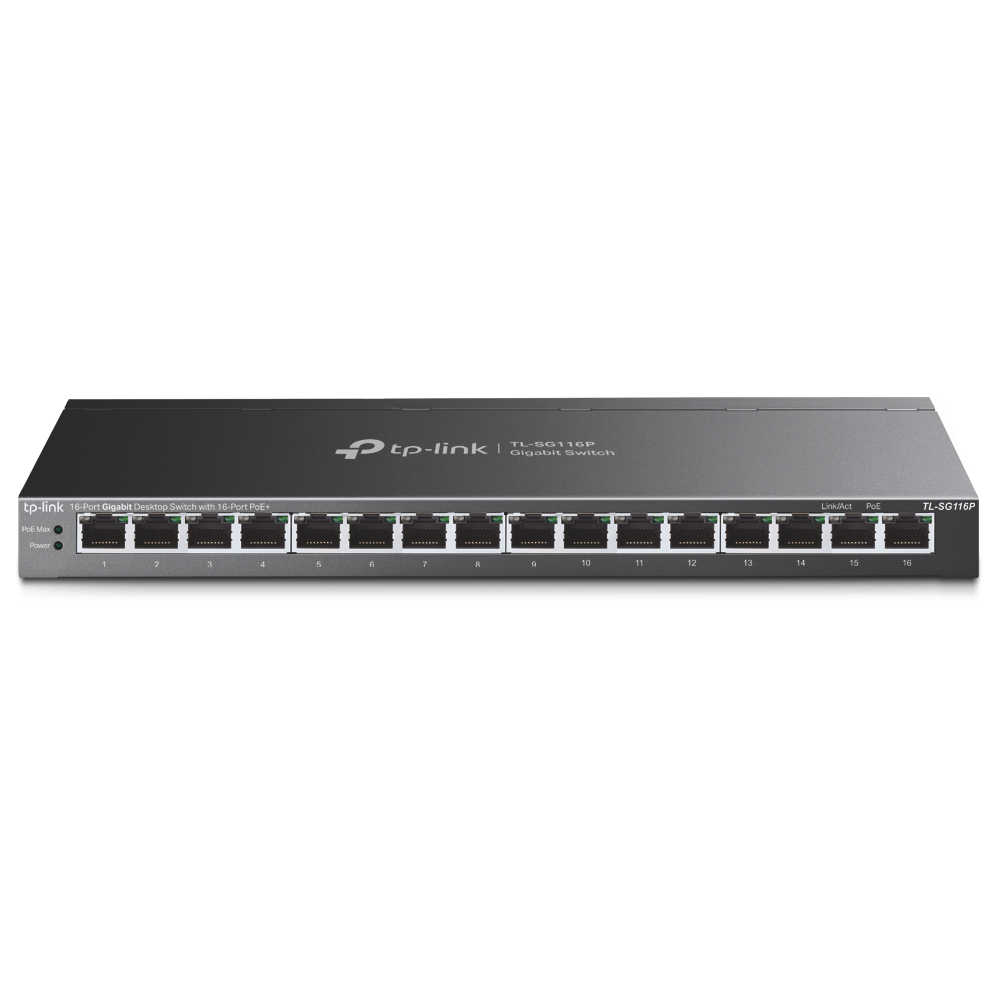

tl-sg11D6p
| HARDWARE FEATURES | |
|---|---|
| Interface | • 16× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 2.43 A) |
| Packet Forwarding Rate | 23.8 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–16 • Power Supply: 120 W |
| Mac Address Table | 8K, Auto-learning, Auto-aging |
| Switching Capacity | 32 Gbps |
| Dimensions ( W x D x H ) | 11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm) |
| Max. Power Consumption | • 11.72 W (220 V / 50 Hz no PD connected) / 11.56 W (110 V / 60 Hz no PD connected) • 142.51 W (220 V / 50 Hz with 120 W* PD connected) / 144.28 W (110 V / 60 Hz with 120 W* PD connected) |
| Max Heat Dissipation | • 39.85 BTU/h (220 V / 50 Hz no PD connected) / 39.31 BTU/h (110 V / 60 Hz no PD connected) • 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) / 490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–4) • Isolation Mode Button (Ports 1–7 / 8-14) • PoE Auto Recovery (Ports 1-16) • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • TL-SG116P • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Features:
- 120 W PoE Budget : 16 × 802.3af/at-compliant PoE+ ports with a total power supply of 120 W*.
- Gigabit Ethernet Ports: 16 x gigabit PoE+ RJ45 ports provide high-speed connections.
- Extended Distance Transmission: Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode: Priority Mode ensures high priority of ports 1–4 to guarantee the quality of the sensitive applications
- Isolation Mode: Isolation Mode allows one-click client traffic separation for higher security and performance.
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and Play: Plug and play with no configuration required
