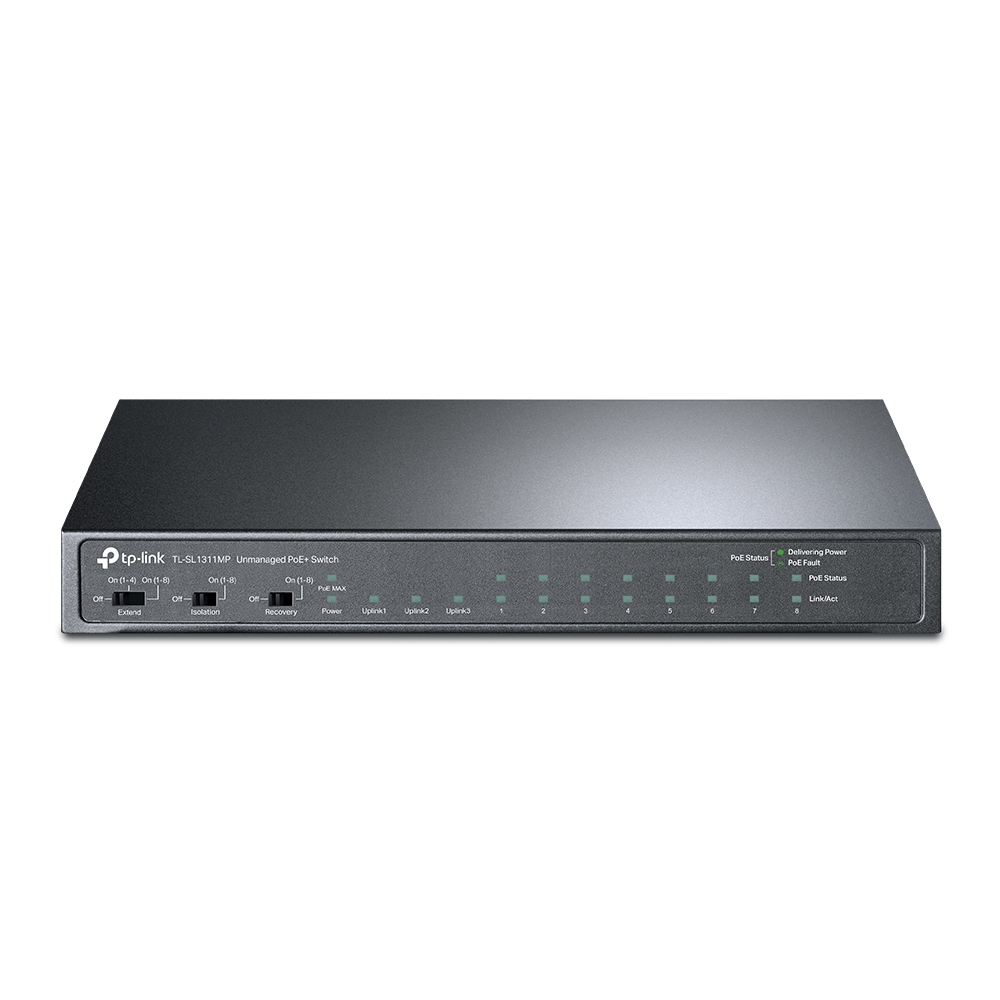

TP-Link TL-SL1311MP Switch
Product Overview:
The TL-SL1311MP is an unmanaged, plug-and-play Ethernet switch from TP-Link, featuring 11 ports: 8 PoE+ 10/100 Mbps ports, 2 Gigabit RJ-45 ports, and 1 Gigabit SFP slot.
Key Uses:
- Delivers both power and data to devices like IP cameras, access points, and IP phones via a single Ethernet cable.
- Offers extended reach up to 250 m using Extend Mode—ideal for wide-area surveillance deployments.
- Enhances security with Isolation Mode to segregate traffic and avoid interference or simple attacks.
- Maintains uptime with PoE Auto Recovery that reboots unresponsive devices automatically.
- Noise-free operation thanks to fanless design and durable metal housing.
Usage Warnings:
- Do not exceed total PoE output of 124 W across all ports.
- Extend Mode limits throughput to 10 Mbps per port.
- Intelligent power management may deprioritize lower-priority devices when power budget is exceeded.
Technical Specifications Table
| Feature | Detail |
|---|---|
| Ports | 8× 10/100 Mbps PoE+ RJ-45, 2× Gigabit RJ-45, 1× Gigabit SFP |
| PoE Standard | IEEE 802.3af/at, up to 30 W per port, 124 W total budget |
| Special Modes | Extend Mode (up to 250 m at 10 Mbps), Isolation Mode, PoE Auto Recovery |
| Performance | Switching capacity 7.6 Gbps, forwarding rate 5.6544 Mpps, MAC table 2 K, Jumbo Frame 16 KB |
| Power Consumption | 5.95 W without PoE load, up to 140.92 W with full PoE |
| Dimensions | 209 × 126 × 26 mm |
| Heat Dissipation | 20.29 BTU/h idle, up to 480.54 BTU/h under full PoE |
| Design | Metal housing, fanless, wall-mountable support |
