Product Overview

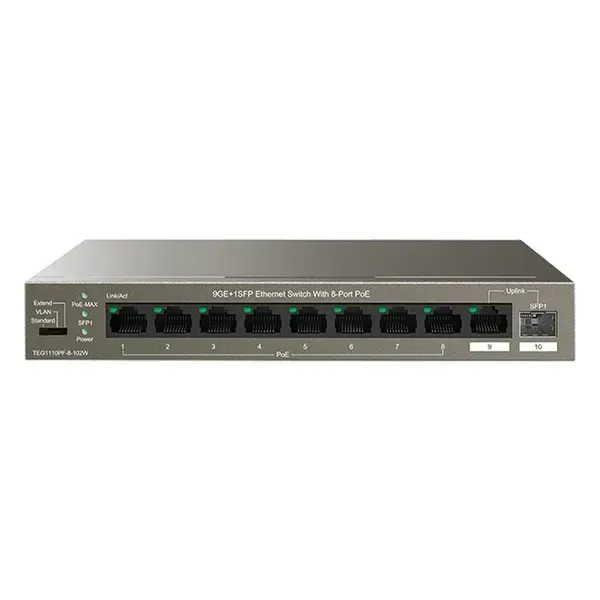

The Tenda TEG1110PF-8-102W is an unmanaged 10-port Gigabit Ethernet switch, featuring 8 PoE ports compliant with IEEE 802.3af/at standards, allowing seamless connection and power supply to devices like HD cameras and wireless access points.
Key Applications:
- Video surveillance systems (CCTV).
- Small and medium-sized business networks.
- Hotels, restaurants, and educational institutions.
Usage Warnings:
- Ensure the total PoE budget (92W) is not exceeded to maintain optimal performance.
- It’s recommended to use CAT5e or higher cables for best results.
Technical Specifications Table:
| Specification | Details |
|---|---|
| Supported Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at |
| Ports | 8 × 10/100/1000 Mbps (Data/Power), 1 × 10/100/1000 Mbps (Data), 1 × 100/1000 Mbps SFP |
| Switching Capacity | 20 Gbps |
| Forwarding Rate | 14.9 Mpps |
| MAC Address Table | 16K |
| Total PoE Budget | 92W |
| Lightning Protection | 6KV for ports and power |
| Dimensions | 177.5 × 104 × 26 mm |
| Mounting Options | Desktop or wall-mounted |
