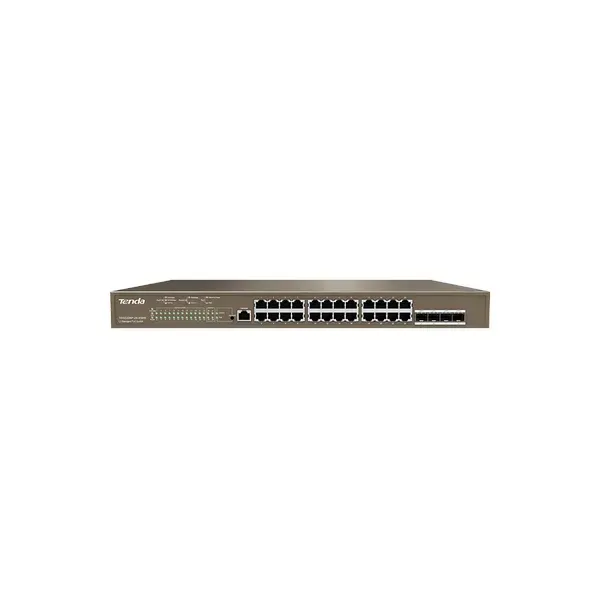

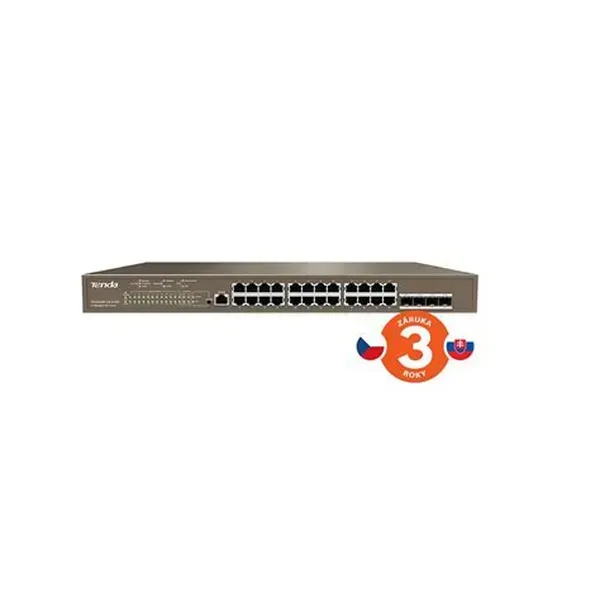

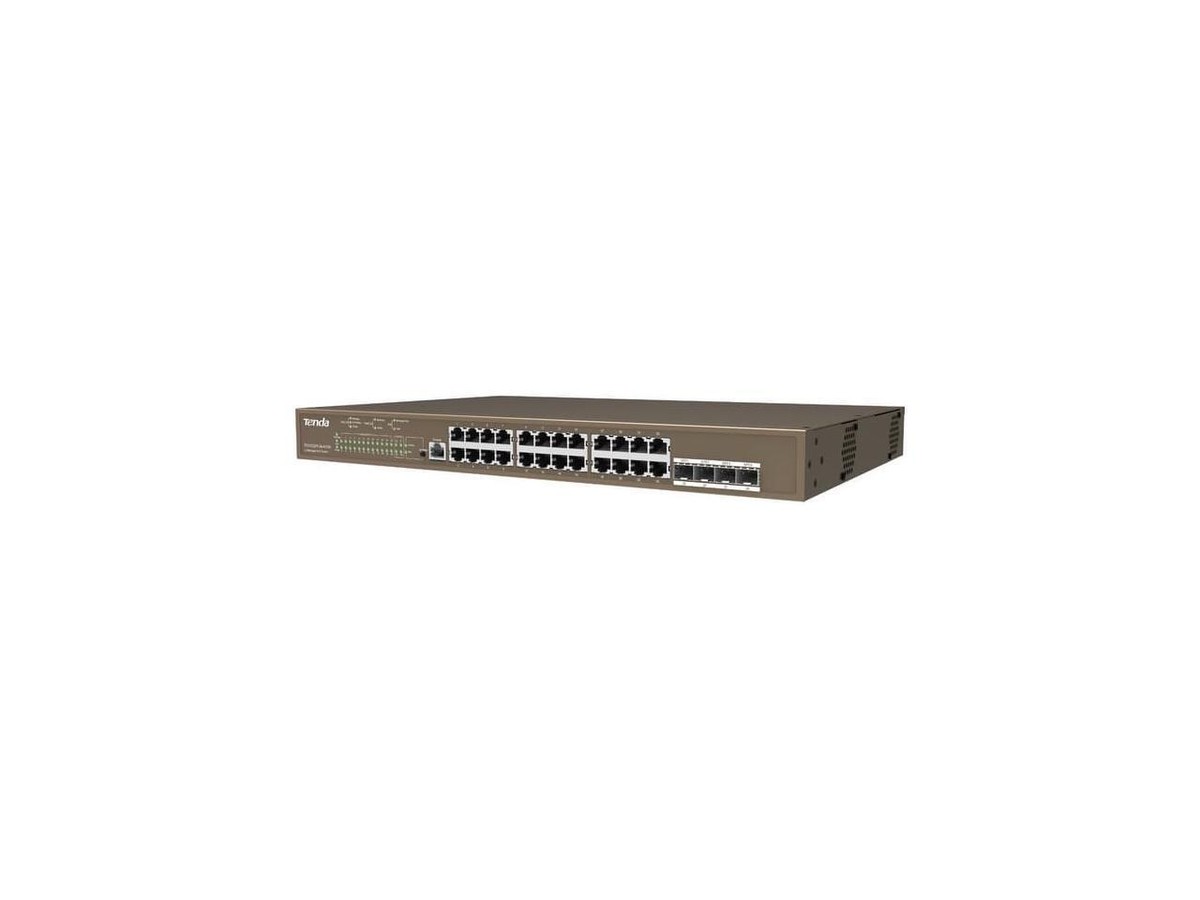

Tenda TEG5328P-24-410W L3 Managed PoE Switch
The Tenda TEG5328P-24-410W is an ideal solution for medium to large-scale networks, offering 24 Gigabit PoE ports compliant with IEEE 802.3af/at standards, along with 4 x 10G SFP+ ports for flexible fiber connectivity. With a total power budget of up to 410W, it can power a wide range of devices such as access points and surveillance cameras.
Key Applications:
- Enterprise and office networks.
- Video surveillance systems.
- Educational institutions.
- Small to medium data centers.
Usage Warnings:
- Avoid exceeding the maximum power per port (30W) or the total power budget (370W).
- Ensure proper ventilation to prevent overheating.
- Use high-quality network cables for optimal performance.
Technical Specifications:
| Specification | Value |
|---|---|
| RJ45 Ports | 24 × 10/100/1000 Mbps |
| SFP+ Ports | 4 × 10G |
| Power per Port | Up to 30W |
| Total Power Budget | 370W |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.7 Mpps |
| MAC Address Table | 16K |
| VLAN Support | 802.1Q, Access/Trunk/Hybrid |
| Routing Protocols | Static IPv4/IPv6, ARP |
| Lightning Protection | 6kV for ports and power |
| Dimensions | 440 × 284 × 44 mm |
| Operating Temperature | 0°C to 45°C |
