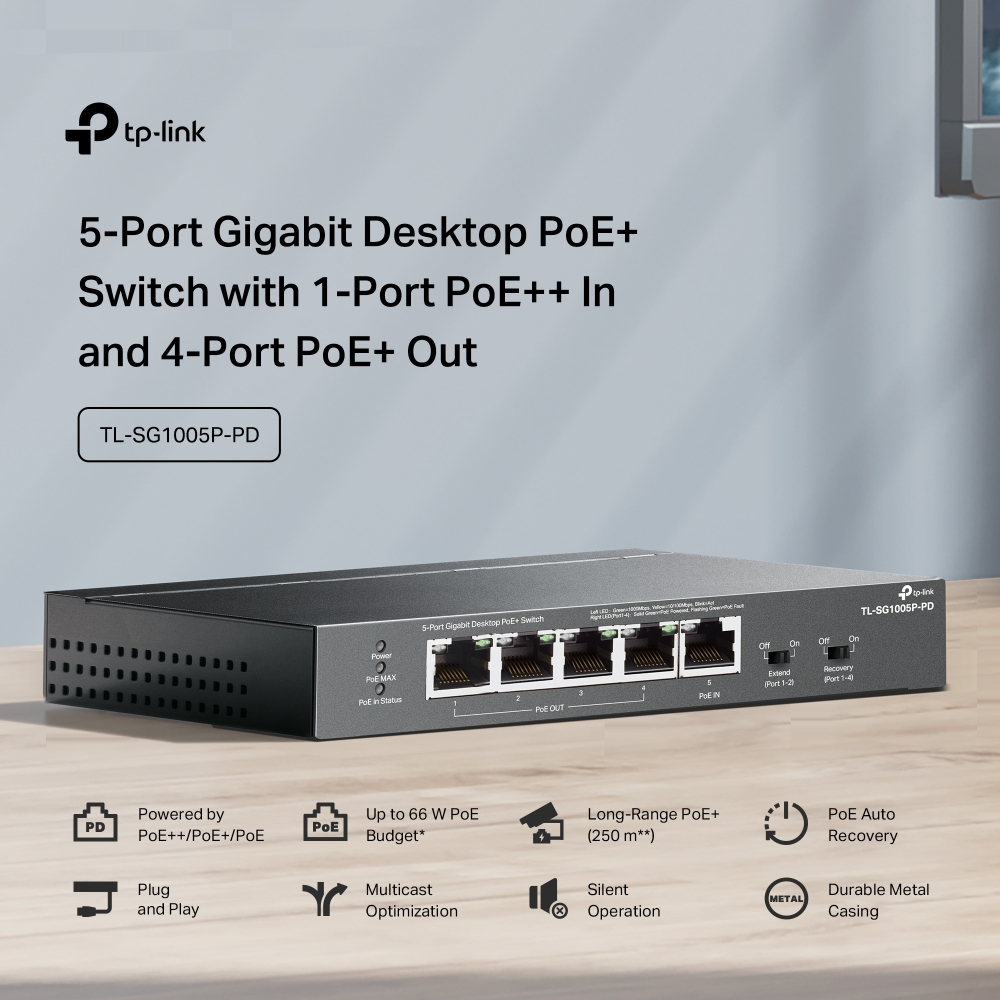

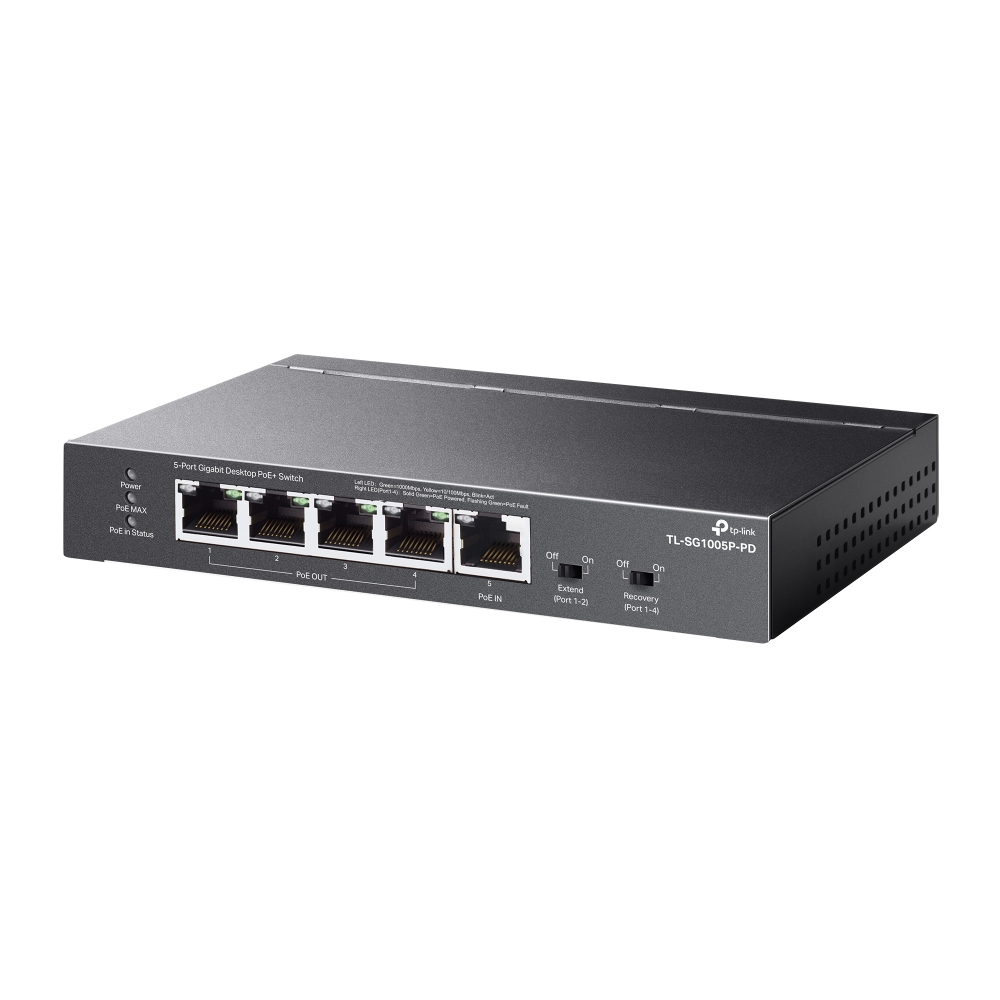

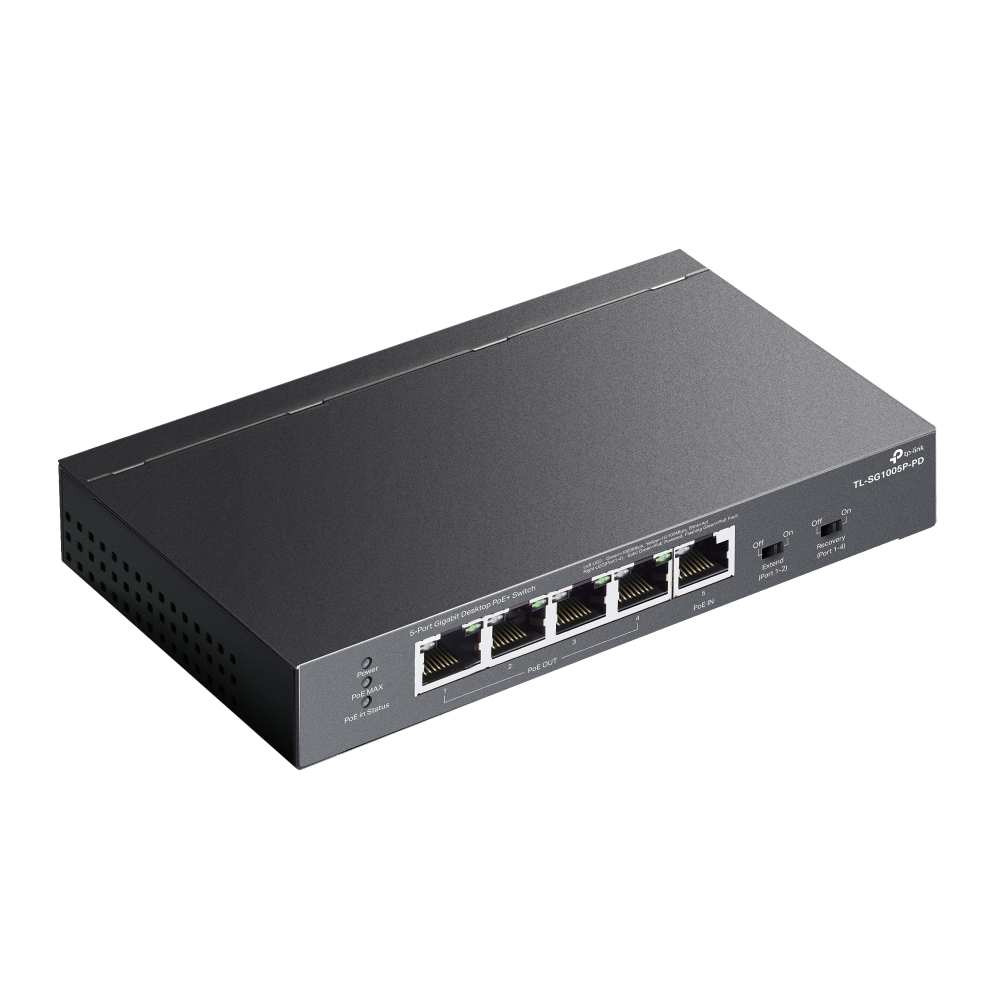

TP-Link TL-SG1005P-PD Desktop PoE Switch

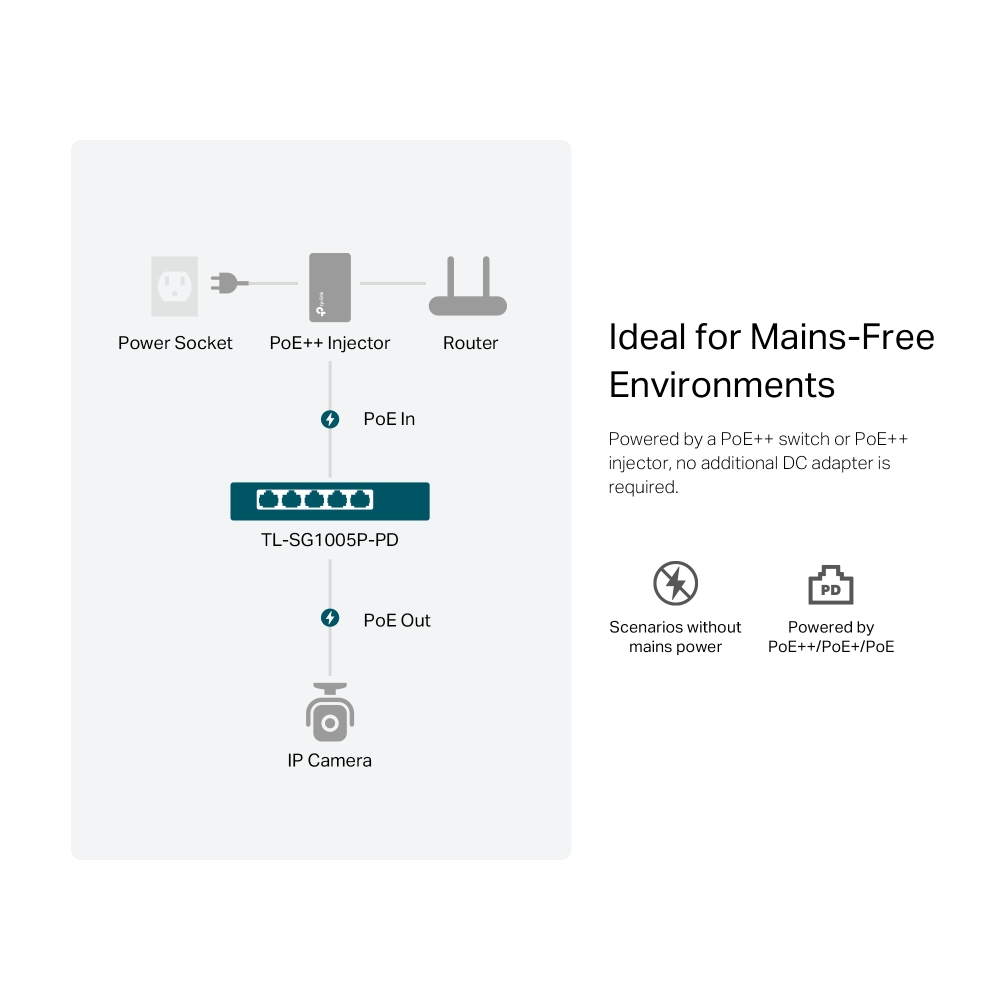

This fully PoE-powered switch eliminates the need for an external power adapter and offers a silent, reliable solution for small office or home setups.
Product Definition
An unmanaged desktop switch featuring one PoE++ input port and four PoE+ output ports—powered entirely via Ethernet cable.
Key Use Cases
- Extending IP surveillance cameras over long distances.
- Powering Wi-Fi access points without dedicated power cables.
- Supporting VoIP phones in compact network environments.
Usage Warnings
- Requires PoE power source; does not support AC/DC power adapters.
- Ensure connected PD devices comply with IEEE-802.3af/at standards.
Technical Specifications
| Feature | Details |
|---|---|
| Ports | 5× Gigabit RJ45: 1× PoE++ (in), 4× PoE+ (out) |

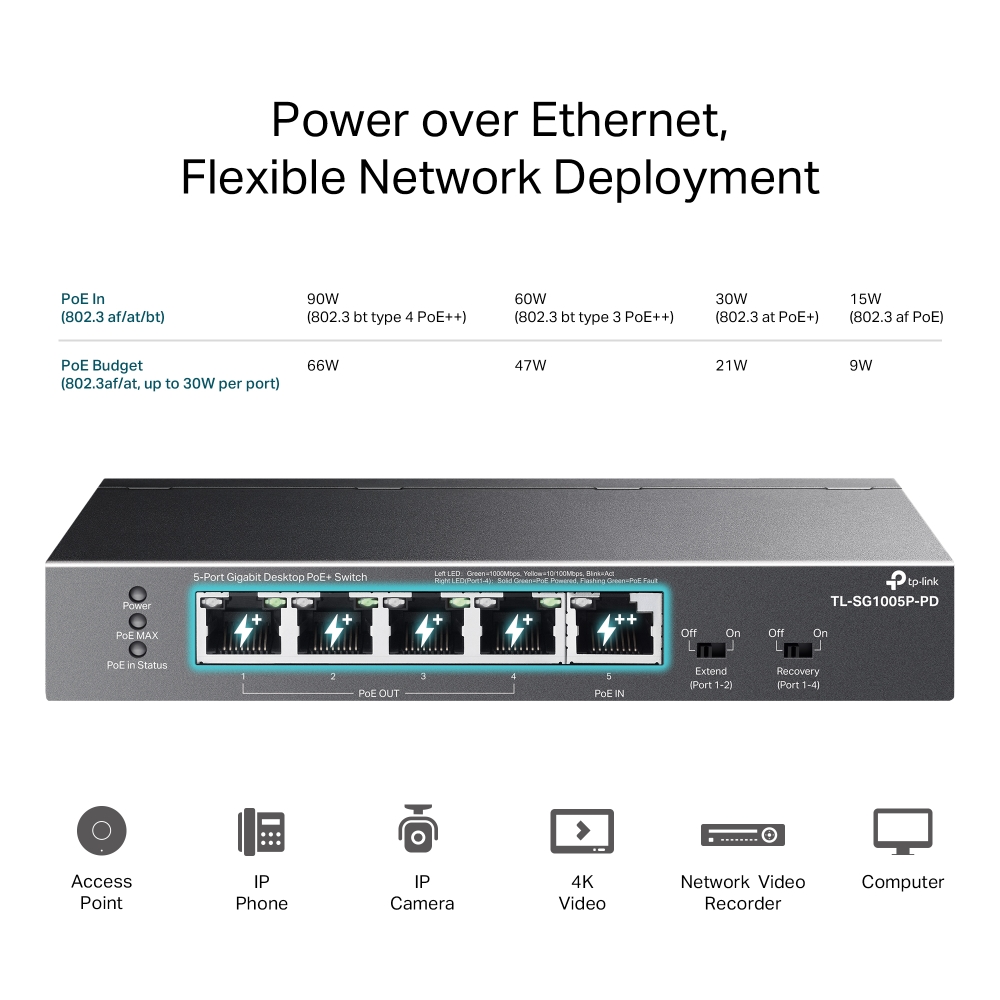

| PoE Budget | Up to 66 W when powered via 802.3bt Type 4; 47 W/21 W/9 W depending on PoE standard |

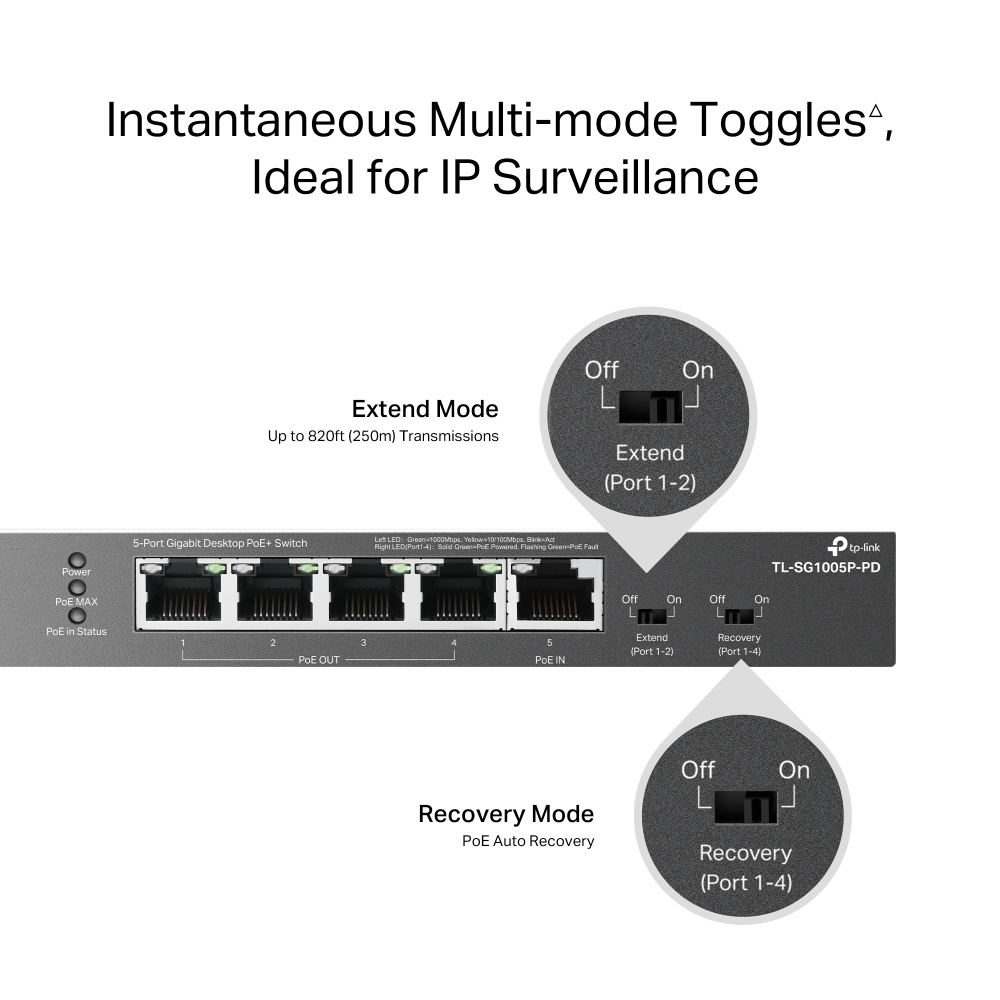

| Extend Mode | Supports up to 250 m PoE transmission |
| PoE Auto Recovery | Auto-reboots unresponsive PD devices |

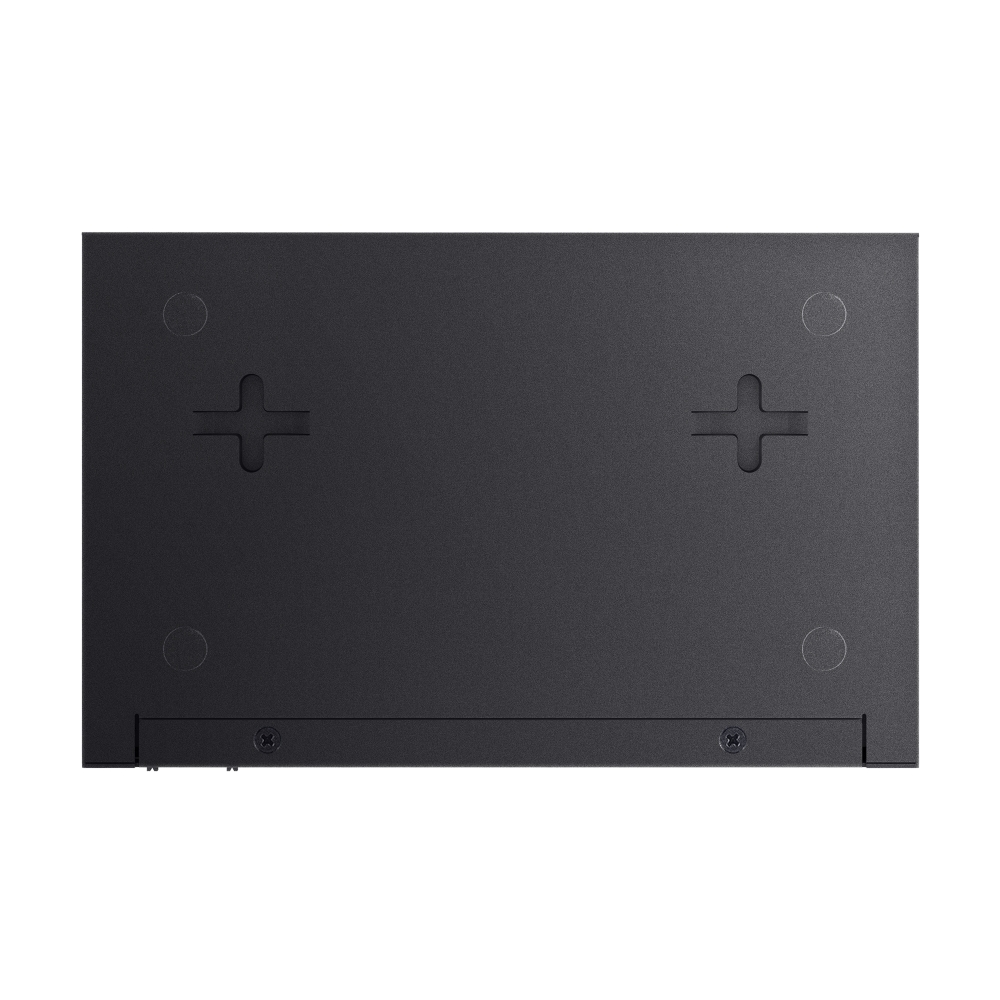

| Housing | Rugged metal chassis; desktop or wall-mountable |
| Operation | Fanless for silent operation |

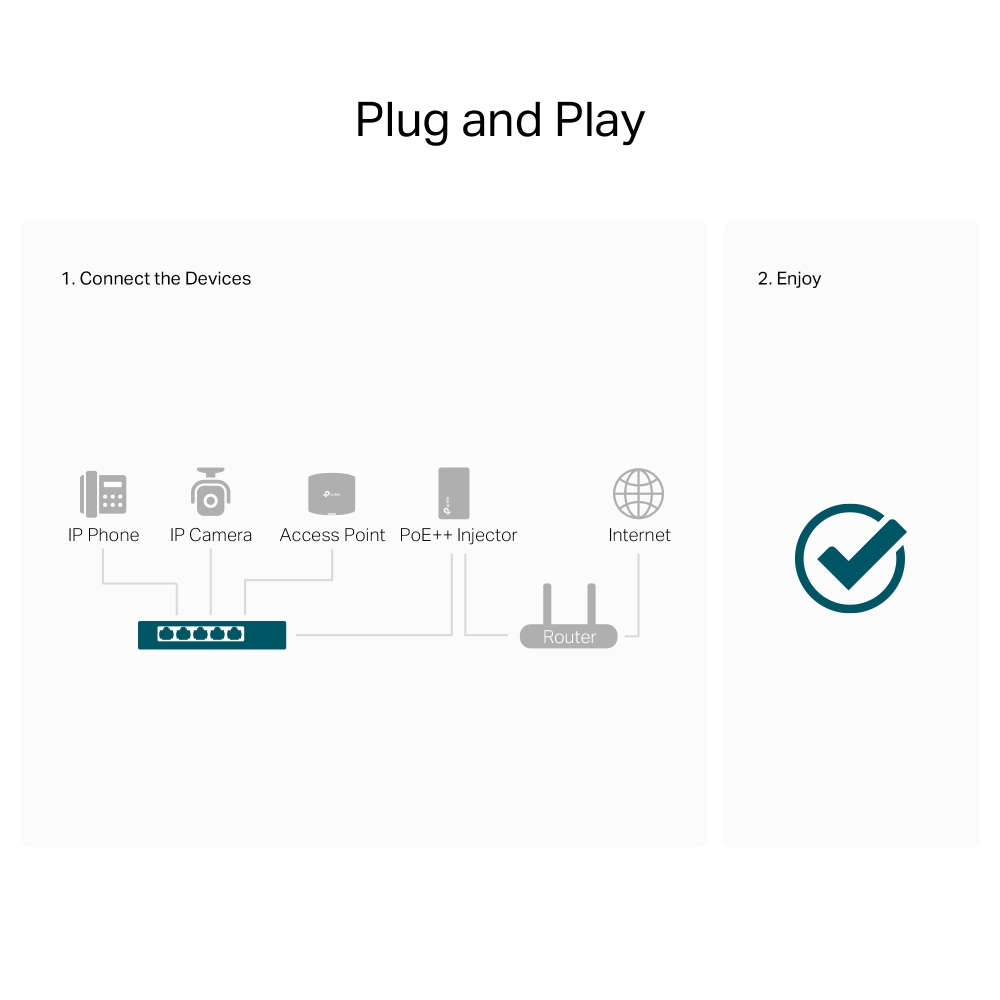

| Setup | Plug & Play; no configuration required |
| Standards | IEEE 802.3i/u/ab/af/at/bt/x, 802.1p QoS; Auto MDI/MDIX |
