Introduction

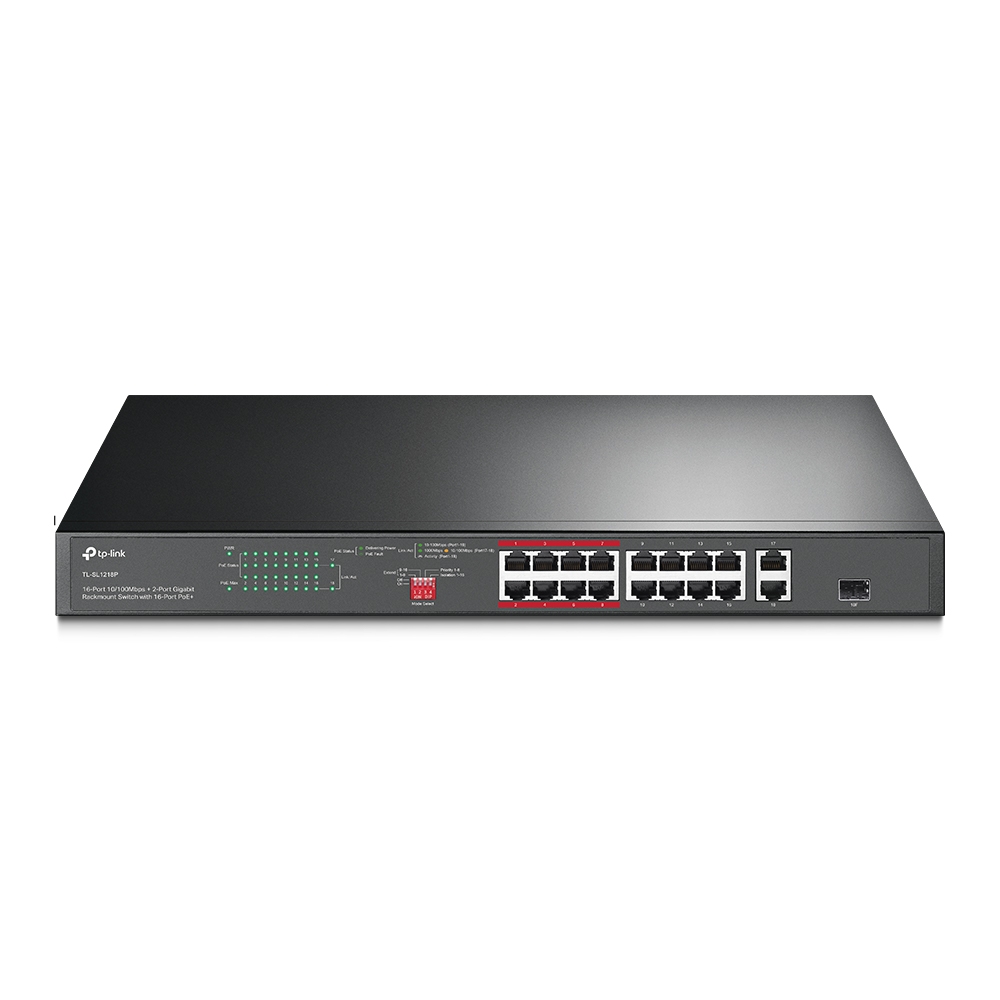

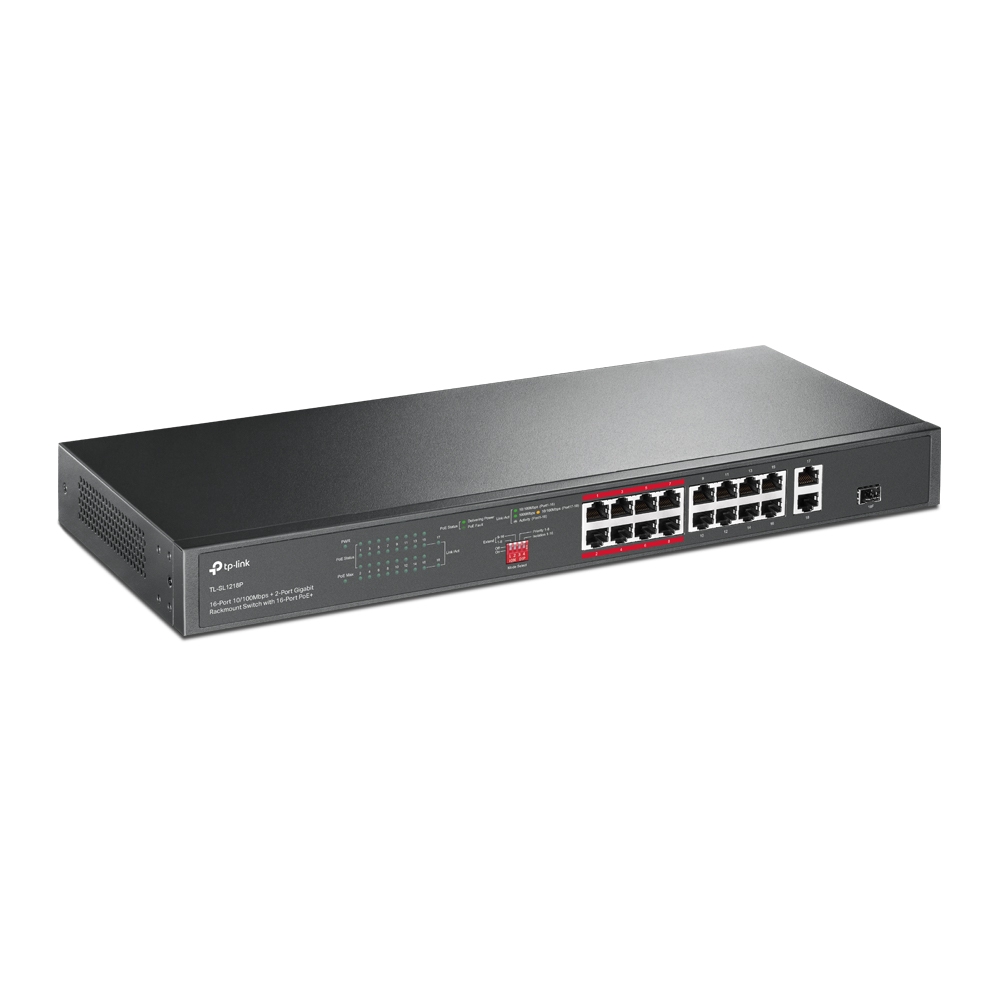

The TP-Link TL-SL1218P is an unmanaged PoE+ switch, offering seamless power and data delivery over a single Ethernet cable—ideal for streamlined network setups.

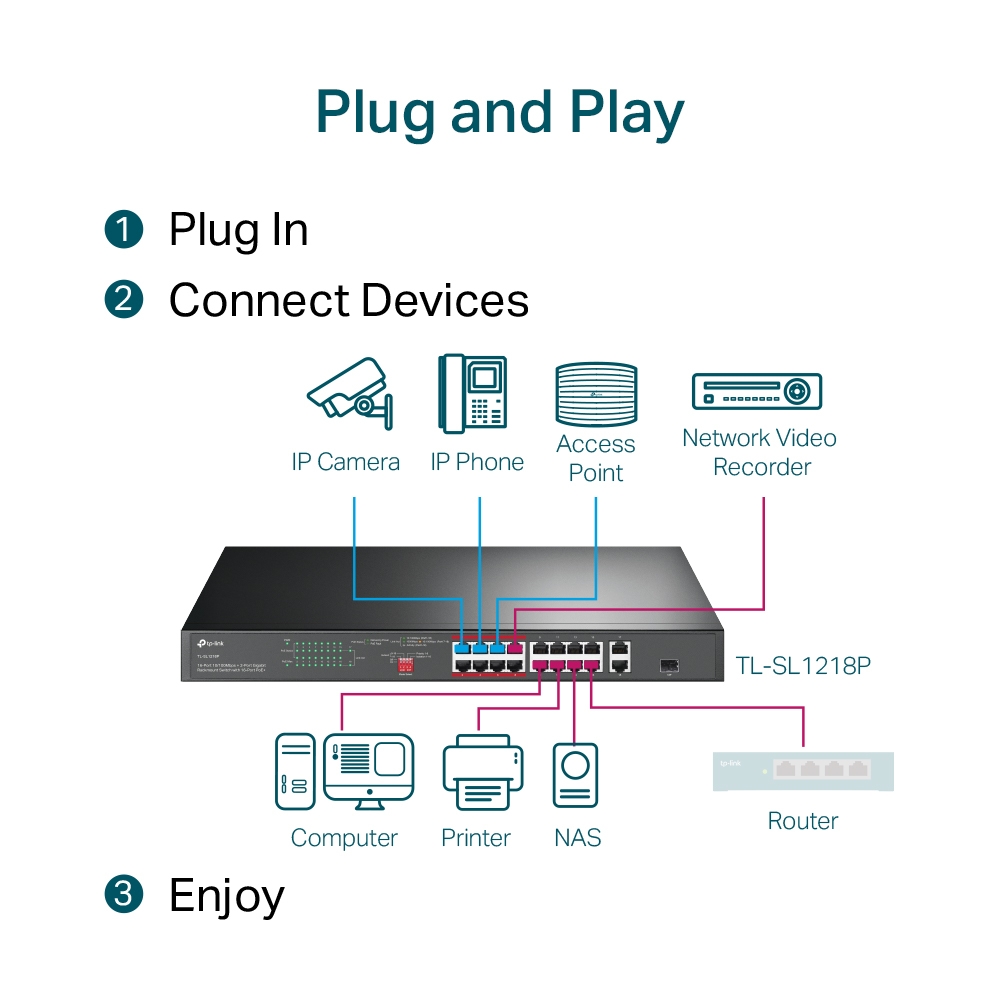

Key Applications
- IP surveillance systems
- Wireless access point deployments
- VoIP phone networks
- SMB LAN environments
Usage Warnings
- Ensure total PoE load doesn’t exceed 150 W (max 30 W per port).
- Extend Mode drops speed to 10 Mbps—okay for cameras but not for bandwidth-heavy uses.
- Active cooling fans require good ventilation—mount in a well-ventilated rack space.
Features and Benefits

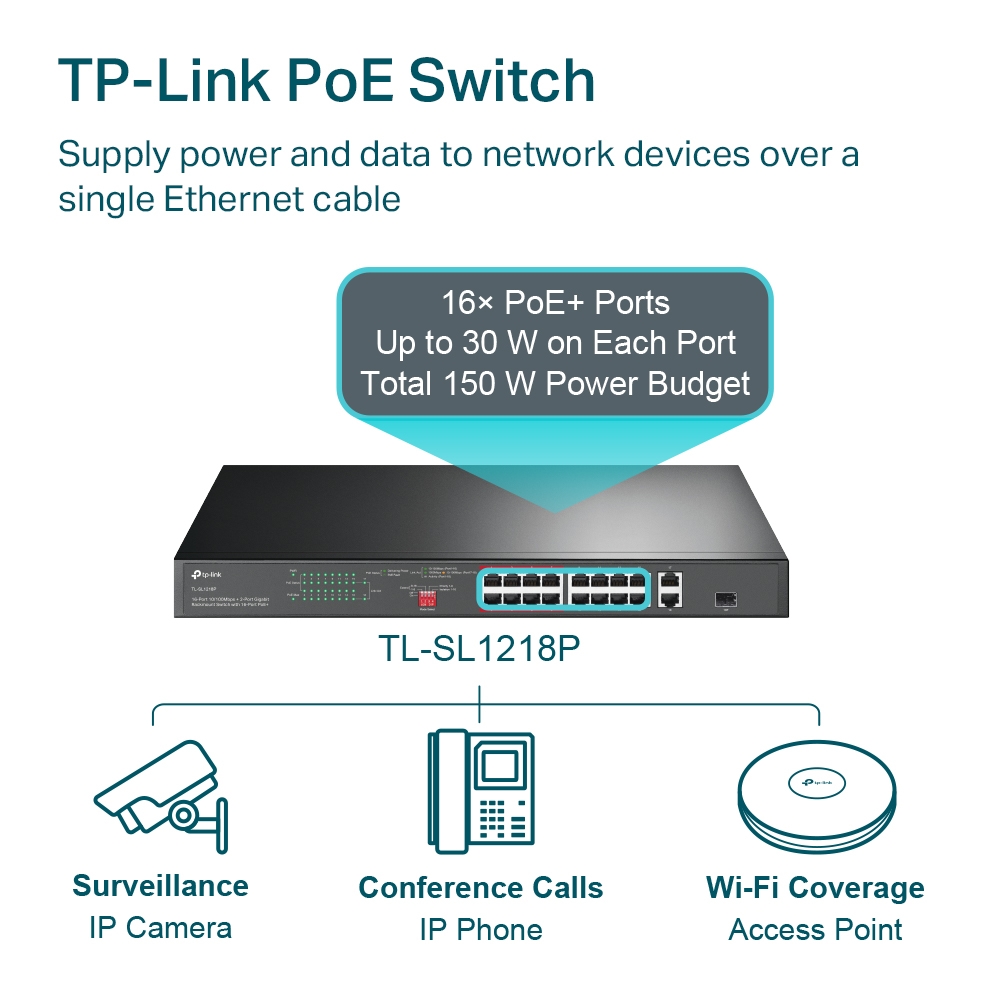

- 16× 10/100 Mbps PoE+ ports with 150 W power budget
- 2× Gigabit RJ-45 and 1× Combo SFP slot for flexible uplinks

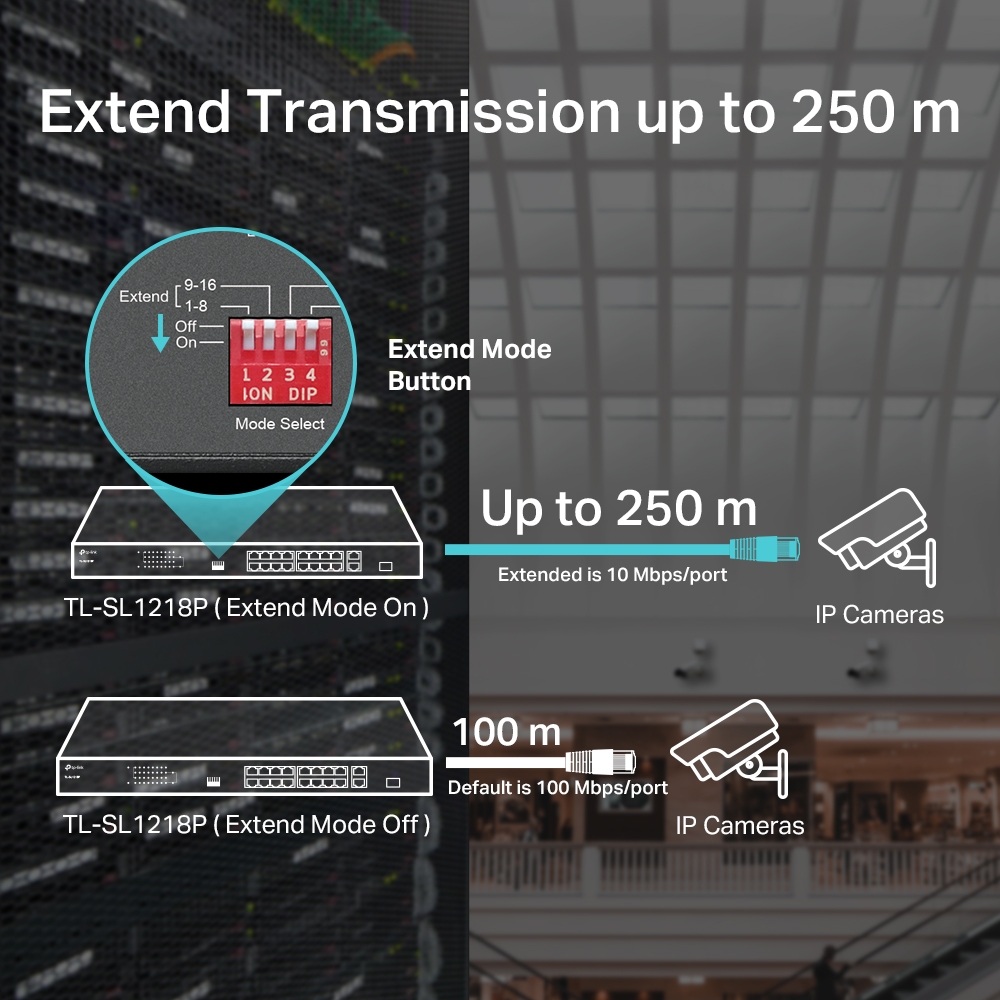

- Extend Mode supports up to 250 m transmission

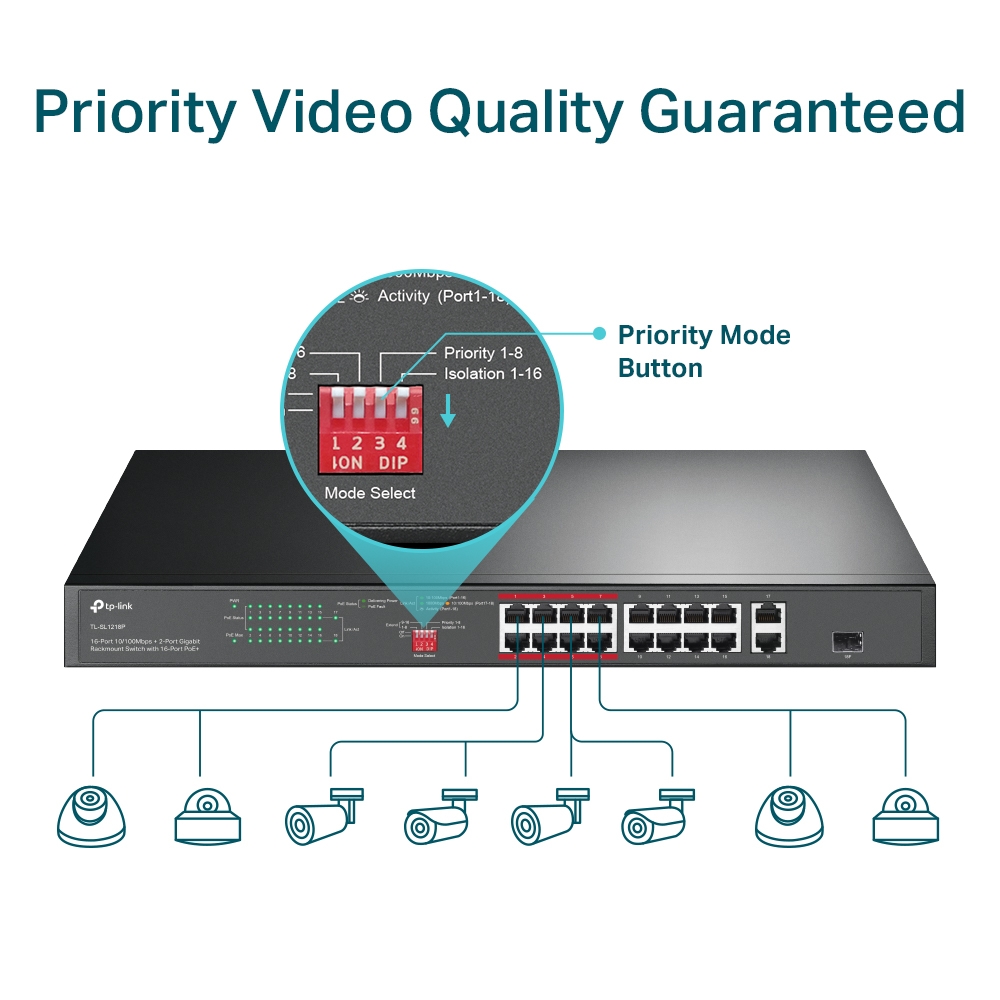

- Priority Mode ensures high video quality on ports 1–8
- Isolation Mode isolates port traffic for enhanced security
- PoE Auto-Recovery helps reboot connected devices when needed

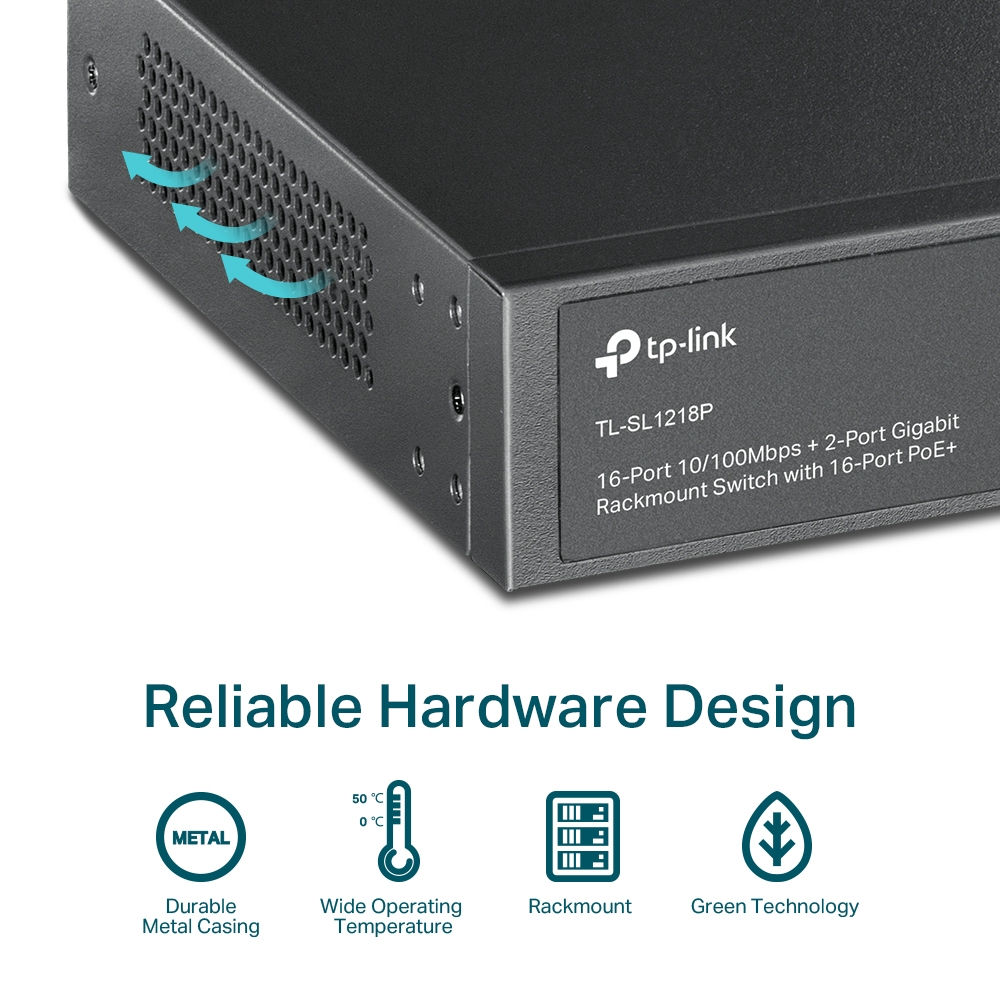

- Rackmount design with metal housing for demanding environments
Technical Specifications
| Specification | Details |
|---|---|
| Interfaces | 16× PoE+ 10/100 Mbps RJ-45, 2× 10/100/1000 Mbps RJ-45, 1× Combo Gigabit SFP |
| PoE Standard | 802.3af/at, up to 30 W per port, 150 W total |
| Special Modes | Extend (250 m), Priority, Isolation, PoE Auto-Recovery |
| Performance | 7.2 Gbps switching, 5.36 Mpps forwarding |
| Power & Cooling | 2 fans, 589 BTU/h heat, 35.6 dBA @50 cm noise |
| Dimensions | 440 × 180 × 44 mm |
