Product Overview

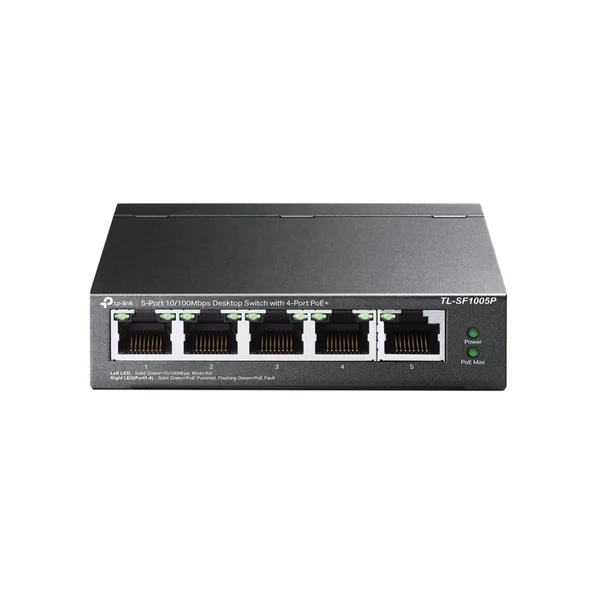

The TL-SF1005P from TP-Link is an unmanaged desktop Ethernet switch featuring 5 RJ45 10/100 Mbps ports, 4 of which support PoE+ (802.3af/at), delivering both data and power over a single cable for plug-and-play convenience.
Key Use Cases
- Powering IP cameras in locations where power outlets are scarce or inaccessible.
- Connecting IP phones and wireless access points without needing separate power adapters.
- Supporting high-quality video conferencing or surveillance with prioritized ports for latency-sensitive applications.
Usage Warnings
- Ensure each powered device does not exceed per-port PoE limits (up to 30 W) and the total PoE budget (67 W).
- Use high quality Ethernet cabling (CAT5e or higher), especially when using Extend Mode over long distances (up to 250 m).
- Avoid connecting devices that exceed power budget to prevent shutdown of lower priority ports.
Technical Specifications (Table)
| Specification | Details |
|---|---|
| Ports | 5 × RJ45 10/100 Mbps (4 × PoE+). |
| PoE Standard | IEEE 802.3af/at. |
| Power per Port | Up to 30 W. |
| Total PoE Budget | 67 W. |
| Extend Mode | Data and power transmission up to 250 m (10 Mbps). |
| Priority Mode | Ports 1–2 have higher priority for sensitive applications. |
| PoE Auto Recovery | Automatically reboots unresponsive powered devices. |
| Physical Build | Metal casing, fanless desktop design, wall-mountable. |
| Dimensions | 99.8 × 98 × 25 mm. |
| Max Power Consumption | 3.44 W (no PDs) up to 74.49 W (with full PoE load). |
